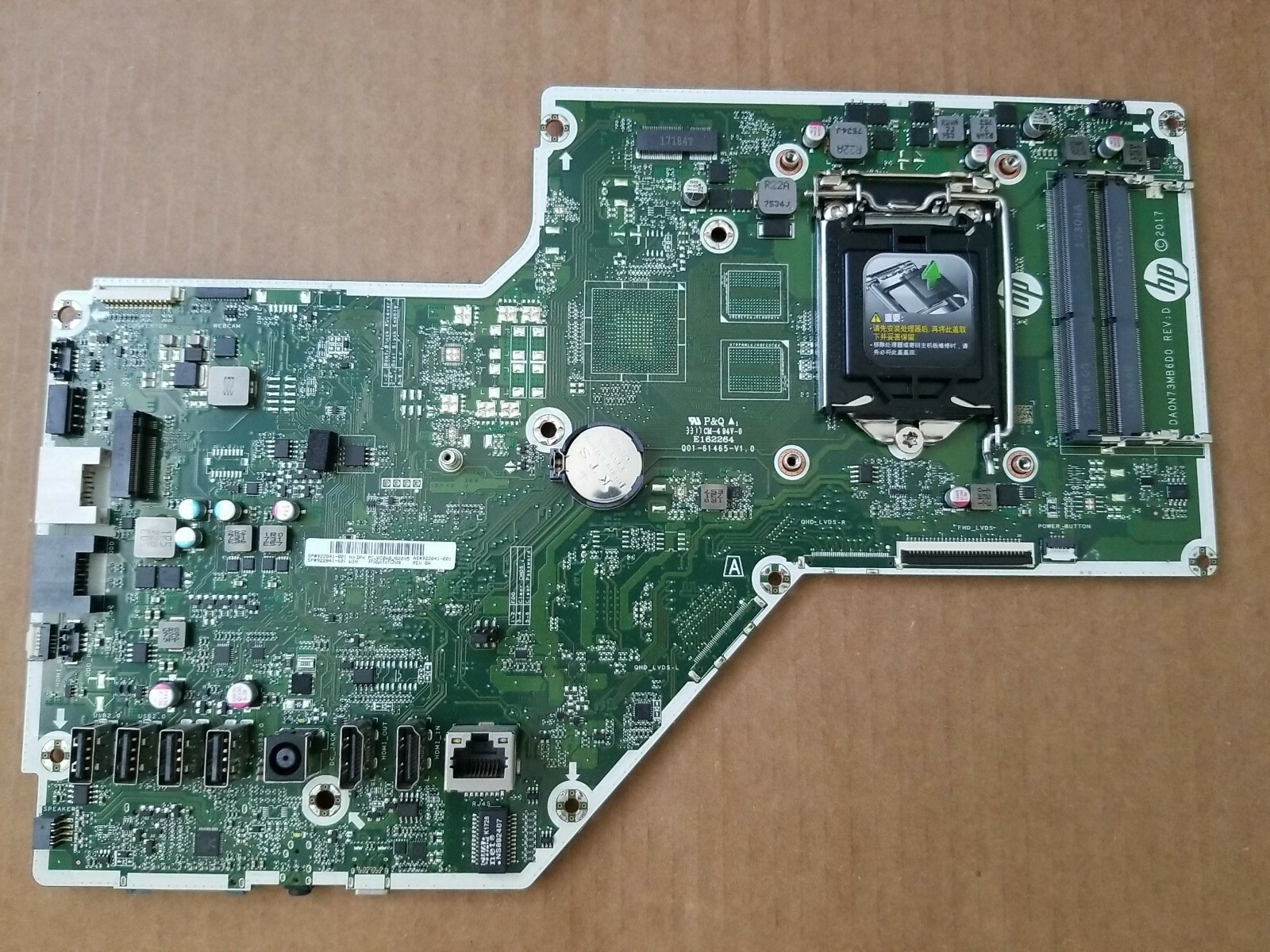

HP Desktop PCs - Motherboard Specifications, Klingon-UFFigure: Klingon-UF motherboard top viewFigure: Klingon-UF motherboard bottom viewMotherboard description

• HP name: Klingon-UF
• SSID: 838B

Form Factor

• Customized: 29.0x21.8 cm (11.4x8.6 in)

Chipset

• H270

Processor upgrade information

• TDP: 35 W
• Socket type: LGA 1151
• Motherboard supports the following processor upgrades:ProcessorTDPIntegrated GraphicsIntel Core i7-7700T (Kabylake) 2.9 GHz Quad Core35 WIntel HD Graphics 630Intel Core i5-7400T (Kabylake) 2.4 GHz Quad Core35 WIntel HD Graphics 630Intel Core i3-7100T (Kabylake) 3.4 GHz Dual Core35 WIntel HD Graphics 630Intel Pentium G4560T (Kabylake) 2.9 GHz Dual Core35 WIntel HD Graphics 610

Memory upgrade information

• Dual channel memory architecture
• Two DDR4 SODIMM (260-pin) sockets
• Supports PC4-19200 (DDR4-2400)
• Supports 2 GB, 4 GB, and 8 GB DDR4 SODIMMs
• Supports up to 4 GB on 32-bit systemsNOTE:32-bit systems cannot address a full 4.0 GB of memory.
• Supports up to 16 GB (unbuffered) on 64-bit systemsNOTE:Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

VideoIntegrated graphics

• Integrated Intel HD Graphics

AudioIntegrated audio

• Audio Codec: Realtek ALC3259
• Audio jack presence detection

NetworkLAN: 1000BASE-T

• Technology: Realtek RTL8111HSH
• Data transfer speeds: up to 10/100/1000 Mb/s
• Transmission standards: 1000BASE-T Gigabit Ethernet

Expansion SlotsNOTE:The configuration might vary depending on your model.

• One M.2 socket 1, 2230 type for WLAN
• One M.2 socket 3, 2280 type for SSD

I/O Ports and clear CMOS and clear passwordBack I/O portsBottom I/O portsClear CMOS and clear passwordFigure: Clear CMOS and clear password pins
