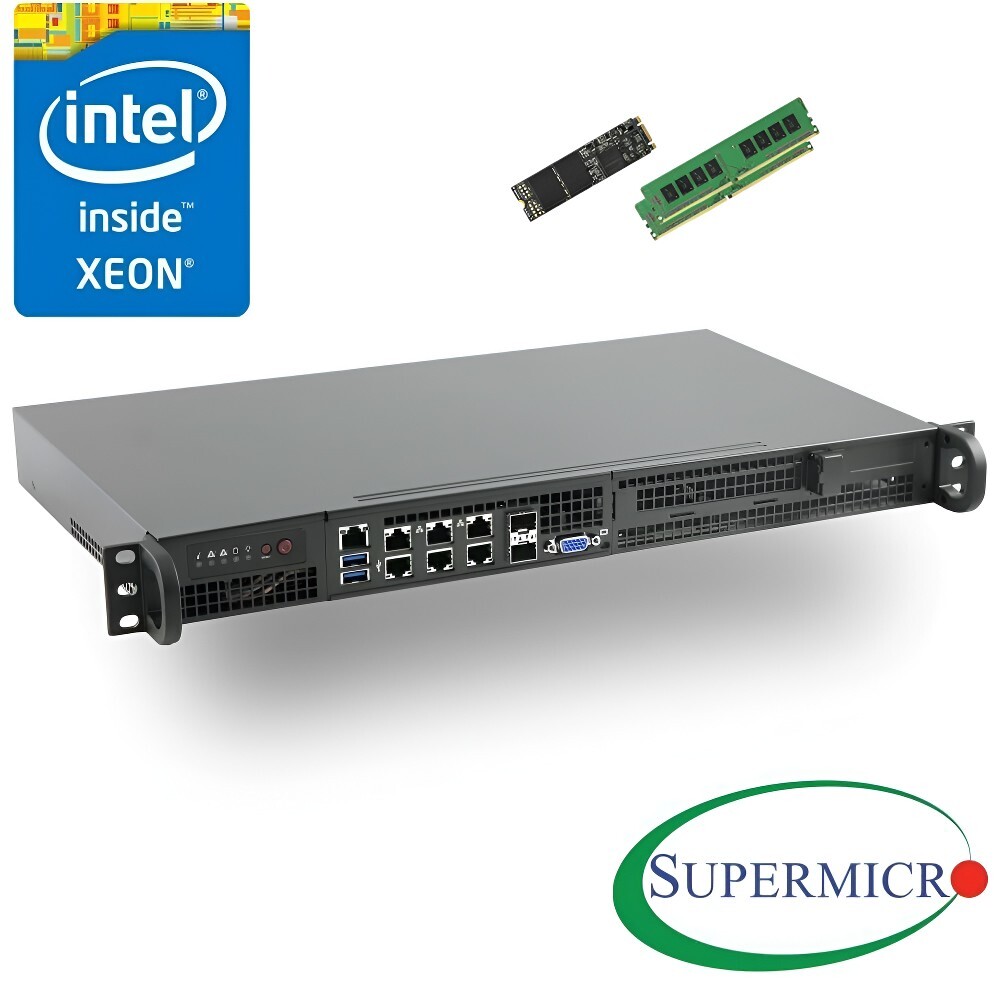

✅*Authorized Partner*Supermicro 5018D-FN8T 1U Rackmount,10GbE, SF+,64GB 512GB M.2

Key Features• Compact Design, • Cloud and Virtualization
• Network Appliance
• Embedded Application
• 7 year life cycle

1. Intel® Xeon® processor D-1518,
Single socket FCBGA 1667;
4-Core, 8 Threads, 35W

2. 1x 3.5" or 4x 2.5" drive bays with
bracket

3. 1x PCIe 3.0 x8 slot,
M.2 PCIe 3.0 x4, M Key 2242/2280/
22110, Mini-PCIe with mSATA support

4. Up to 128GB ECC RDIMM DDR4
2133MHz or 64GB ECC/non-ECC
UDIMM in 4 sockets

5. Dual 10G SFP+ and Six 1GbE LAN

6. I/O: 2x USB 3.0, VGA

7. Passive CPU heat sink and
3x 40mm chassis fans

8. DOM power connector

9. 200W Low-noise power supply w/ PFC

Product SKUsSYS-5018D-FN8T

• SuperServer 5018D-FN8T (Black)

Motherboard
Super X10SDV-TP8FProcessor/CacheCPU

• Intel® Xeon® processor D-1518,
  2.2GHz; CPU TDP support 35W
• FCBGA 1667

Cores / Cache

• 4 Cores, 8 Threads / 6MB

System MemoryMemory Capacity

• 4x DDR4 DIMM sockets
• Supports up to 128GB DDR4 ECC RDIMM
• Supports up to 64GB DDR4 ECC/non-ECC UDIMM

Memory Type

• 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors
  (using ECC memory)

On-Board DevicesSATA

• SoC controller for SATA3 (6Gbps) ports

Network Controllers

• Dual 10G SFP+ from D-1500 SoC
• Quad 1GbE with Intel I350-AM4
• Dual 1GbE with Intel I210

IPMI

• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Dedicated RJ45 IPMI LAN port

Graphics

• BMC integrated ASPEED AST2400

Input / OutputSATA

• 4x SATA3 (6Gbps) ports

LAN

• 2x 10G SFP+ ports
• 6x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 2x USB 3.0 ports (front)

DOM

• 1x SATA DOM (Disk on Module) power connector

VGA

• 1x VGA Port

Others

• TPM 2.0 header

ChassisForm Factor

• 1U Rackmount

Model

• 1.7" (43mm)

Width

• 17.2" (437mm)

Depth

• 9.8" (249mm)

Weight

• Net Weight: 8 lbs (3.63 kg)
• Gross Weight: 12 lbs (5.44 kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Information LED (temp., status)

Expansion SlotsPCI-E

• 1x PCIe 3.0 x8 slots
• M.2 PCIe 3.0 x4, M Key 2242/2280/22110
• Mini-PCIe with mSATA support

Drive BaysHDD

• 1x 3.5" or 4x 2.5" fixed drive bays with bracket

System CoolingFans

• Passive Heatsink, 40mm chassis fan

Power Supply200W Low Noise AC-DC power supply with PFCAC Voltage

• 100 - 240V, 50-60Hz, 2.6 Amp Max

+5V

• 8.0 Amp (max.)

+5V standby

• 2.0 Amp (max.)

+12V

• 16 Amp (max.)

-12V

• 0.5 Amp (max.)

+3.3V

• 8.0 Amp (max.)

Certification
Gold Certified
System BIOSBIOS Type

• 128Mb SPI Flash with AMI BIOS

BIOS Features

• PCI 3.0
• ACPI 5.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.8
• UEFI 2.4
• RTC (Real Time Clock) Wakeup

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 40°C (50°F to 104°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)
