Gigabyte MZ73-LM1 Rev.3.x 3.x）Support AMD EPYC 9005 SP5 E-ATX Server For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

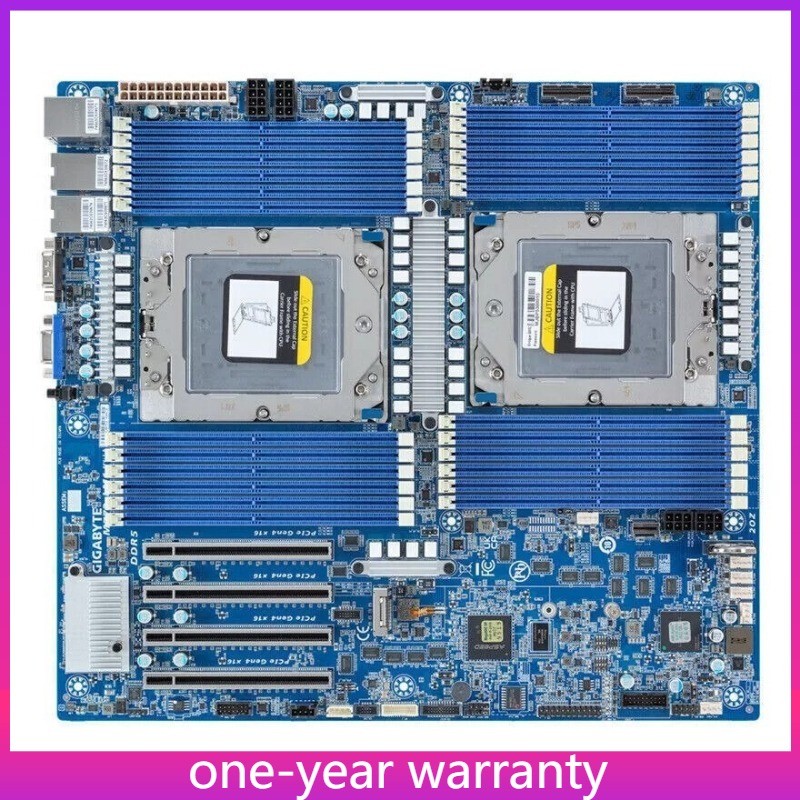

Gigabyte MZ73-LM1 Rev.3.x 3.x）Support AMD EPYC 9005 SP5 E-ATX Server

Price: CN $1378.00

Store CategoriesStore Categories

Other

Gigabyte MZ73-LM1 Rev.3.x 3.x）Support AMD EPYC 9005 SP5 E-ATX Server

Product Description

System on ChipMemory Type24 x DIMM slots
DDR5 memory supported
12-Channel memory per processorAMD EPYC™ 9005:
RDIMM: Up to 6000 MT/sAMD EPYC™ 9004:
RDIMM: Up to 4800 MT/sIntegrated Network2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
- Support NCSI function1 x 10/100/1000 Mbps Management LANIntegrated Video ControllerIntegrated in ASPEED® AST2600
- 1 x VGA portIntegrated Audio ControllerN/AStorage InterfaceSlimSAS:
2 x SlimSAS 8i for 4 x Gen4 NVMe or 16 x SATA, from CPU_1
1 x SlimSAS 4i for 4 x SATA, from CPU_0M.2:
1 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0Support RAID FunctionN/APCIe Expansion SlotsSlot_4: PCIe x16 (Gen4 x16), from CPU_0
Slot_3: PCIe x16 (Gen4 x16), from CPU_0
Slot_2: PCIe x16 (Gen4 x16), from CPU_1
Slot_1: PCIe x16 (Gen4 x16), from CPU_12 x SlimSAS 8i (PCIe Gen4 x8 or SATA), from CPU_1 [1][1] The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS.On-Board Connector1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
3 x 6-pin ATX 12V power connectors
2 x CPU fan headers
4 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
2 x SlimSAS 8i connectors
1 x SlimSAS 4i connector
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM headerRear I/O Connectors2 x USB 3.2 Gen1 ports (Type-
