• Mukilteo Enterprise MainBoard / ServerBoard
• Best Single CPU Dual Core Server

Key Features
1. Intel® Pentium® D, Pentium® 4
Extreme Edition, Pentium 4, Pentium
Extreme Edition & Celeron D
in LGA775 Package(FSB 1066/800/533) 2. Intel® E7230 (Mukilteo) Chipset 3. Up to 8GB unbuffered ECC / non-ECC,
DDR2 667/533/400 SDRAM 4. 1x Intel® 82573L PCI-e Gigabit LAN
1x Intel® 82573V PCI-e Gigabit LAN
6x USB 2.0 ports 5. Built-in SATA Controller
4x SATA (3Gb/s) Drive Support 6. 1 (x4) PCI-Express
2x 64-bit 133MHz PCI-X
2x 64-bit 100MHz PCI-X 7. On board ATI Rage XL VGA 8. IPMI 2.0 (with 3rd LAN optional)
Links & Resources Tested Memory List Motherboard Manual Update Your BIOS Download the Latest Drivers and Utilities Product SKUs MBD-PDSME-O

• PDSME (Standard Retail Pack)

MBD-PDSME-B

• PDSME (Bulk Pack)

Physical Stats Form Factor

• ATX

Dimensions

• 12" x 9.6", (30.5cm x 24.4 cm)

Processor/Cache CPU

• Single LGA775 ZIF Socket
• Supports an Intel® Pentium® D (Smithfield Dual Core) processor
• Supports an Intel® Pentium® Extreme Edition processor
• Supports an Intel® Pentium® 4 (Prescott) processor
• Supports an Intel® Pentium® 4 Extreme Edition processor
• Supports an Intel® Celeron® D processor with 256KB L2 Cache
• Hyper-Threading (HT) capable
• 2MB / 1MB L2 Cache
• Will not support E2000 processors

System Bus

• 1066 / 800 / 533 MHz system bus

System Memory Memory Capacity

• Four 240-pin DIMM sockets
• Supports up to 8 GB of unbuffered ECC / non-ECC DDR2 667/533/400MHz memory (Single / Dual Channel)

Memory Type

• DDR2 667/533/400MHz unbuffered ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs

DIMM Sizes

• 256 MB, 512 MB, 1 GB, 2GB

Memory Voltage

• 1.8V only

On-Board Devices Chipset

• Intel E7230 (Mukilteo) chipset
• ICH7R + PXH-V + Intel® 82573V

Serial ATA

• Intel® ICH7R SATA2 (3 Gbps) controller built-in
• Intel:
  RAID 0, 1, 5, 10 support (Windows Only)
• Adaptec:
  RAID 0 (Two, three, four drives only)
  RAID 1 (Two hard drives only)

IPMI

• 2U, 3U, 4U support for Intelligent Platform Management Interface v.2.0, Low Profile (Optional: AOC-LPIPMI-LANG)
• RMM (Remote Management Module)
• (Card not included)
• 3rd LAN Optional

Network Controllers

• 1x Intel® 82573V Gigabit PCI-Express Ethernet
• 1x Intel® 82573L Gigabit PCI-Express Ethernet
• Supports 1000BASE-T, RJ45 output

VGA

• On-board ATI Rage XL (8MB) graphics

Super I/O

• Winbond 83627EHF chip

Clock Generator

• CK410

Input / Output Serial ATA

• Four Serial ATA ports (3 Gbps performance)
• Four SATA hard drives supported

IDE

• One EIDE channel supports up to two UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100

Floppy

• 1 Floppy controller; 1.44 MB

LAN

• 2x RJ45 LAN ports

USB

• 6x USB 2.0 compliant / 1.1 compatible
• 2 rear ports, 4 internal headers
• 2 in front (FUCI), 2 in rear

VGA

• 1x VGA port ( only)

Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Ports

• 1x Fast UART 16550 serial port
• 1x Fast UART 16550 serial header

Parallel Port

• 1x ECP / EEP Parallel Header

Chassis ( Optimized for PDSME ) Mid-Tower

• SC733T-645
• SC733i-465

Important Note

• For a general system, a 450W (minimum) ATX12V power supply [8-pin +12V AND 24-pin is recommended to assure system stability].

Expansion Slots PCI-Express

• 1 (x4) PCI-e slot

PCI - X

• 2x 64-bit 133MHz PCI-X (3.3V) slots
• 2x 64-bit 100MHz PCI-X (3.3V) slots

System BIOS BIOS Type

• 8Mb Flash EEPROM with Phoenix BIOS®

BIOS Features

• Plug and Play (PnP)
• DMI 2.3 support
• PCI 2.2
• ACPI 1.0
• Hardware BIOS Virus protection
• SMBIOS 2.3
• USB Keyboard support
• PCI-X - 1.0

Management Software

• Optional IPMI (Intelligent Platform Management Interface) 2.0
• SuperDoctor® III
• Watch Dog
• NMI

Power Configurations

• ACPI/APM Power Management
• Main Switch Override Mechanism
• Wake-On-Ring (WOR) header
• Wake-On-LAN (WOL) header
• Keyboard Wakeup from Soft-Off
• CPU Fan auto-off in sleep mode
• Power-on mode control for AC power loss recovery
• Internal/External modem remote ring-on

PC Health Monitoring Voltage

• Monitors for CPU Cores (+1.8V, +3.3V, +5V, ±12V, +5V Standby)
• CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
• Adjustable CPU clock frequency ratio settings (via BIOS)

FAN

• Total of five 4-pin fan headers
• 5x fans with tachometer monitoring
• Status monitor with firmware / software speed control
• Status monitor for on/off control
• Support 3-pin fans (with speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connector

Temperature

• Monitoring for CPU and chassis environment
• CPU Thermal Trip support
• Thermal Monitor (TM2) Support

LED

• CPU / System Overheat LED
• +5V standby alert LED
• Suspend-state indicator LED

Other Features

• Chassis intrusion detection
• Chassis intrusion header

Operating Environment Environmental Spec.

• Operating Temperature: 10°to 35°C (50°to 95°F)
• Non-operating Temperature: -40°to 70°C (-40°to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)

OS Compatibility
• Please see our OS Compatibility Chart Regulatory FCC

• Passed to meet FCC standard requirement

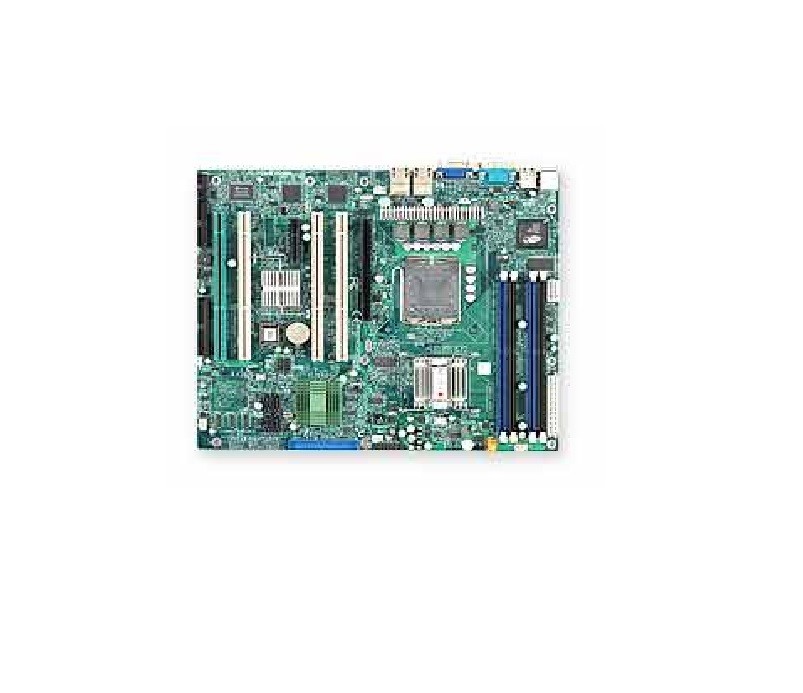

Part Number Qty Description PDSME MBD-PDSME 1 PDSME Motherboard
