BRAND NEW

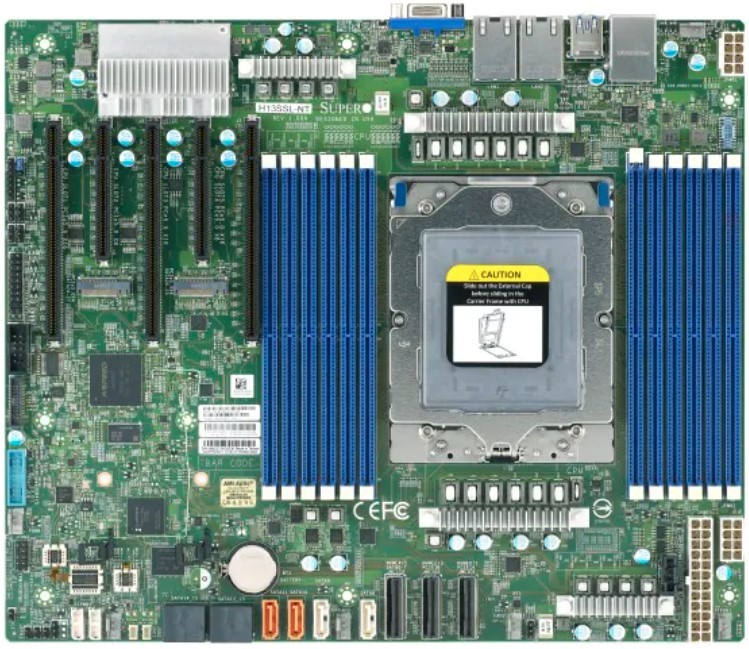

.Supermicro H13SSL-NT (MBD-H13SSL-NT-O) Mainboard (Retail)

Product details

MPN: MBD-H13SSL-NT-O

Key Features

1. AMD EPYC 9004 series Processors
2. System on Chip
3. Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots
4. 3 PCIe 5.0 x16 2 PCIe 5.0 x8
5. 2x 10GBase-T LAN Ports via Broadcom BCM57416
6. Up to 6 USB 3.0 ports(4 rear + 2 via header)
7. 8 SATA3
8. ASPEED AST2600 BMC graphics
9. 6 PWM 4-pin Fans with tachometer status monitoring
10. M.2 Interface: 2 PCIe 4.0 x4 M.2 Form Factor: 2280, 22110

MBD-H13SSL-NT Physical Stats Form Factor

• ATX

Dimension

• 12" x 10.1" (30.48cm x 25.65cm)

Processor CPU

• AMD EPYC 9004 series Processors
• Single Socket SP5 supported, CPU TDP supports Up to 400W TDP

Core

• Up to 96/192

System Memory Memory Capacity

• 12 DIMM slots
• Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MHz

Memory Type

• 4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)

DIMM Sizes

• 16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB

Memory Voltage

• 1.1V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices Chipset

• System on Chip

Network Controllers

• Dual LAN with Broadcom BCM57416 10GBase-T

Input / Output SATA

• 8 SATA3 (6Gbps) port(s)

LAN

• 1 RJ45 Dedicated IPMI LAN port

USB

• 6 USB 3.0 port(s) (4 USB; 2 via header)

Video Output

• 1 VGA port(s)

Serial Port

• 1 COM Port(s) (1 header)

TPM

• 1 TPM Header

Others

• 1 MCIO (PCIe 5.0 x8/SATA3) Port(s)
• 2 MCIO (PCIe 5.0 x8) Port(s)

Expansion Slots PCIe

• 3 PCIe 5.0 x16 (in x16 slot),
• 2 PCIe 5.0 x8

M.2

• M.2 Interface: 2 SATA/PCIe 4.0 x4
• Form Factor: 2280/22110
• Key: M-Key

System BIOS BIOS Type

• AMI 32MB SPI Flash EEPROM

BIOS Features

• ACPI 6.4
• SMBIOS 3.5 or later
• UEFI 2.8
• Plug and Play (PnP)
• USB Keyboard support

Management Software

• SuperDoctor 5, SPM, SUM, SSM, Watchdog, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, IPMI 2.0, KVM with dedicated LAN

PC Health Monitoring Voltage

• VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby

LED

• UID/Remote UID
• BMC/IPMI Heartbeat LED

Other Features

• RoT

FAN

• 6x 4-pin fan headers (up to 6 fans)

Operating Environment Operating Temperature Range

• 10C - 35C (50F - 95F)

Non-Operating Temperature Range

• -40C - 70C (-40F - 158F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non Operating Relative Humidity Range

• 5% - 95% (non-condensing)
