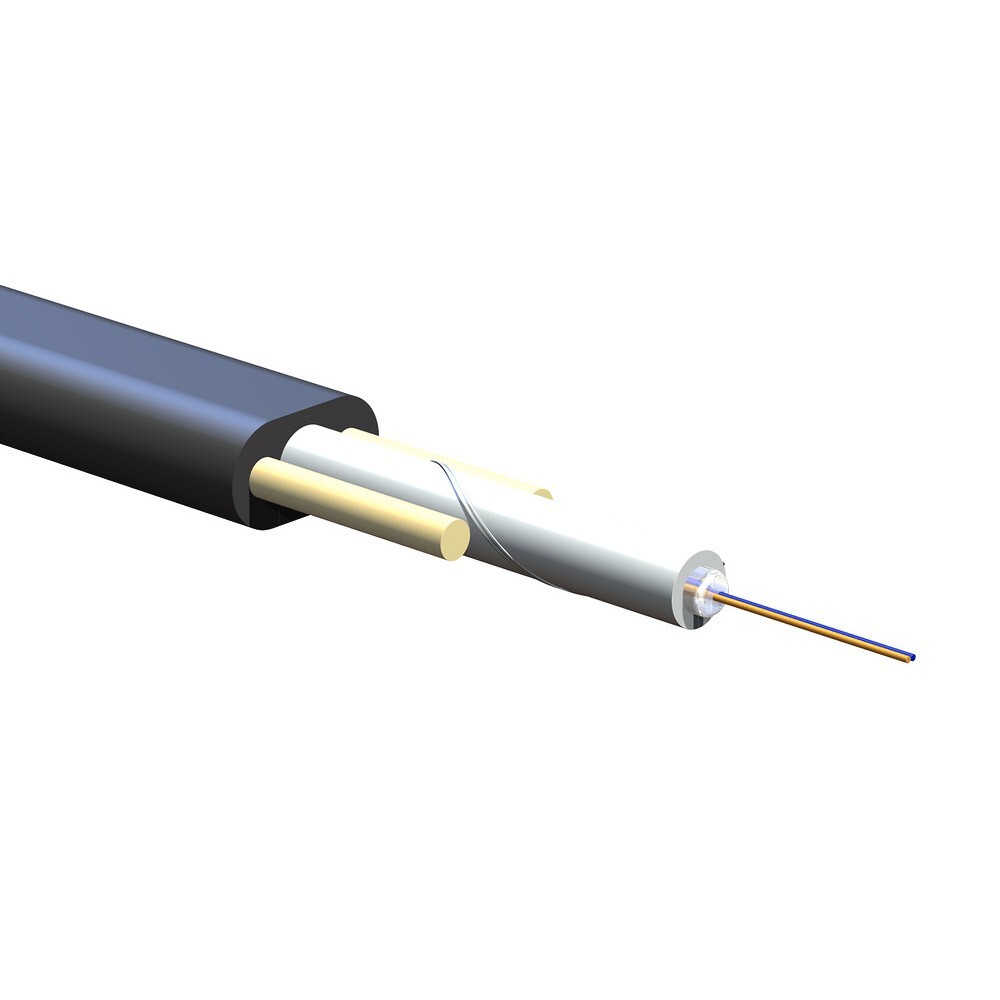

1000' 002EB4-14101A20 2 Fiber Single-mode (OS2) Single-Tube Gel-Filled Cable Click Thumbnails to EnlargeDESCRIPTION
• Corning 002EB4-14101A20 SST-Drop dielectric cables offer the ease of installation of standard ALTOS cables in an easy-access, single-tube design. The dielectric version eliminates any bonding and grounding requirements. The cables are RDUP (RUS) listed and offer exceptional crush resistance.
FEATURES AND BENEFITS
• Flexible, craft-friendly buffer tubes ; Facilitate easy routing in closures
• SZ-stranded, loose tube design ; Isolates fibers from installation and environmental rigors and facilitates mid-span access
• Dielectric central strength member ; No preferential bend and requires no bonding or grounding
• Polyethylene jacket ; Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
STANDARDS
• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: USDA Rural Development Programs
ENVIRONMENTAL CONDITIONS
• Temperature Range, Installation: -30°C to 70°C (-22°F to 158°F )
• Temperature Range, Operation: -40°C to 70°C (-40°F to 158°F )
• Temperature Range, Storage: -40°C to 70°C (-40°F to 158°F )
CABLE DESIGN
• Fiber Count: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Polyethylene (PE)
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Buffer Tube Diameter: 3 mm (0.12 in)
• Fiber Coloring: Blue, Orange
• Color Code Standards: Telcordia
MECHANICAL SPECIFICATIONS
• Maximum Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Maximum Tensile Strength, Short-Term: 1350 N (303.49 lbf)
• Minimum Bend Radius Operation: 80 mm (3.15 in)
• Nominal Outer Diameter: 8.1 mm x 4.5 mm (0.32 in x 0.18 in )
OPTICAL CHARACTERISTICS
• Fiber Code: E
• Fiber Name: Single-mode (OS2)
• Fiber Type: Single-mode
• Performance Option Code: 01
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Category: G.652.D
PRODUCT SPECIFICATIONSFiber Count 2Cable Type Single TubeEnvironment OutdoorProduct Type Self-Supporting, Figure-8Fiber Category Single-mode (OS2)Weight (Lbs/1000ft) 20Shipping
