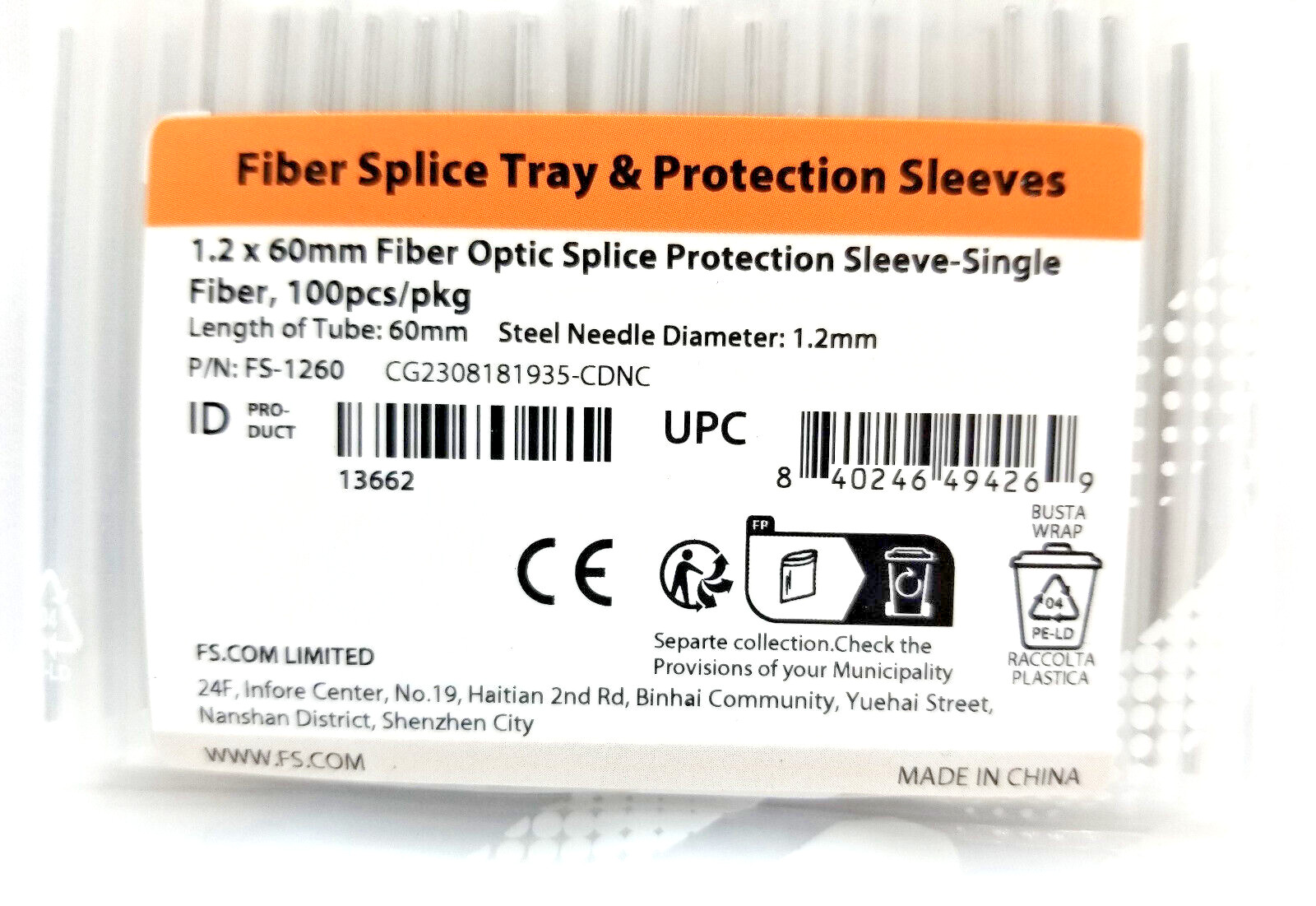

100pc 60 x 1.2mm (3.75 OD) Fiber Optic Splice Protector Sleeves Tube Pigtail
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
100pc 60 x 1.2mm (3.75 OD) Fiber Optic Splice Protector Sleeves Tube Pigtail
Price: US $10.95
FS 1.2 x 60mm Fiber OpticSplice Protection SleeveSingle Fiber100 pcs/pkg
This products is made up of cross linked polyolefin heat-shrinkable tubes, hot melt tubes and Stainless steel needle.
Tube length: 60mmSteel Needle Dia: 1.2mm
Outer Tube Dia: 3.75mm
Inner Tube Dia: 2.2mm
After Recover Dia: 2.6mm
Working Temp: -55 to 100°C (-67 to 212°F)
Tensile Strength: 18MPa
Dielectric Constant: 2.5
Elongation at Break: 700%
Longitudinal Change: ±5%
Density: 0.94g/m³
Eccentricity: 105
Dielectric Str: 25kV/mm
Volume resistance: 1015Ω
Minimum Shrink Temp: 120°C (248°F)
Minimum Fully Recovery Temp: 100°C (212°F)
