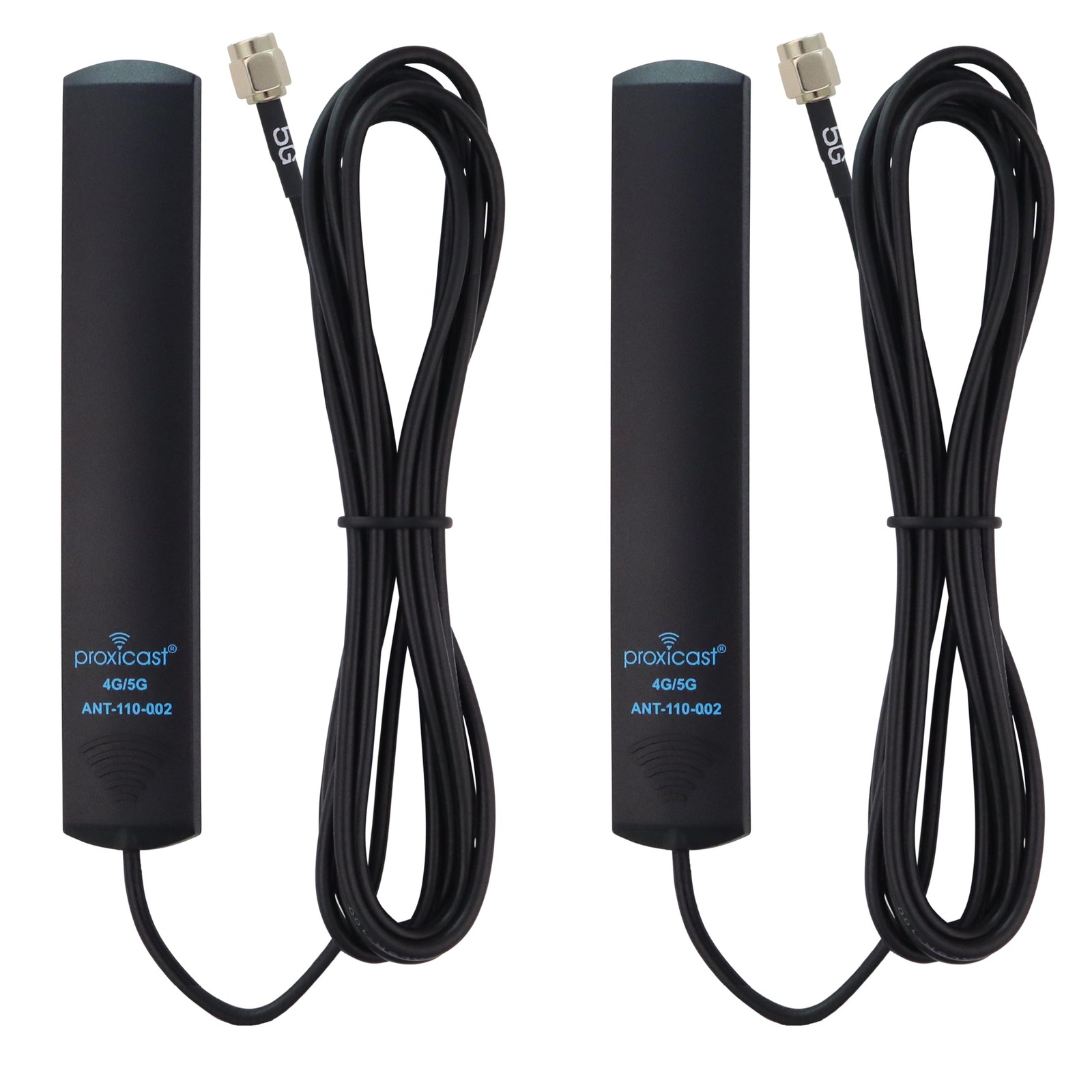

4G / 5G 3.5 dBi Omni-Directional Adhesive Mount Low Profile Flat Stick-On Antenna with 6.6 ft Coax & SMA Male - Compatible with Cradlepoint, Digi, MoFi, Pepwave and More (ANT-110-002-2PK)
4G / 5G 3.5 dBi Omni-Directional Adhesive Mount Low Profile Flat Stick-On Antenna with 6.6 ft Coax & SMA Male - Compatible with Cradlepoint, Digi, MoFi, Pepwave and More (ANT-110-002-2PK)
Description
2 Pack of Identical Antennas
The 4G/5G Universal Adhesive Blade is a unique cellular dipole antenna providing medium-gain on all 3G, 4G & Sub-6 5G frequency bands currently in use by Verizon, AT&T, T‑Mobile, Rogers, Bell, Telus and most other operators worldwide.
Stay in touch with remote equipment like vending machines and kiosks; Get a solid connection and more speed for your cellular modem or router from manufacturers such as Cisco, Cradlepoint, Digi, MoFi, Pepwave, , Sierra Wireless, Red Lion and many others that have SMA external antenna jacks.
This is an excellent general purpose cellular antenna, suitable for applications such as PLC cabinets, meter housings, equipment sheds, or other locations requiring an inconspicuous low-profile antenna. Can also be mounted on buses, vans, trucks or other vehicles.
The flat “blade-shaped” antenna is 4.9 inches (125 mm) long and has an omni-directional radiation pattern that delivers up to 3.5 dBi of gain with an integrated ground-plane. The waterproof polycarbonate shell has a strong 3M adhesive backing and can be mounted on smooth metal, glass, plastic, stone or even wood.
Electrical Properties
• Frequency Range: (600-960/1710-6000 MHz)
• Impedance: 50 ohms
• Gain: 3.5 dBi depending on frequency band
• Radiation: Omni
• Polarization: Vertical
• VSWR: ADGP < 2.5:1
• Ground Plane: Integrated
Mechanical Properties
• Connector: SMA Male on 2m (6'7") coax
• Material: Polycarbonate
• Op. Temp.: -50 to +80C
• Length: 4.9 in / 125 mm
• Width: 0.86 in / 22 mm
• Thickness: 0.22 in / 5.6 mm
NOT for use with Wi-Fi (RP-SMA) devices.
Note: LTE MIMO devices should use 2 identical antennas separated by at least 22 in
Since 2000, -based has been manufacturing innovative professional grade wireless equipment.
Features
- LOW PROFILE - Less Than 1/4 Inch Thick with 3.5 dBi Peak Gain
- COMPATIBLE - Use on Verizon, AT&T, T-Mobile, Telus, Bell Canada, Rogers and all 4G & Sub-6 5G services
- SUPPORTS T-MOBILE 5G BAND 71 & New 3 GHz Mid-Band (C-Band) AT&T and Verizon 5G Frequencies
- COMPATIBLE with Routers, Modems And Gateways from CalAmp, Cisco, Cradlepoint, Digi, Inseego, MoFi, Netgear, Pepwave, , Sierra, ZTE and many others
- DIRECT CONNECT - SMA Male Connector on 6.6 ft Low-loss Coax Lead Wire Screws on to Modem / Router
