Description:
OLED display, no need backlight, self-illumination.
The display performance is better than the traditional LCD display, also lower consumption.
Specifications:
Driver IC: SSD1306
Size: 0.91 inch OLED
Resolution: 128 x 32
Size: 1.49 * 0.47 inch
Interface Type: IIC interface
Display Color: White
Pin Description:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
Operating temperature:-40 ~ 85 ℃
SCL: Clock Line
SDA: Data Line
Package Including

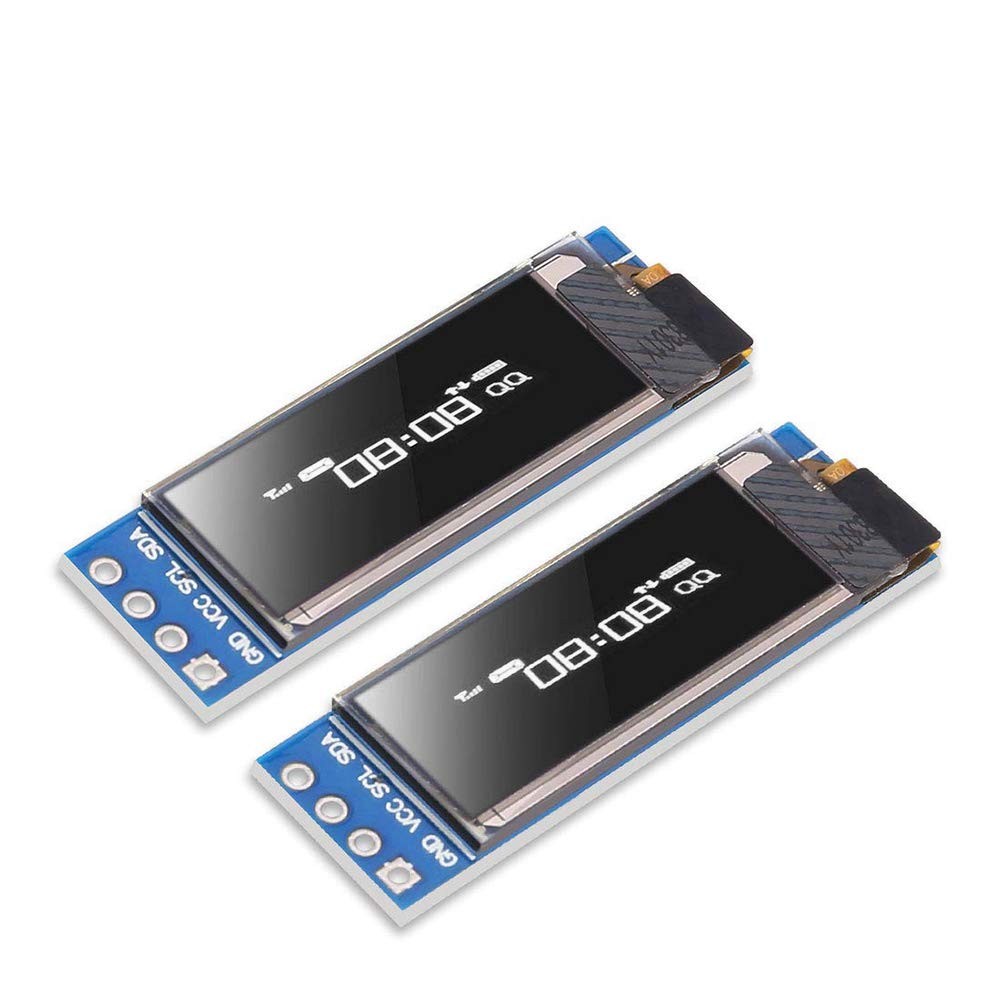

2 X 0.91 Inch I2C OLED Display Module
The 0.91'' I2c oled display, white display color, the display performance is better than the traditional LCD display, also lower consumption.
0.91 inch oled resolution: 128 x 32 Size: 1.49 * 0.47 inch ; Operating temperature: -40 - 85 ℃.
Driver IC : SSD1306,IIC (I2C communications) simplifies connections.
Compatible with Arduino, ESP8266, ESP32, STM32, etc.
0.91inch I2C oled lcd display modules come with pin headers, no need backlight, self-illumination.
