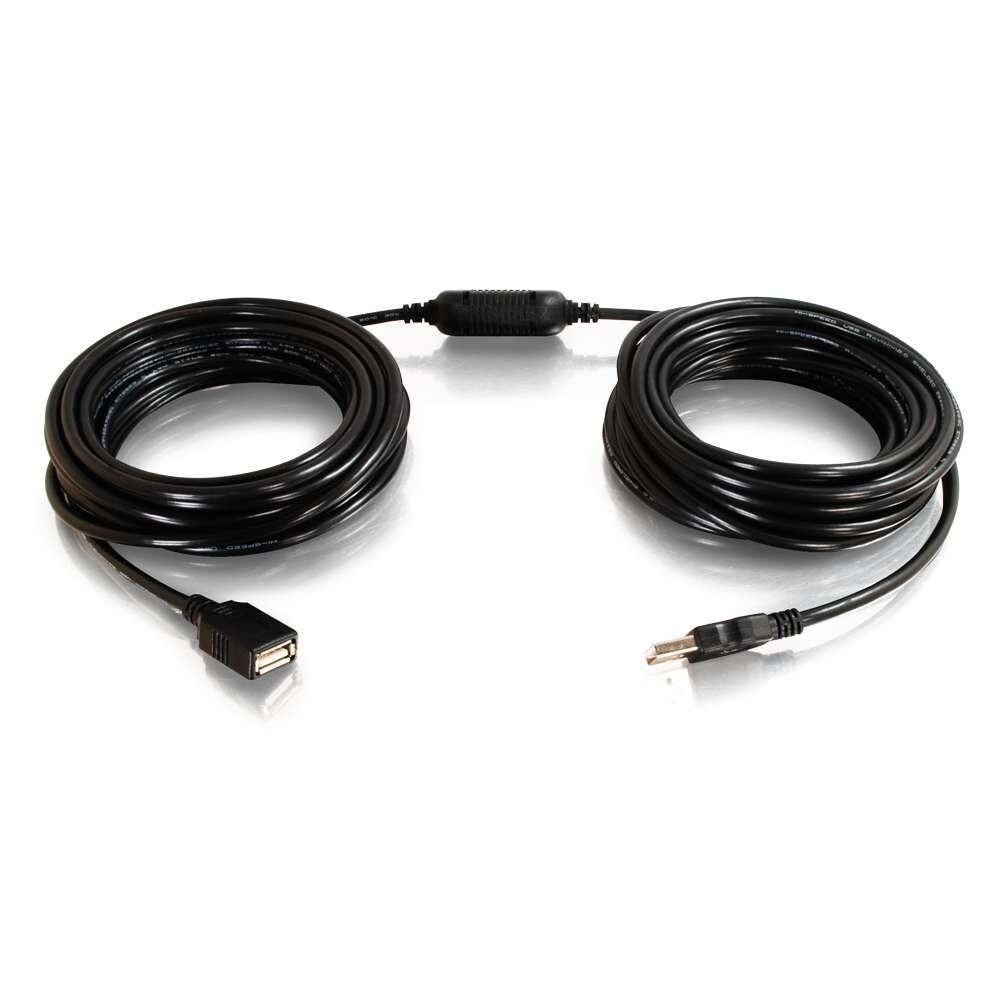

25ft (7.6m) USB A Male to Female Active Extension Cable (Center Booster Format)USB A Male to Female Active Extension Cable (Center Booster Format) SeriesThis extension cable actively buffers the incoming and outgoing signals to ensure compliance with the USB 2.0 specification for electrical and timing minimums. Designed for use with most USB 2.0 or 1.1 devices like some webcams, interactive whiteboards, and printers. You can connect up to 3 active extension cables end-to-end to achieve up to 118 feet (36 meter) total extension! Both low and high speed USB devices will function equally well with this extension cable. The active chip is built into the middle of the cable so you can add up to 3 meters of additional USB cable on each end enabling this cable to be used behind a USB wall plate. This cable will also function when plugged directly into your PC.
Connector 1: (1) USB-A Male
Connector 2: (1) USB-A Female
Features
Extends USB 2.0 signals beyond the five meter length limitation
Center booster format allows this cable to be easily run through raceway
Consumes 100mA from the USB port of the computer
Up to three cables may be used for a total extension of 118 feet
Specifications
General Info
Type
Active Device, Cable
Application Sector
Commercial, Residential
Product Line
C2G
Country Of Origin
China
Warranty Type
5-Year
UPC Number
757120389996
Dimensions
Cable Length
39.3 ft
Product Length US
39.3 FT
Listing Agencies / 3rd Party Agencies
CE Certified
Yes
FCC Compliant
Yes
Technical Information
Cable Diameter
4.9 mm
Cable Type
Active Copper Cable, Extension, USB
Conductor Stranding
Stranded
Data Transfer Rate
480 Mbps
Jacket Material
PVC (Polyvinyl Chloride)
Signal Transmission
offerirectional
Wire Gauge
28 AWG
Additional Technical Specifications
Signal Specifications
Data Signal Specifications - USB 2.0
Maximum Data Transfer Rate - 480Mbps
USB Power Consumed - 100mACable SpecificationsConductor (Qty 1 pair)
Conductor Type - 28AWG (7/0.120), Tinned Copper
Colors: (white, green)Conductor (Qty 2 conductors)
Conductor Type - 22AWG (7/0.254), Tinned Copper
Colors - (1) red, (1) blackPhysical CharacteristicsConnector (Qty 2)
Connector Type - USB Type A Male
Contact Plating - 30
m Gold Plating
Insulation - Black PBT
Voltage Rating - 30V
Temperature Rating - 80°C
Hood Material - SR - Molded Black PVC
Plastic Cover Material - Black ABS
Plastic Cover Dimension - 78.0 x 28.0 x 18mm
Overall Cable
Foil Shields - Aluminum Mylar, 100% coverage min.
Braided Shield - 16/4/0.100, Tinned Copper, 65% coverage min.
Jacket - PVC, black
Outer Diameter - 4.9 ± 0.1mm
Certifications & Warranties
Certifications
NDAA 889
Prop 65
REACH
ROHS
5 Years
