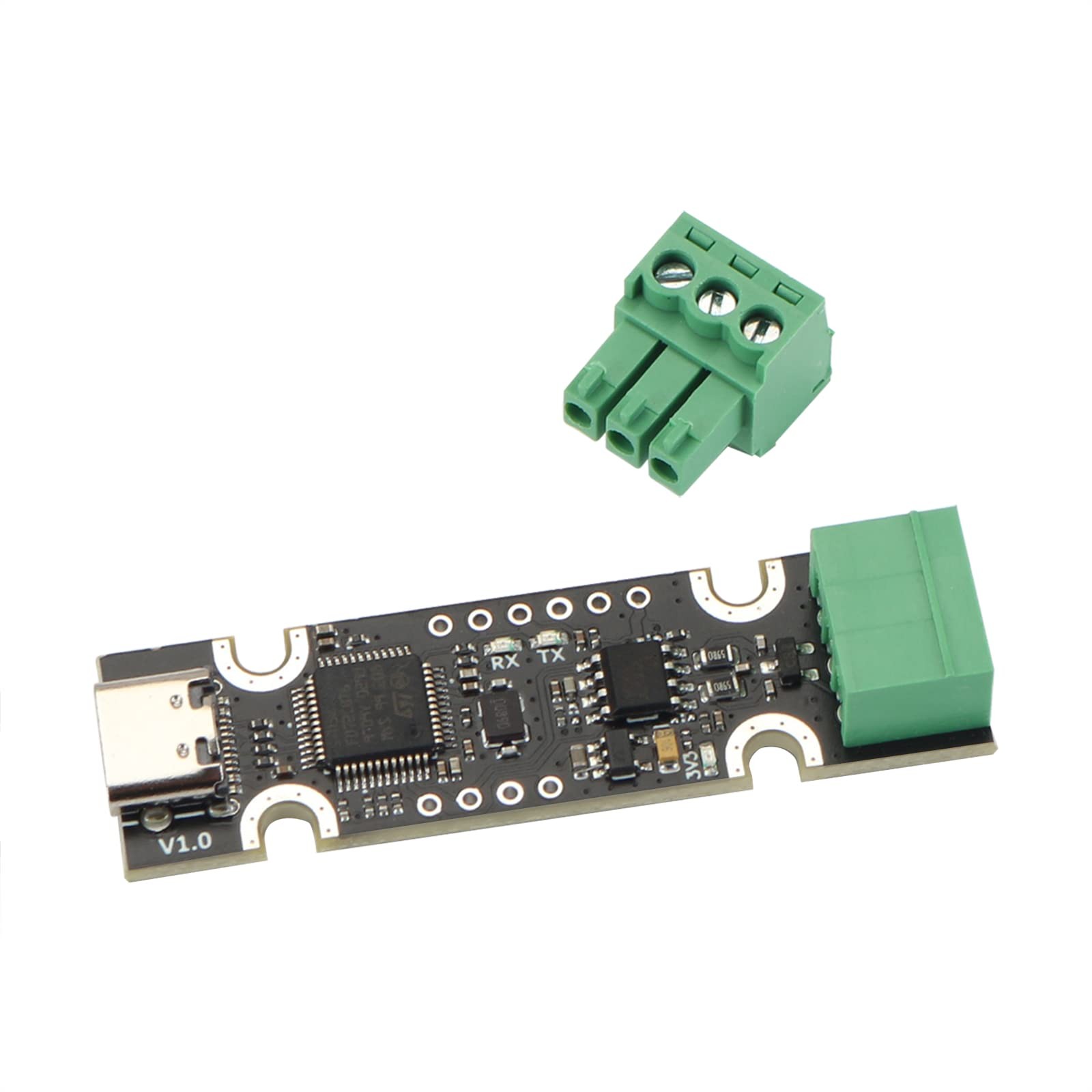

3D Printer Parts UCAN Board V1.0 Based on STM32F072 USB to CAN Adapter Type C...

Price: US $27.41

3D Printer Parts UCAN Board V1.0 Based on STM32F072 USB to CAN Adapter Type C Interface Support CANable/Candlelight/Klipperr Firmware-Pack of 1

1. What's UCAN? It is an open source USB-to-CAN interface board, based on STM32F072 and candleLight open source firmware, and supports linu/win/mac multi-platform. Of course, you can also develop your own firmware to use, it is completely open source.
2. Firmware preloaded: UCAN has already burned the firmware when it leaves the factory. Generally, there is no need to burn it again. If the CAN device appears on the computer plugged into windows PC , it means that it is working normally. If need to reflash the firmware, please refer to the steps on WIKI.Module-Can.
3. Hardware: UCAN is designed based on STM32F072CBT6, PA11/PA12 is connected to USB-C, and PA8/PA9 is connected to CAN interface. 3-pin screw plug terminal: CANH, CANL, GND.
4. About Terminating Resistors: We provide two ways to terminate the resistor, the default is composed of two 59R resistors (R1/R2). The alternate location consists of a 120R resistor and a two-pin jumper.There is no difference in general use, the default is onboard. More info please check the Schematic Diagram on Wiki.
5. Features: Supports CAN2.0A and B, baud rates up to 1M. Headers to enable/disable termination, On-board termination resistors (2 x 59R) are used by default.

UCAN is an open source USB-to-CAN interface board, based on STM32F072 and candleLight open source firmware, and supports linux/win/mac multi-platform. Of course, you can also develop your own firmware to use, it is completely open source.
Features:
1.Supports CAN2.0A and B, baud rates up to 1M
2.Compatible with candleLigtht V1 hardware pin assignment
3.Native socketcan support with candleLight firmware
4.3-pin screw plug terminal: CANH, CANL, GND
5.Headers to enter bootloader for firmware updates and SWD interface
6.Headers to CAN interface before transceiver
7.Headers to enable/disable termination，On-board termination resistors（2 x 59R） are used by default
