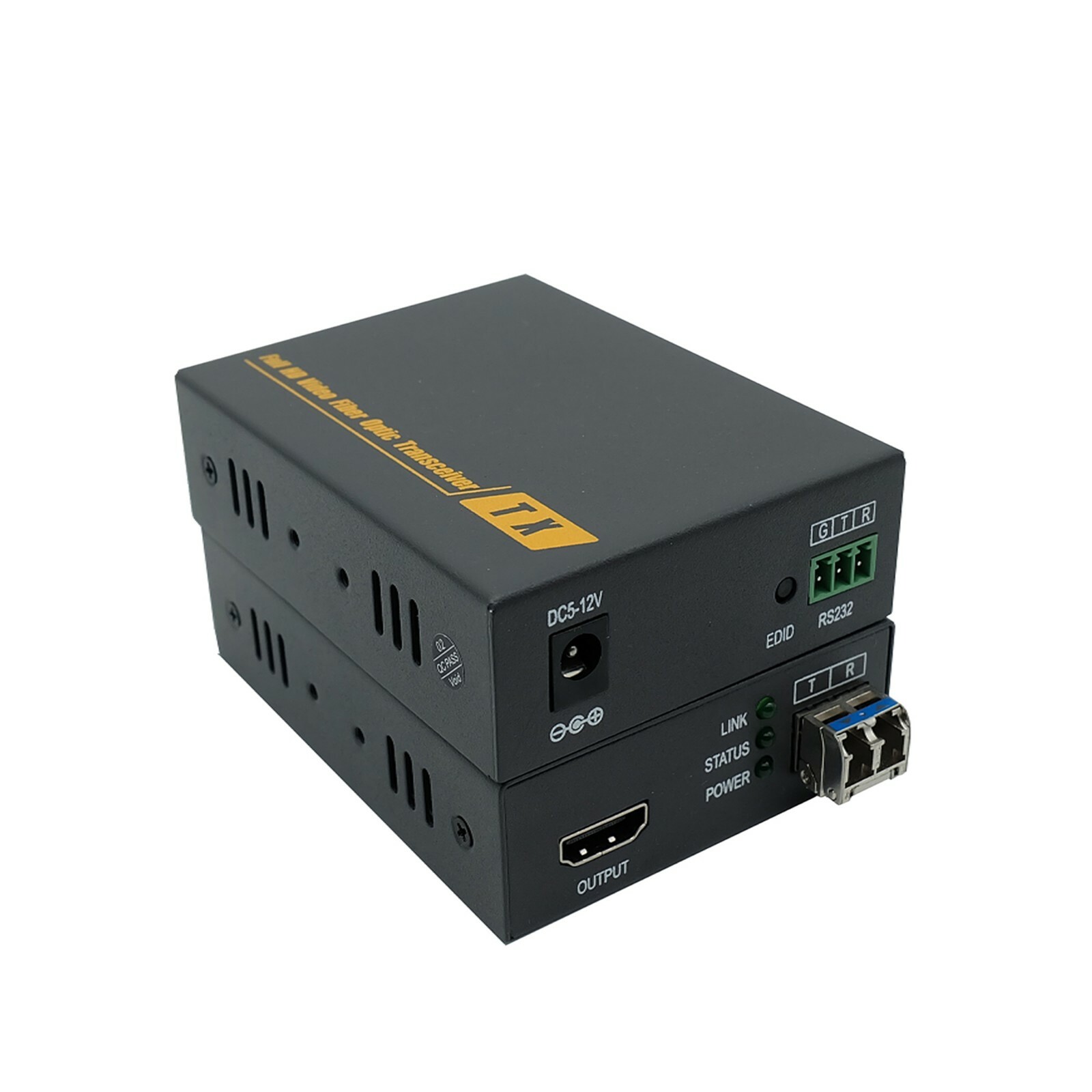

New Arrival, High Quality 4K HDMI fiber optic Extenders 4K@30Hz Uncompress ,with RS-232 data, Long transmission distance.
1.Description
The HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K, EDID copy/pass-thru and RS232 function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
2.Features
- Transmits HDMI video signals up to 1km-20km over a LC/LC fiber optic cable;
- Support video resolution max up to 4Kx2K@30Hz, 1080p@60hz; 3D;
- Support copy EDID copy, can match many kind display device;
- Support RS232 undirectional transmission
- Compliance with HDMI 1.4 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
3.Specifications
Parameter
Description
Video
Standards
HDMI 1.4
Maximum pixel clock
225MHz
Maximum data rate
6.75Gbps
Resolution range
Up to 4Kx2K@30Hz, 3D, 1920*1200@60Hz
Connector
HDMI-A Interface
HDMI Cable Range
<5M( Resolution: 1920*1200@60Hz)
Impedance
100Ω
RS232
Interface
Industrial Terminal
Signal Direction
Unidirectional
Baud Rate
Self-adaptive,Max: 115200bps
Data Bits
8
Optical fiber
Interface
SFP model – LC connector,single LC
Fiber type
Single-mode
Wavelength
Single-mode 1310nm/ 1550nm
Interface bandwidth
10Gbps
Transmission distance
Single-mode fiber: standard 2km；maximum 20km
Multi- mode fiber: < 300Meters
Other
Power supply
The power adapter: DC 12V/1A
Power dissipation
MAX 5W
Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension
94.5*73*26mm
The warranty
1 year free warranty
4.Panel
Port name
Description
HDMI IN/OUT
HDMI signal input/output
EDID
EDID Copy button, Press 3 seconds, copy EDID from HDMI IN display device to system .If HDMI IN interface no display connect, restore default EDID.
DC/5-12V
Power adapter socket
TX/ RX
TX: Transmitter RX: Receiver
RS232
Industrial Terminal
FIBER
SFP model --- LC connector
LED indicator
Description
L
Optical fiber signal connection indicator
S
Video signal connection indicator
P
System power indicator
TX/ Rx L,S, P All bright
Devices is on EDID,HDCP, pass-through process
5.Package list
- HDMI optical fiber transmitter ………. 1 pcs
- HDMI optical fiber receiver ……………. 1 pcs
- SFP Fiber optic module ………………………….2 pcs
- Power adapter (US/EU/UK/AU optional)……………2 pcs
- User manual 1 pcs
6.Installation
1, the HDMI source HDMI optical transceiver connected to the sender,
2, the HDMI optical receiver connected to the display device (such as high-definition TV, mosaic screen, etc.)
3, the use of LC interface fiber optic cable to connect the sending end and the receiving end of the SFP module optical interface,
4, the transmitter and receiver connected to the power supply, when the indicator light is lit, the system is running.
5, on the EDID button use, such as the connection after the launch of the P, S, light, the receiving end of the indicator light, no display or color, the transmitter power to the HDMI port of the monitor and the transmitter HDMI port , Press the EDID button until the S light flashes, stop after the restart power, repeat 1-5 steps can be, if access to dual-fiber EDID and HDCP transparent mode for the signal source for the Blu-ray DVD and the need for two-way RS232 client
7. Diagram
