Technical Specifications:
Waterproof rating: IP68
Connection type: RJ45
Network cable length: 250mm/9.84inch
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Mounting hole size: M25*1.5
Connector transmission classification: CAT6
Electrical parameters:
current: 1.5A
voltage: 125VAC, 75VDC
Insulation resistance: ＞500MΩ
Compressive strength: AC 500V 50HZ or 60HZ for 1 minute
resistance: ＜10mΩ
Material:
Shell: Nylon PA66 (UL94V-0)
Socket pin: 0.5mm diameter phosphor copper wire
pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Package Included:
5x Waterproof RJ45 Connector

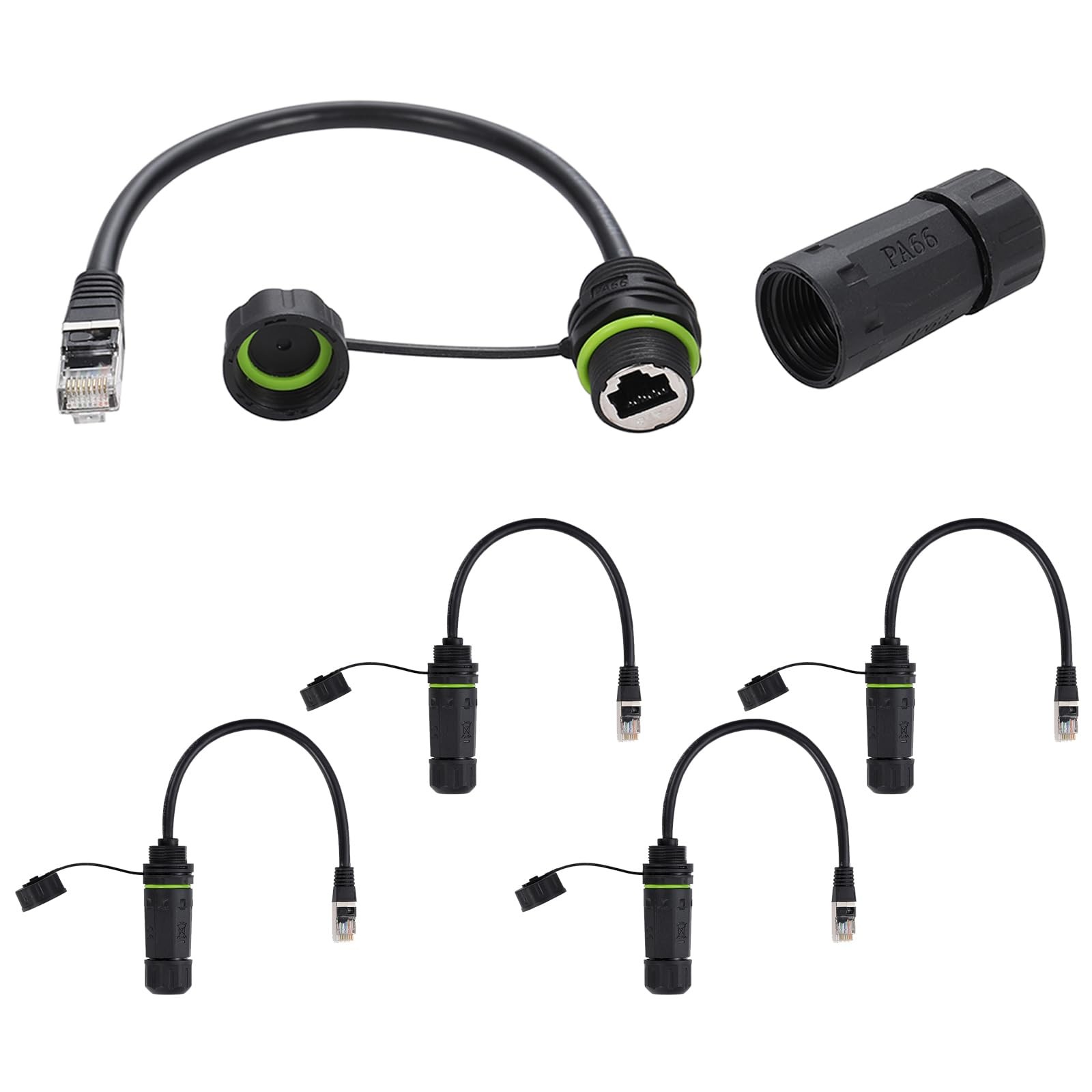

【RJ45 Connector】This is an RJ45 male to female panel mount connector which can either be connected to an RJ45 JACK or used as a network extension cable.It is an ideal for extending an ethernet connection by connecting 2 short network cables together.
【Compatibilities】RJ45 CAT6 Connectors: Provides feed-through Cat6 Ethernet connectivity for data and PoE in industrial environments,and backward with CAT5/CAT5E.
【IP68 Waterproof】The Waterproof RJ45 Connector are IP68 Compliant. Silicon rings and clamping nuts provide a perfect waterproof/ dustproof, prevent the network parts from moisture, dirt rain & snow and insects for quality connections.And the waterproof cover can be adjusted in position to suit your needs, and both ends can be used.
【High Quality & Durable】The RJ45 Male to Female Ethernet Extender use shielded copper-nickel shell crystal plug network cable, super durable, strong anti-interference ability, no attenuation, and long life. And the shell is made of PA66 material, high temperature flame retardant.
【Widely Use】IP68 waterproof RJ45 coupler suitable for harsh industrial or outdoor environments. it is very suit for outdoor IP , ADSL LAN cable, LED equipment, underground engineering, communication field, etc.
