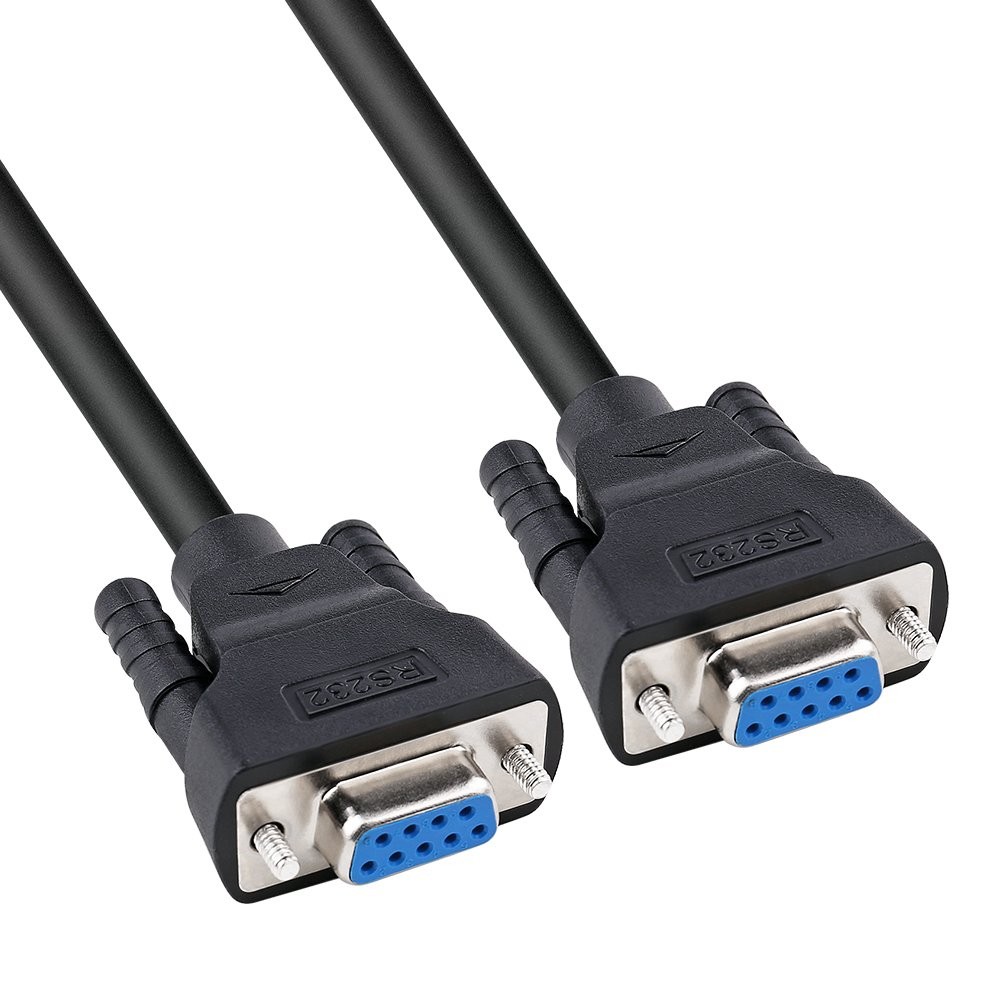

Transfer data between two devices using a serial communication protocol If your equipment require all 9 pins straight thru, take this 6 foot serial cable female to female adapter wherever you need it, it allows you to add your peripherals to an application or replace the cables. This 9 pin serial female to female cable is with gold plated pins for superior corrosion resistance ensuring a solid connection. The wires inside the cable are connected to the pins in the order of the standard wire color code (black brown red orange etc.), which makes hook-up a breeze when you need to cut the RS232 serial cable adapter and make some other wires to the pins. The connectors are equipped with a pair of thumbscrews for securing the plug to the female socket. For Connecting RS232 devices below (partial):
Touchscreen
Telescope
vinyl cutting machine
GPS
network equipment
radio transceiver
stereo system subwoofer/speaker set
sewing machine
weather station
Or controller to a remote control camera Important Note:
1)this is a straight through serial port cable, DO NOT perform crossover (Null Modem) function. 2)It is shielded with standard Foil-Al layer shielding as most db9 serial cables do, it fits for most of jobs. But if there are big mess of interference at your work area, you may need a special heavy duty shielding cable (copper braided + AL-foil). Item Specifications:
Connectors: DB9 to DB9 (Female-Female)
Wire Gauge: 30 AWG
Cord Diameter: 6mm
Color: Black What’s Included: 1 x 6 Foot Straight Through Serial Cable (9 Pin)
1 x User Manual
9 pin serial cable 6ft connects your computer to device with RS-232 compatible (COM port) interface
DB9 RS232 cable female to female connector on each end equipped with screws to ensure an easy and solid connection for stable data communication
The wires inside are of 30AWG gauge and easy to solder to, and they connect to the pins in the order of the standard wire color code
It is pin-to-pin wired as a DE9 9 pin serial cable Straight Through (pinout :1-1, 2-2, 3-3, 4-4,......, 8-8, 9-9, G-G); standard shielded rs232 cord with AL foil
6 feet RS232 serial cable f-f adapter for some old RS232C equipment like scanner, Modem, printer, plotter, switches, camera, barcode / embroidery machine, touchscreen, microcontroller, test equipment
