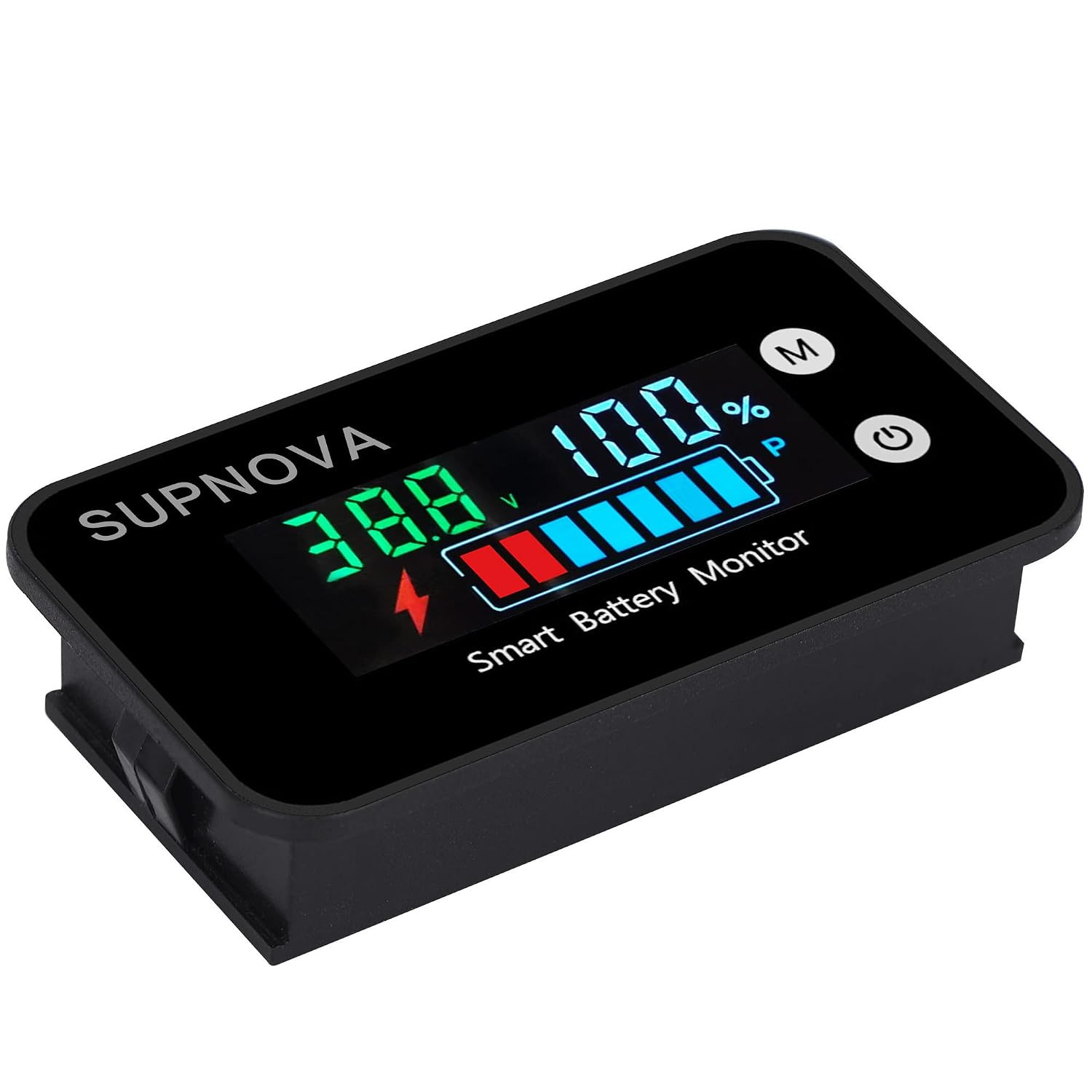

7-100V Battery Monitor, Color LCD with Temp &Buzzer Alarm | 12V 24V 36V 48V 60V

Price: US $22.23

7-100V Battery Monitor, Color LCD with Temp &Buzzer Alarm | 12V 24V 36V 48V 60V 72V Digital Display Lead-Acid & Lithium-Ion Battery Voltage Remaining Capacity Percentage TesterDescription Power Source Battery Powered Minimum Operating Voltage 7 volts_of_direct_current Upper Temperature Rating 140 °F Measurement Type Voltmeter Maximum Operating Voltage 100 volts_of_direct_current Style Name Multicolored display, Non-Waterproof,39.37in Wires Color Multicolored(Not Waterproof) Item Weight 1 ounces Item Dimensions 2.4 x 1.3 x 0.5 inches Brand Name SUPNOVA Number of Items 1 Manufacturer SUPNOVA Included Components Battery Monitor x1; 39.37in Wire x1,Manual x1 Part Number 6133 Specification Met ce certification Brand SUPNOVA Style Multicolored display, Non-Waterproof,39.37in Wires

Product description

Why choose SUPNOVA Battery Monitor

Our battery monitor use high-end chip, and the voltage test range of 8-100V, 12V,36V,48V,60V,72V and 84V batteries can be used，It does not generate heat even when used at high voltages with high safety .
It can accurately test the voltage, the remaining capacity of electricity, show the percentage , it can set low and high voltage buzzer alarm.
This product is independently developed and produced by our company and is suitable for various instruments, car, golf cart, portable and convenient equipment, medical equipment, Electric bikes Motorcycles Boat etc.
The battery tester with power-off memory function, it can retain settings when power is removed.
Buzzer Alarm&Ttemperature:The battery monitor can set low and high voltage buzzer alarm and short press"M"key can switch voltage and temperature（Celsius).

Batter tester Detail picture

Our batter meter is fully functional type, not only can display battery capacity and voltage, but also can display the residual percentage capacity and temperature（Celsius). the wires length are 39.37inches.

The back of product

Removal wiring terminal, convenient for your installation and store.

Application

The battery testers can be used for testing battery voltage and capacity for electric motorcycle, motorcycle，golf cart, automotive , car, marine, RV, boat, etc.

Color battery monitor

The battery testers not only can accurately test the battery voltage and capacity but also percentage display.
The battery meter is suitable for 8-100V (12v 24v 36v 48v 60v 72v,84v ) Ternary lithium battery, lead-acid AGM battery, lithium iron phosphate battery. Default 12 volt lead acid battery with power -off memory function.
The battery monitor meter is designed with the turn on/off switch, convenient for your daily using.
The battery monitors with power-off memory,you would not reset if power off .

Demension

The battery monitor Product Dimension is 64*36*15.3mm(2.5*1.4*0.6inches).and the Install Dimension is 58*28mm(2.28*1.1inches).
The shell designed with buckles if you open hole installation,

function

The batter meter is fully functional type, not only can display battery capacity and voltage, but also can display the residual percentage capacity and temperature（Celsius).
Short press"M" button can switch voltage and temperature.

how to connect

The wiring method is simple. The red wire connect the positive , and the black wire connect the negative of the battery. The wire length is 39.37 inches.

Parameter Measuring range DC8-100V Working current <15MA Display LCD Measurement accuracy 1% Refresh rate two times/second Operation Temp 14F~140F Operation humidity 10-80% Open Size 2.28*1.1inch Demensions 2.5*1.4*0.6 inches (L*W*H) Operation pressure 80-106Kpa Display color color Product Weight 0.75 ounce Working power consumption 12MA Q&A

1.Does the battery monitor come with a battery? Is it easy to wire?‌

A.No, the battery monitor does not include a battery. Simply connect the red wire to the positive terminal and the black wire to the negative terminal of the battery for display.

2.Is setup required after receiving the product?‌

Yes, the battery monitor is compatible with all battery types (7-100V), but you must follow the instructions to make a simple set it based on your battery type. If your battery is not listed in the manual, you can customize settings. Without setup, the voltage will display normally, but the battery capacity will remain at 100%.

3.Is the battery monitor waterproof?

NO. This item not waterproof.

4.Do 12V lead-acid batteries require manual set?

No, the default setting is for 12V lead-acid batteries, but as the battery aging, you can need to customize settings to make the percentage display more accurate.

APPLICABLE BATTERY --- The digital battery monitor is suitable for 7-100V (12v 24v 36v 48v 60v 72v 84v) Ternary lithium battery, lead-acid,AGM battery, LiFePO4 battery. Default 12 volt lead acid battery .
APPLICATION --- The battery testers can be used for testing battery voltage and capacity for electric motorcycle, motorcycle，golf cart,automotive , car, marine, RV, boat, etc.
PROTECTION ---Input reverse connection protection.The battery tester not waterproof and it only be used for indoor;The product had gotten the CE certification, ,it will not be heated even which is used for a long time(The voltage must be less than 100V)
INSTALLATION --- Red wire for the positive, Black wire for the negative. The wires length are 39.37 inches .
Buzzer Alarm&Temperature--- The battery monitor can set low and high voltage buzzer alarm and short press"M"key can switch voltage and Memory--The battery tester with power-off memory function,it can retain settings when power is removed.
Note--After getting the product, Must be make a simple setting according to the instructions, otherwise the percentage will always display 100%!
