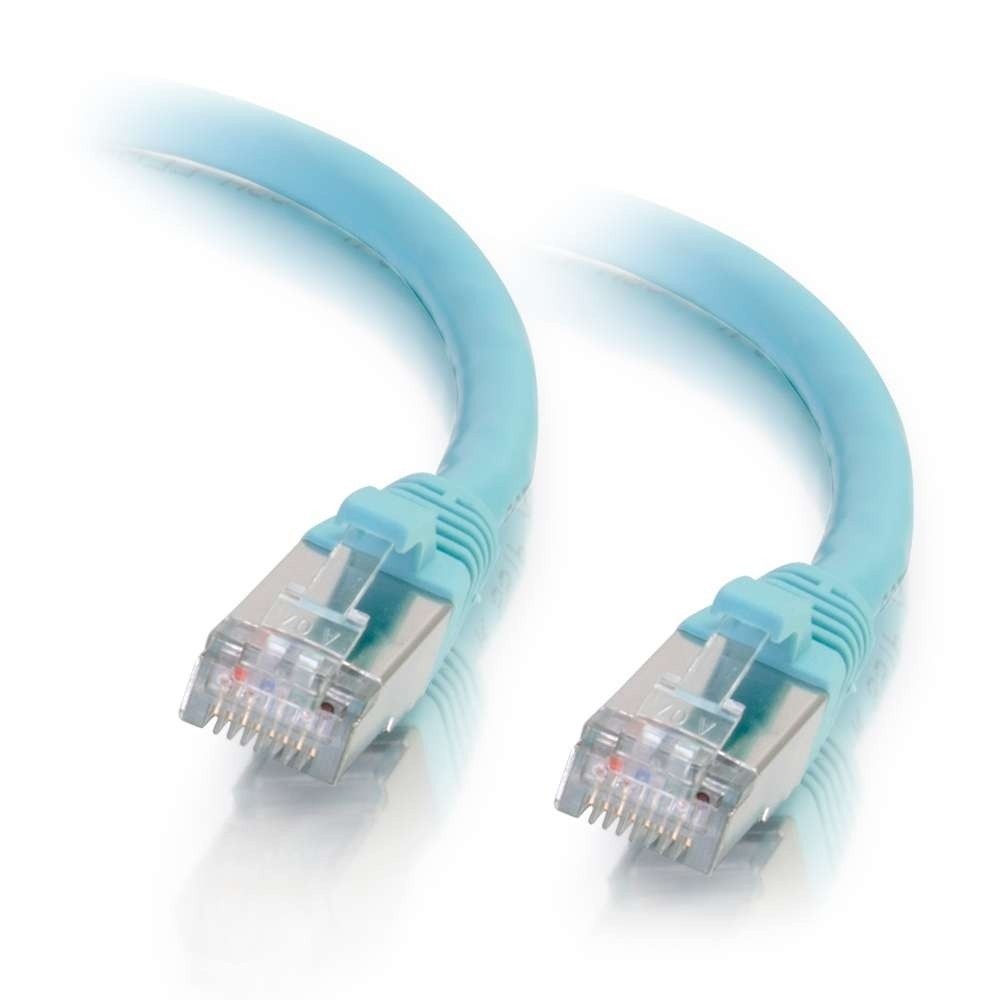

7ft (2.1m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable

This Snagless Shielded Cat6a patch cable is ideal for use with 10GBase-T ports and equipment, such as network adapters, hubs, switches, routers, DSL/cable modems and patch panels, and will protect a high speed 10 Gigabit network connection from noise and electromagnetic interference. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use.Connector 1: (1) RJ-45 MaleConnector 2: (1) RJ-45 Male
Features and Benefits

Designed for network adapters, hubs, switches, routers, HDBaseT applications and more
• Supports 10 Gigabit networks up to 328ft for fast data transmission and maximum performance
• Meets the ANSI/TIA-568-C.2 Cat6a requirements for supporting a wide variety of applications
• Constructed with shielded twisted pair (STP) wires, designed to protect a high speed network from noise and electromagnetic interference
• Snagless connector design for high density environments and protecting the RJ-45 connector's lock
• Available in a variety of colors to color-code a network

Specifications

Dimensions & Measurements

7 ft (2.1 m)

0.24 in (6.2 mm)

0.21 lbs (0.1 kg)

1.95 in (49.6 mm)

80% RH (Non-Condensing)

10% RH (Non-Condensing)

-4° - 176°F (-20° - 80°C)

176 Fahrenheit (80 Celsius)

-4 Fahrenheit (-20 Celsius)

176 Fahrenheit (80 Celsius)

80% RH (Non-Condensing)

10% RH (Non-Condensing)

176 Fahrenheit (80 Celsius)

-4 Fahrenheit (-20 Celsius)

30 V

T568B

26 AWG

Characteristics & Features

Colors

Aqua

Black

Blue

Gray

Green

Orange

Purple

Red

White

Yellow

Cable Type

Ethernet Network Patch Cable

Category Performance Application

Cat 6a

Product Type

Cable

Signal Type

STP

Cable Shielding

Shielded STP

Bandwidth

500 mHz

Data Transfer Rate

10 GBPS

Connector 1

RJ-45 Male

Connector 2

RJ-45 Male

Conductor Material

Copper

Conductor Stranding

Stranded

Connector Hood Material

PVC

Connector Type

Booted

Snagless

Insulation Material

FMPE (Foam Polyethylene)

Jacket Rating

Standard Non-Rated

Plating Specification

50 µ in Gold

Special Features

TIA/EIA-568-C.2

Jacket Material

PVC

TAA Compliant

No

Additional Technical Specifications

Physical Characteristics

Cable type: Stranded SSTP

• Wiring scheme: 568B

• Temperature rating: 75°C

• Testing: ANSI/TIA 568 C.2 Cat6a component testedConductor (4 pair)

• Conductor type: 26AWG (7/0.16) (bare copper)

• Insulation: FM-PEOverall cable

• Foil shield: Aluminum foil (100% coverage)

• Braided shield: Copper braid (40% coverage)

• Jacket: PVCConnector

• Connector Type: RJ-45 Male

• Shell: Nickel plated for shielding

• Housing: Polycarbonate

• Contacts: 50

• m gold plated

• Hood: Molded Snagless PVC

• Dimension (L x W x H): 38.2 x 11.6 x 15.1

Certifications & Warranties

Certifications

CE

NDAA 889

Prop 65

REACH

RoHS

TSCA

Warranty

Lifetime
