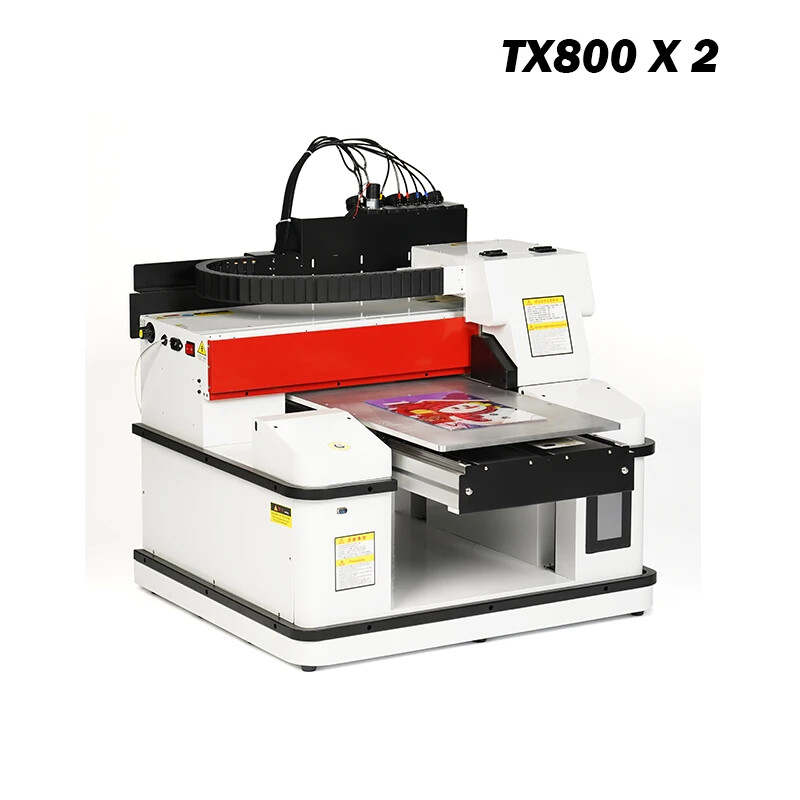

33*60cm A3+ Uv Flatbed Printer Xp600 Tx800 Dual Printhead Printer Uv Printer Machine For Ceramic Logo Jet Wood Phonecase Acrylic
Product Description:
Model: 3360Applicable materials:
Color photo-level printing can be done on glass, plate, various signs, crystal, PVC, acrylic, metal, plastic, stone, leather and other surfaces. No need to make a plate and complete the printing at one time, with beautiful and rich colors, wear resistance, UV protection, simple and convenient operation, and fast printing speed.
Features：
1, 33*60CM large printing table, infrared auxiliary test product height
2. Double print head design; XP600/TX800 double print head, with negative pressure function ink bag, making it more difficult to drop ink during printing.
3. The platform uses high-quality screw drive, which is more fine than belt printing
4. The 12-color ink cartridge design supports cmyk+lc+lm, making the printing more vivid and the effect more realistic.
5.，Automatically wipe the print head and keep it moist. Automatically rinses when turned on and stays moist when turned off. Prevent print head blocking during idle and after printing
The maximum printing area is 330mm*620mm, and the maximum printing height is 160mm (if the adsorption platform is configured, the maximum printing height is 120mm)
Other functions
1，White Ink Automatic Circulation – minimize printer head clogs and greatly extend print head lifetime.2，Two Adjustable UV Lamps Power – Adapt to different printing speeds and printing materials.3，Vacuum Platform---Soft material like leather and so on, is very easy to warp up, which will damage to the nozzle and print material, vacuum platform can avoid that damage when printing..
Specifications：
Model
3360
Print nozzles
XP600 OR TX800 (Dual Nozzle)
Print precision
8PASS、16PASS
Print platform
330*600mm
Print speed
8PASS； 3 to 5 square meters /H
Optional software
Ruicai (free), Ruiyin (charged)
Print height
The maximum printing area is 330mm*620mm, and the maximum printing height is 160mm (if the adsorption platform is configured, the maximum printing height is 120mm)
Applicable systems
Windows
Ink consumption
1 m2 / 20 ml
Color configuration
KYCCMM+WWWWVV
Ink supply mode
Continuous ink supply
Emboss printing
backing
White ink output
Support/white color with out
Print varnish
backing
UV lamp life
3 years
Packing size
L1040*W900*L900mm
UV lamp cooling
Water cooled + air cooled
Device size
L920*W800*H700mm
UV lamp power
Adjustable, up to 130W
Net weight/gross weight
70KG/110KG
Platform tuning
Touch screen + infrared altimetry
Outer packaging
Export wooden box (with forklift feet) + foam
Platform-driven
Pulsed servo motor driven
Voltage/plug
AC100~230V/Depending on the country
Sprinkler protection
Intelligent infrared anti-collision system, ink absorbing pad maintenance liquid anti-clogging.
Print media
Mobile phone case / leather / lithograph / crystal / acrylic / card / DISC / U disk / inscription and other planes
exegesis
The printer adopts stable platform technology, leading stepper motor drive mode, automatic entry and exit at the same time with infrared altimetry, laser positioning, water cooling + air cooling combination, a wide range of printing, 160mm height within the product can be printed
Warranty
One year warranty [Parts that come into contact with ink (or parts damaged due to ink) are not warranted, and the motherboard needs to be sent back for repair when it burns out]
What’s In The Box
UV Printer 3360
Full Set of Initial UV Ink (CMYKW 5*500ml)
Metal coating 1*50ml
Acrylic coating 1*50ml
Ink cleaner 1*100ml
Nozzle protection fluid 1*50ml
Printing Step
1. Design the picture on the computer
2. Open the picture with RIP software and set the parameters
3. Send the task to the printer
4. Wait for the printing to finish
Printing Sample
Product display
