Product Description ADT Link PCIe 4.0 x4 to SFF-8611/8612 adapter card external external connection
(ADT Link) PCIe 4.0 x4 to SFF-8611/8612 adapter card OCuLink external support chassis external connection
Brand：ADT
Product Model:R29A
Product Name：PCIe 4.0 x4 to SFF-8611/8612(OCuLink) Adapter Card
Speed Bandwidth: PCIe 4.0 x4
Purchase Tips: Be sure to buy 1~2 samples to test and verify that there is no error before purchasing large quantities.
Product Size: Dimensions are maximum values
R29A: Length 94.6mm*Height 121mm*Thickness 21.6mm
Product Weight: R29A(31.7g)
Appearance Color: Black
Working Temperature: -40℃~80
Flame retardant grade: 94V0
Product Model Description：
ModelContent DescriptionSpeed BandwidthR29APCIe 4.0x4转SFF-8611/8612转接卡Gen4 x4
Product advantages:
1. Supports PCIe 4.0 X4 compatibility with Gen3/Gen4
2. Equipped with full height and half height baffles, widely used in various environments
3. Circuit protection design to prevent the current generated by external graphics cards from flowing to the motherboard, thus protecting the motherboard
4. Gold finger gold plating process, with a gold thickness of up to 10U, in compliance with IPC Level 1 international standards
5. High frequency, low resistance, high temperature, and oxygen resistant PCB board, with no deformation, yellow crystal, semi transparent color, no whitening, and no blackening
Product shooting:

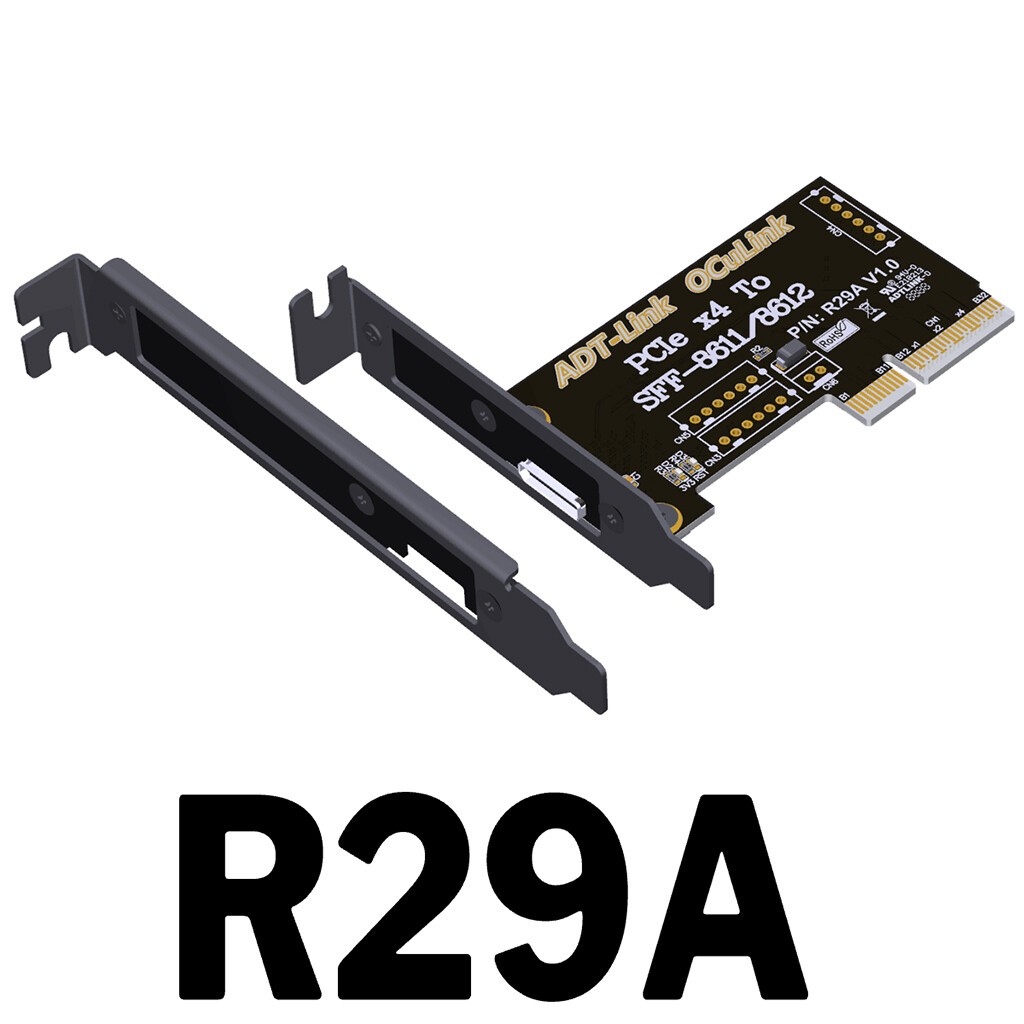

R29A real shot:
Summary of technical questions：
What are the dimensions of model R29A?
What about the R29A indicator light is normal?
The R29A has two indicator lights: D2 light is the power indicator, which is normally on under normal conditions; D3 light is the RESET light, which normally only blinks once under power-on conditions.
What is the performance loss of model R29A?
Labs using GPU-Z real test can reach PCIe x4 4.0, the score is as follows:
Test equipment: 7600x + 4070 + Xingu 850W power supply (direct plug)
Test Equipment: 7600x + R29A + F9G + F9934 + 4070 + Xingu 850W power supply (using graphics card docking adapter)
Test results:real test under the same platform, using the R29A + F9G for the transfer, 3DMARK graphics card score difference of only 0.01%
R29A datasheet：
Download link：
Open 3D PDF files. Please use Adobe Reader DC software.
3D Step & 3D PDF files file R29A Adapter Card specification 20250516.pdf
