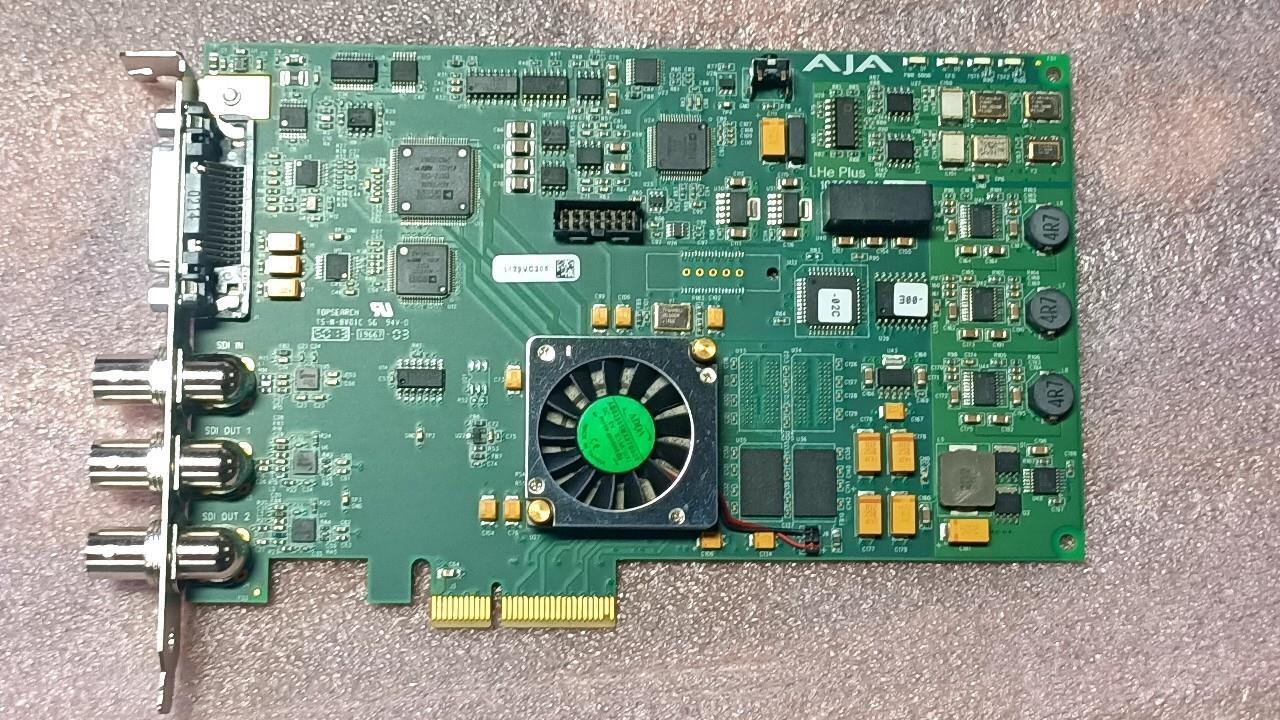

AJA KONA LHe Plus HD/SD PCIe x4 Card KONA-LHE+RO-S02 / KONA-LHE+R0-S02 TESTED AJA KONA LHe Plus HD/SD PCIe x4 Card KONA-LHE+RO-S02 / KONA-LHE+R0-S02 TESTED

Click images to enlarge

Description Up for sale is an AJA KONA LHe Plus HD/SD PCIe x4 Card KONA-LHE+RO-S02 / KONA-LHE+R0-S02 TESTED. These controllers were removed from a local TV station and are in excellent working condition. This listing is for the controller only, no breakout cables, no breakout boxes, no software and no drivers are included.

Included in Listing:

• 1) AJA KONA LHe Plus HD/SD PCIe x4 Card KONA-LHE+RO-S02 / KONA-LHE+R0-S02 TESTED

Product Overview:Designed for broadcast, post and ProAV, as well as OEM developers, KONA LHe Plus is a robust, cost efficient single-channel SDI I/O card with serial control, reference/LTC and analog video and audio. KONA LHe Plus features standard application plug-ins and supports capture, monitoring and/or playback with software applications from AJA, Adobe®, Avid®, Apple®, Telestream and more as well as AJA SDK support. KONA LHe Plus also enables simultaneous monitoring during capture (pass-through).
 Product Features:

• HD-SDI and SD-SDI up to 1080 30p / 720 60p
• 3x 1.5G-SDI connections (1x In, 2x Out) with 8-channel embedded audio
• YCbCr 4:2:2 10-bit workflows supported
• 10-bit LUT support (.cube)
• Real time HD to SD down-conversion with pristine 10-bit quality
• Compatible with leading creative apps
• Includes support for the new Apple M1 chip
• Supports AES and Analog Audio I/O for Telecast Wirestream
• Breakout cable for Ref (Analog Color Black or Composite Sync), RS-422, 2-ch AES/EBU, Analog composite or S-video, or SD/HD component, 2-ch analog audio I/O (Not Included in Listing)
• Extend external connectivity with KL-BOX-LH breakout box (Not Included in Listing)

Product Specifications:

• Video Formats
  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
• Video Input Digital
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
• Video Output Digital
  • 1.5G-SDI, SMPTE 292M
  • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
  • YCbCr 4:2:2 10-bit, 8-bit
• Video Input Analog
  • Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
  • NTSC, NTSCJ, PAL
  • Component (3x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit A/D, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  •
