ANTEC EARTHWATTS, PSU, EA-650 650WATX Switching Power Supply
WHOLESALE PACKAGING ONLY
This original non-modular Antec EarthWatts 650W (EA650) power supply features hardwired cables including a 24-pin main connector, a 4-pin ATX12V connector, an 8-pin EPS12V connector, and multiple peripheral plugs
Cable and Connector BreakdownMotherboard Power: 1 x 20+4-pin main connectorCPU Power: 1 x 4-pin ATX12V and 1 x 8-pin EPS12VSATA Power: 6 x SATA connectorsPeripheral: 6 x 4-pin Molex peripheral connectorsFloppy: 1 x Floppy adapter connectorWire Gauge: Standard 18AWG wiring
650W Continuous Power — Guaranteed 650W ofContinuous Power from Antec120 mm DBB Silence — Whisper-quiet high-qualitydouble ball bearing fan with long lifetimeThermal Manager — An advanced low voltage fanfor optimal heat & noise managementHigh Current Rails — 2 fully-protected High Current +12V rails with high load capabilitiesensuremaximum CPU & GPU compatibilityMulti PCI-E — 2 PCI-E connectors for multiple GPU support
CircuitShield™Over Current Protection (OCP),Over Voltage Protection (OVP),Under Voltage Protection (UVP),Short Circuit Protection (SCP),Over Power Protection (OPP),Surge & Inrush Protection (SIP),No Load Operation (NLO) & Brown-Out Protection (BOP)Japanese heavy-duty caps — High-performance Japanese capacitors ensure tightest DC stability and regulation
ENVIRONMENT– Operating Temperature: 0°C — 50°C– Safety Approvals: UL, cUL, CB, CE, FCC, TÜV, BSMI, CCC, C-Tick, GOST-R, KCCNet Weight: 4.4 lbs / 2.0 kgSize:– 3.4″ (H) x 5.9″ (W) x 5.5″ (D)– 86 mm (H) x 150 mm (W) x 140 mm (D)

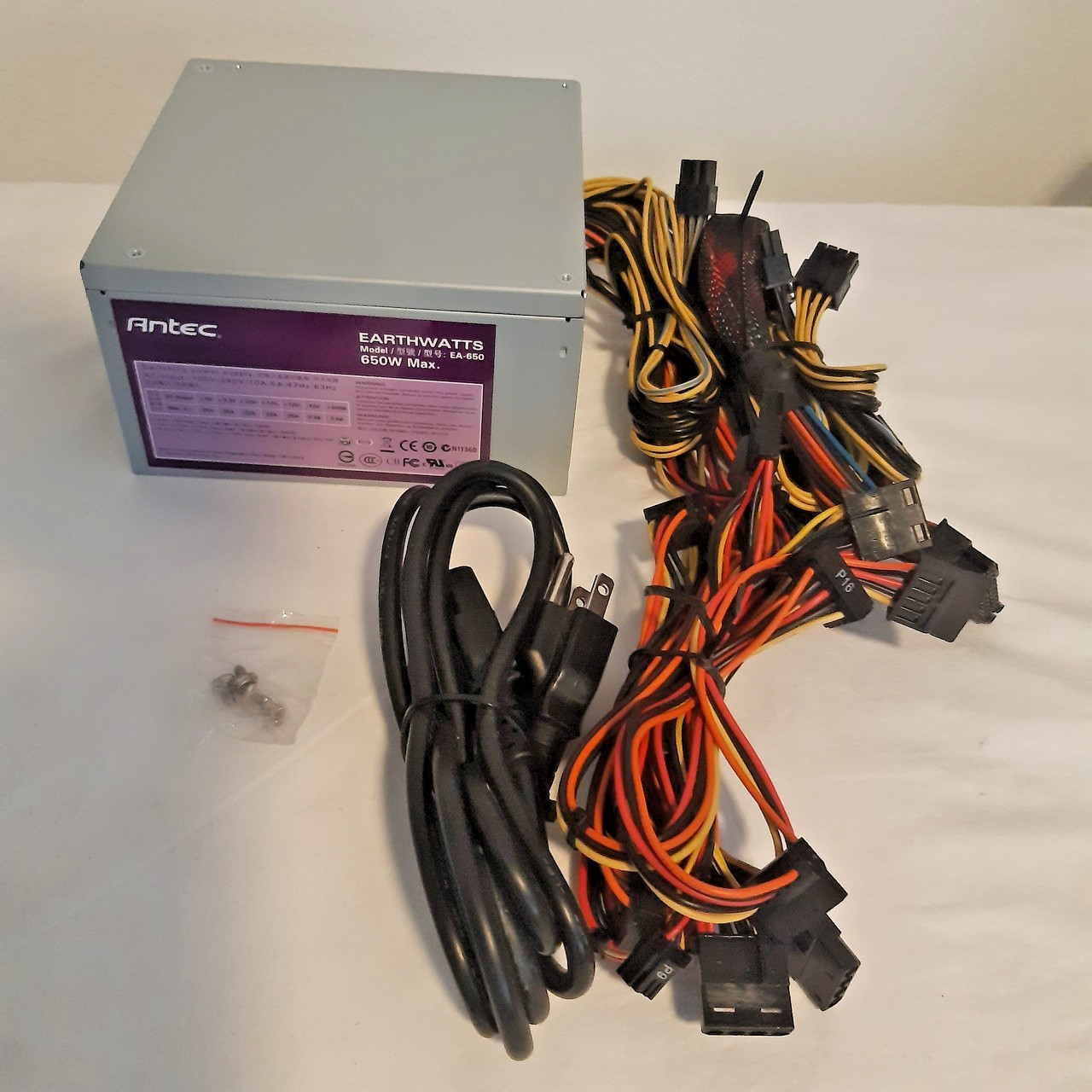

POWER CABLE AND MOUNTING SCREWS INCLUDEDWHOLESALE PKG ONLY
