Manufacturer: APC
Model: AP7750A

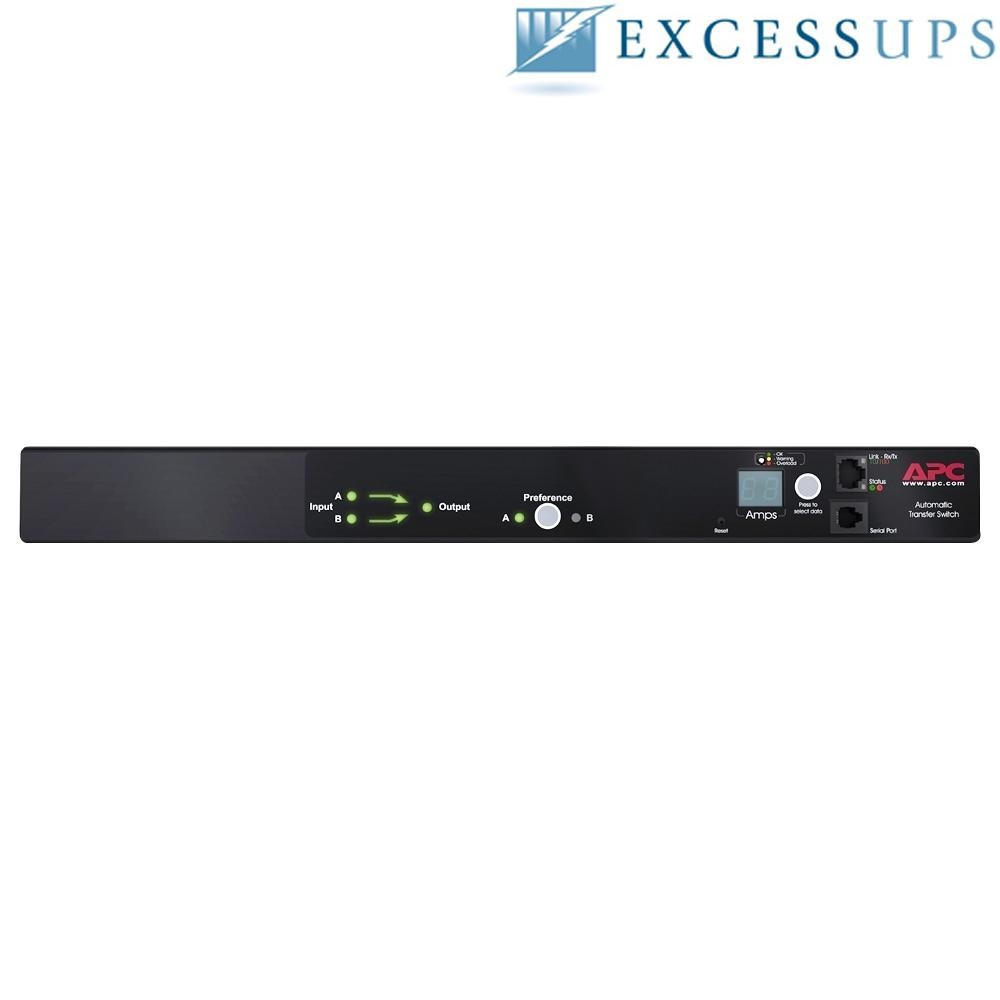

Model Description: APC Rack Automatic Transfer Switch (ATS), 1U, 15A, 100V/120V, (10) NEMA 5-15R
Condition: Refurbished
Part Number: AP7750A
Input Voltage: 100V / 120V
Input Connections: (2) NEMA 5-15P
Output Voltage: 100V / 120V
Output Connections: (10) NEMA 5-15R
Maximum Input Current: 15A
Rated Input Current: 12A
Load Capacity: 1440VA
Rack Height: 1U
Warranty: 1 Year Full Replacement Warranty
Description: The APC AP7750A is a 1U rackmount Automatic Transfer Switch (ATS) designed to provide redundant power protection for single-corded servers, networking equipment, and other critical IT devices. It features dual AC input power cords and automatically transfers connected equipment between available power sources. The AP7750A operates at 100V/120V, supports up to 15A maximum input current and 1440VA load capacity, and provides (10) NEMA 5-15R output receptacles. Its compact 1U rackmount design makes it suitable for server racks, network closets, and data center applications requiring redundant AC power sources.
APC AP7750A Automatic Transfer Switch - User's Manual
AP7750A - APC Rack Automatic Transfer Switch TypeRack Automatic Transfer Switch (ATS)ATS TypeRedundant Dual-Input Automatic Transfer SwitchForm FactorRackmountRack Height1UMain Input Voltage100V / 120VOutput Voltage100V / 120VInput Connection(2) NEMA 5-15PRated Input Current12AMaximum Input Current15ALoad Capacity1440VAOutput Connections(10) NEMA 5-15RNumber of Power Cords2Cord Length8 ft (2.4 m)ConditionRefurbishedWarranty1 Year Full Replacement Warranty Automatic Transfer Switch Transfer Switch FunctionAutomatic Source TransferNumber of AC Inputs2Redundant Power InputsYesAutomatic Source SwitchingYesPrimary / Preferred Source OperationSupportedAlternate Source OperationSupportedSource RedundancyYesApplicationSingle-Corded IT / Network Equipment Requiring Redundant Power Sources Input Nominal Input Voltage100V / 120VPermissible Input Voltage100–125V ACInput Frequency50/60 Hz
Input Connections
NEMA 5-15P
Number of Input Power Cords2Rated Input Current12AMaximum Input Current15AInput Current Limit15ARegulatory Derated Input Current12ALoad Capacity1440VAPower Cord Length8 ft (2.4 m) Output Nominal Output Voltage100V / 120VNumber of Outlets10
Output Connections
(10) NEMA 5-15R
Maximum Total Current Draw15AIndividual Outlet SwitchingNoIndividual Outlet MeteringNo Local Management & Controls Local Status MonitoringSupportedSource Status IndicationSupportedATS Operating StatusLocally IndicatedSource Selection / & Management Network ManagementSupported by Rack ATS Management InterfaceRemote MonitoringSupportedWeb-Based ManagementSupportedSNMP ManagementSupportedRemote ATS Status MonitoringSupportedInput Source MonitoringSupportedEvent / Alarm MonitoringSupportedNetwork ConfigurationSupportedRemote Outlet SwitchingNoIndividual Outlet ControlNo Physical ColorBlackRack Height1UMounting ModeRack-MountedMounting LocationFrontMounting PreferenceNo PreferenceHeight1.7 in (4.4 cm)Width17.008 in (43.2 cm)Depth9.3 in (23.6 cm)Net Weight10.4 lb (4.7 kg)Rack Mounting BracketsIncludedUser Temperature23–113°F (-5–45°C)Operating Relative Humidity0–95%Operating Altitude0–10,000 ft (0–3048 m)Storage Temperature-13–149°F (-25–65°C)Storage Relative Humidity0–95%Storage Altitude0–50,000 ft (0–15,240 m) Certifications & AFCCPart 15 Class AICESICES-003 Shipping Package Quantity1Shipping Height2.8 in (7 cm)Shipping Width13.5 in (34.3 cm)Shipping Length19.1 in (48.6 cm)Shipping Weight14.29 lb (6.48 kg)
