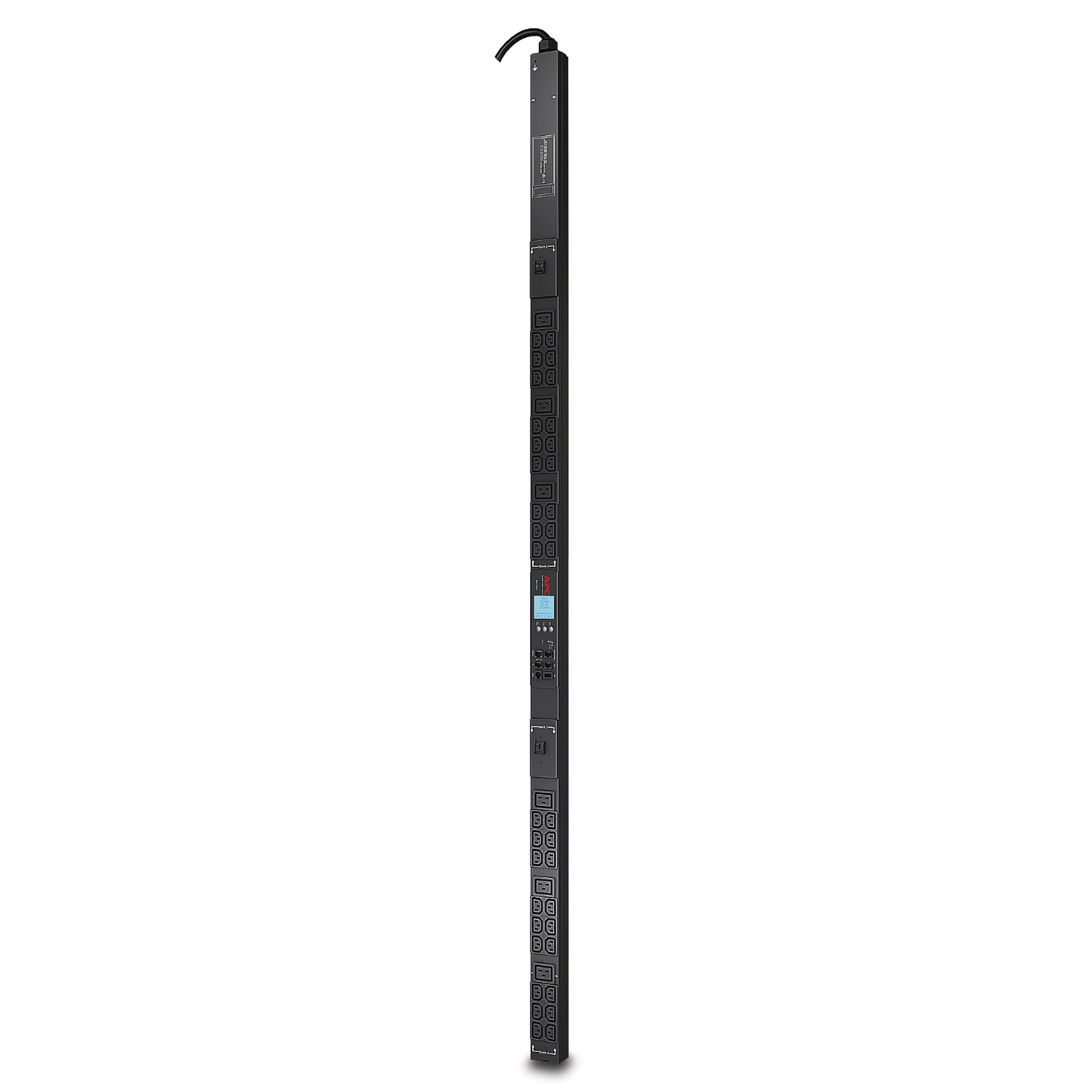

OverviewPresentationAPC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (36) C13 & (6) C19, and the cable length is 3m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower the total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra-low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.Lead timeUsually in StockMainColourBlackProduct or component typePDUPDU typeMeteredCord length2.9 mNumber of cables1Provided equipmentInstallation guide
Rack mounting brackets
Serial configuration cable
Safety guideComplementaryInput Voltage200 V
208 V
230 VHeight1791 mmWidth56 mmOutput Voltage230 VDepth44 mmNet weight6.93 kgMounting locationSideMounting preferenceNo preferenceInput Plug TypeIEC 60309 32 A 2P + EMounting modeRack-mountedRack units0UUSB compatibleNoMounting positionVerticalPermissible voltage220…240 VMax line current32 AInput current limits32 ALoad capacity7400 VANetwork frequency50/60 HzOutlet type and quantity36 IEC 60320 C13
6 IEC 60320 C19EnvironmentProduct certificationsVDEStandardsIEC 60950Ambient air temperature for operation-5…60 °CRelative humidity5…95 %Operating altitude0...10000 ftAmbient air temperature for storage-25…65 °CStorage Relative Humidity5…95 %Storage altitude0…15240 mPacking UnitsUnit Type of Package 1PCENumber of Units in Package 11Package 1 Height200.000 cmPackage 1 Width16.200 cmPackage 1 Length10.700 cmPackage 1 Weight9.200 kgUnit Type of Package 2PALNumber of Units in Package 210Package 2 Height52.000 cmPackage 2 Width144.000 cmPackage 2 Length222.000 cmPackage 2 Weight157.000 kgContractual warrantyWarranty (in months)24
