Manufacturer: APC

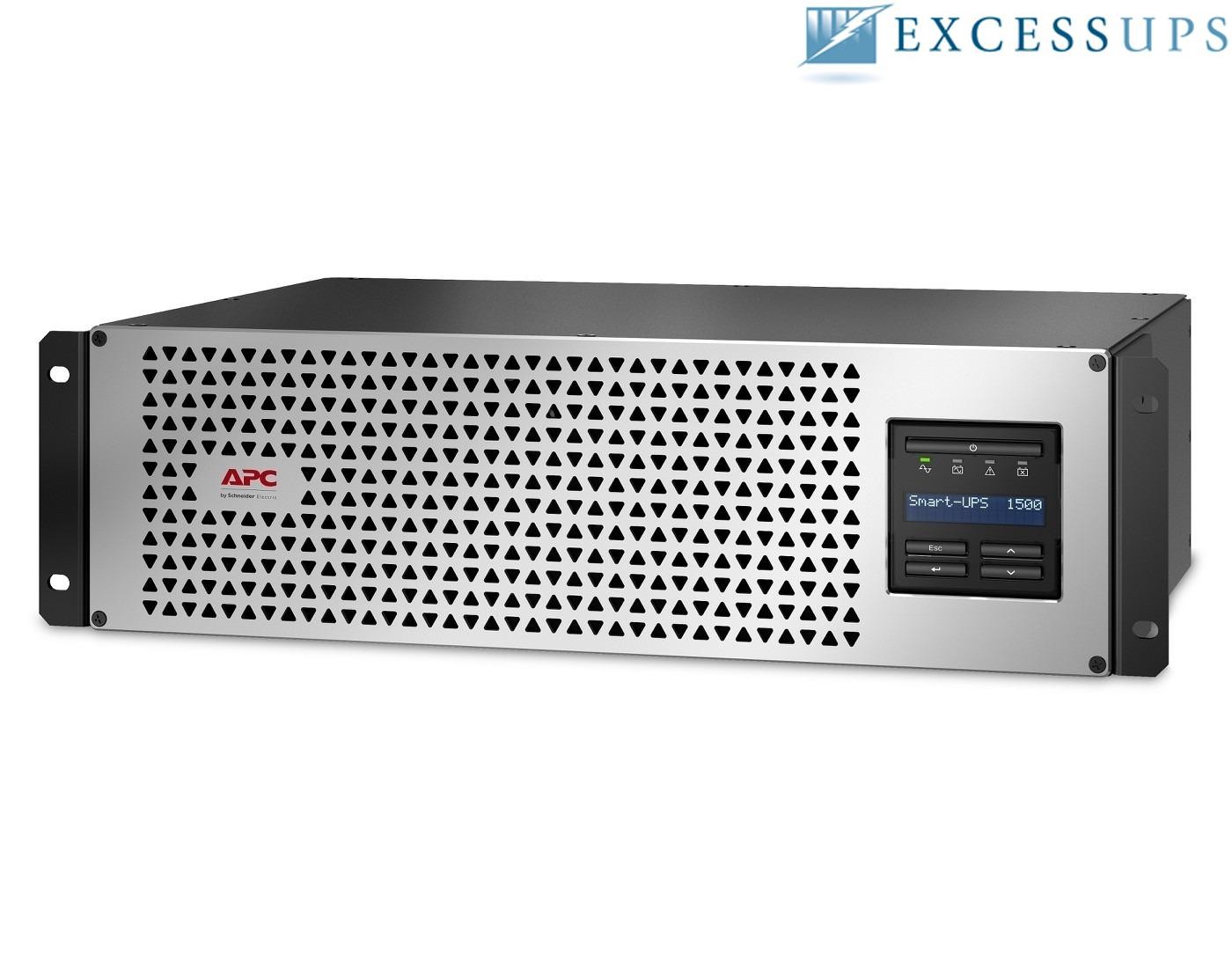

Model: APC Smart-UPS 1500VA Class, 1350W / 1440VA, RM 3U, 120V, Li-Ion, SmartConnect + Network Management Card
Condition: Refurbished UPS, Tested Original Lithium-Ion Batteries
Part Number: SMTL1500RM3UCNC
Maximum Output: 1350W / 1440VA
Input: NEMA 5-15P, 120V, 15A, Single Phase
Output: (6) NEMA 5-15R, 120V
Topology: Line Interactive
Waveform: Sine Wave
Typical Backup Time at Half Load: Approx. 11.2 Minutes (675 Watts)
Typical Backup Time at Full Load: 5.15 Minutes (1350 Watts)
Typical Recharge Time: 3 Hours
SmartConnect: Built-in SmartConnect Ethernet Port for Cloud Monitoring
Network Management Card: APC AP9641 Network Management Card 3 Pre-Installed
Environmental Monitoring: Supported via Pre-Installed Network Management Card
Local Management: Multi-Function LCD Status and Control Console
Emergency Power Off (EPO): Yes
Surge Protection: 680 Joules
Warranty: 1 Year Full Replacement Warranty
Description: The APC SMTL1500RM3UCNC is a 1440VA / 1350W Line-Interactive Smart-UPS featuring Lithium-Ion battery technology, sine wave output, AVR, and a compact 3U rackmount design. It includes SmartConnect cloud monitoring and an APC AP9641 Network Management Card 3 pre-installed for advanced remote UPS and environmental monitoring. The unit provides (6) NEMA 5-15R outlets and an LCD status and control display. Refurbished UPS with tested original Lithium-Ion batteries and a 1 Year Full Replacement Warranty
APC Smart-UPS SMTL1500RM3UCNC 1500VA Class, 1350W / 1440VA - User Manual
SMTL1500RM3UCNC - APC Smart-UPS Lithium-Ion SeriesAPC Smart-UPSModel / Part NumberSMTL1500RM3UCNCProduct TypeUninterruptible Power Supply (UPS)Rated Power1440VA / 1350WTopologyLine InteractiveOutput WaveformSine WaveForm FactorRackmountRack Height3UInput PhaseSingle PhaseBattery TechnologyLithium-Ion (Li-Ion)Network ManagementAPC Network Management Card 3 Pre-InstalledNetwork Management UPSWarranty1 Year Full Replacement Warranty Input Main Input Voltage120VOther Input Voltages110V / 125V
Input Connection Type
NEMA 5-15P
Input Current / Electrical Service15AInput PhaseSingle PhaseInput Frequency50/60 Hz ±3 Hz Auto-SensingInput Voltage Range82–144VAdjustable Input Voltage Range75–154VInput ProtectionCircuit BreakerPower Cord Length8 ft (2.44 m)Number of Power Cords1 Output Maximum Output Power1350WMaximum Output Capacity1440VAMain Output Voltage120VOther Output Voltages110V / 125V
Output Connection Type
(6) NEMA 5-15R
Output ProtectionBattery BackupOutput Frequency50/60 Hz ±3 Hz, Synchronized to MainsOutput WaveformSine WaveHarmonic DistortionLess than 5%Crest Factor3:1Transfer Time6 ms Typical / 10 ms MaximumTopologyLine InteractiveAutomatic Voltage Regulation (AVR)Yes Batteries & Runtime Battery TypeLithium-Ion (Li-Ion)Battery SystemInternal Lithium-Ion BatteryBattery Design Life8–10 YearsTypical Backup Time at Half LoadApprox. 11 Minutes (675W)Typical Backup Time at Full LoadApprox. 5 Minutes (1350W)Runtime at 135W54 MinutesRuntime at 200W37 MinutesRuntime at 300W25 Minutes 25 SecondsRuntime at 400W19 Minutes 7 SecondsRuntime at 500W15 Minutes 16 SecondsRuntime at 600W12 Minutes 39 SecondsRuntime at 700W10 Minutes 45 SecondsRuntime at 800W9 Minutes 19 SecondsRuntime at 900W8 Minutes 12 SecondsRuntime at 1000W7 Minutes 18 SecondsRuntime at 1100W6 Minutes 33 SecondsRuntime at 1200W5 Minutes 55 SecondsRuntime at 1300W5 Minutes 23 SecondsRuntime at 1350W5 Minutes 9 SecondsTypical Recharge Time3 HoursBattery Power164 VAhBattery Charge Power154W RatedExtendable RuntimeNoExternal Battery Pack SupportNoBattery ConditionTested Original Lithium-Ion Batteries User Interface, Alerts & Controls Control PanelMulti-Function LCD Status and Control ConsoleLCD DisplayYesUPS Status MonitoringYesInput Voltage MonitoringYesOutput Voltage MonitoringYesLoad MonitoringYesBattery Status MonitoringYesAudible AlarmsYesVisual AlarmsYesOn-Battery AlarmYesLow-Battery AlarmYesOverload IndicationYesUPS Fault IndicationYesLocal UPS ConfigurationSupported Through LCD Interface Communications & Management SmartConnectYes – Built-In SmartConnect Ethernet PortSmartConnect FunctionCloud-Enabled UPS MonitoringSmartSlotYesNetwork Management CardAPC AP9641 Network Management Card 3Network Card InstallationPre-InstalledRemote UPS MonitoringYesRemote UPS ManagementYesNetwork InterfaceEthernetWeb-Based ManagementSupportedSNMP ManagementSupportedRemote Event MonitoringSupportedNetwork Event NotificationsSupportedUPS Status MonitoringSupportedBattery Status MonitoringSupportedLoad MonitoringSupportedPower Event MonitoringSupportedEnvironmental MonitoringSupported by AP9641Environmental Sensor SupportSupported by AP9641USB CommunicationYesSerial CommunicationYesEmergency Power Off (EPO)YesPower Management SoftwareAPC PowerChute AP9641 Network Management Card 3 – Pre-Installed Card ModelAP9641Card FamilyAPC UPS Network Management Card 3InstallationPre-Installed in UPS SmartSlotNetwork ConnectivityEthernetRemote MonitoringYesRemote ManagementYesWeb User InterfaceSupportedSNMPSupportedSecure Network ManagementSupportedEvent LoggingSupportedData LoggingSupportedConfigurable NotificationsSupportedEmail NotificationsSupportedSNMP Trap NotificationsSupportedRemote UPS StatusSupportedRemote Battery MonitoringSupportedRemote Load MonitoringSupportedPower Event MonitoringSupportedEnvironmental MonitoringYesTemperature / Humidity Sensor SupportSupported with Compatible APC Environmental SensorNetwork Shutdown IntegrationSupportedFirmware Upgrade CapabilitySupported Surge Protection & Filtering Surge Energy Rating680 JoulesNoise FilteringFull-Time Multi-Pole Noise FilteringIEEE Surge Let-Through0.3%Clamping Response TimeZeroSurge StandardMeets UL 1449 Physical ColorBlackRack Height3UHeight5.16 in (131 mm)Width17.24 in (438 mm)Depth11.89 in (302 mm)Net WeightApprox. 43 lbs (19.5 kg)Mounting ModeRack-MountedRack EarsIncludedFront Temperature32–104°F (0–40°C)Storage Temperature5–113°F (-15–45°C)Operating Relative Humidity0–95%, Non-CondensingStorage Relative Humidity0–95%, Non-CondensingOperating Altitude0–10,000 ftStorage Altitude0–25,000 ftAcoustic Level45 dBAHeat Dissipation135 BTU/hrIP Degree of Management CardAP9641 Pre-InstalledFront BezelIncludedRack EarsIncludedWarranty1 Year Full Replacement Warranty
