Manufacturer: APC
Model: APC Smart-UPS 1500VA Class, 1350W / 1440VA, Rackmount 3U, 120V, Li-Ion, SmartConnect
Condition: New Batteries, Refurbished UPS
Part Number: SMTL1500RM3UC
Maximum Output: 1350W / 1440VA
Input: NEMA 5-15P, 120V, Single Phase
Output: (6) NEMA 5-15R, 120V
Topology: Line Interactive
Waveform: Sine Wave
Battery Type: Lithium-Ion (Li-Ion)
Battery Design Life: 8–10 Years
Typical Recharge Time: 3 Hours
Typical Backup Time at Half Load: 12.8 Minutes (675 Watts)
Typical Backup Time at Full Load: 5.0 Minutes (1350 Watts)
SmartConnect: Built-in Ethernet SmartConnect Port for Cloud Monitoring
Network Management: SmartSlot for Optional Network Management Card
Local Management: Multi-Function LCD Status and Control Console
USB Communication: Yes
Emergency Power Off (EPO): Yes
Surge Protection: 680 Joules
Form Factor: Rackmount 3U
Warranty: 1 Year Full Replacement Warranty

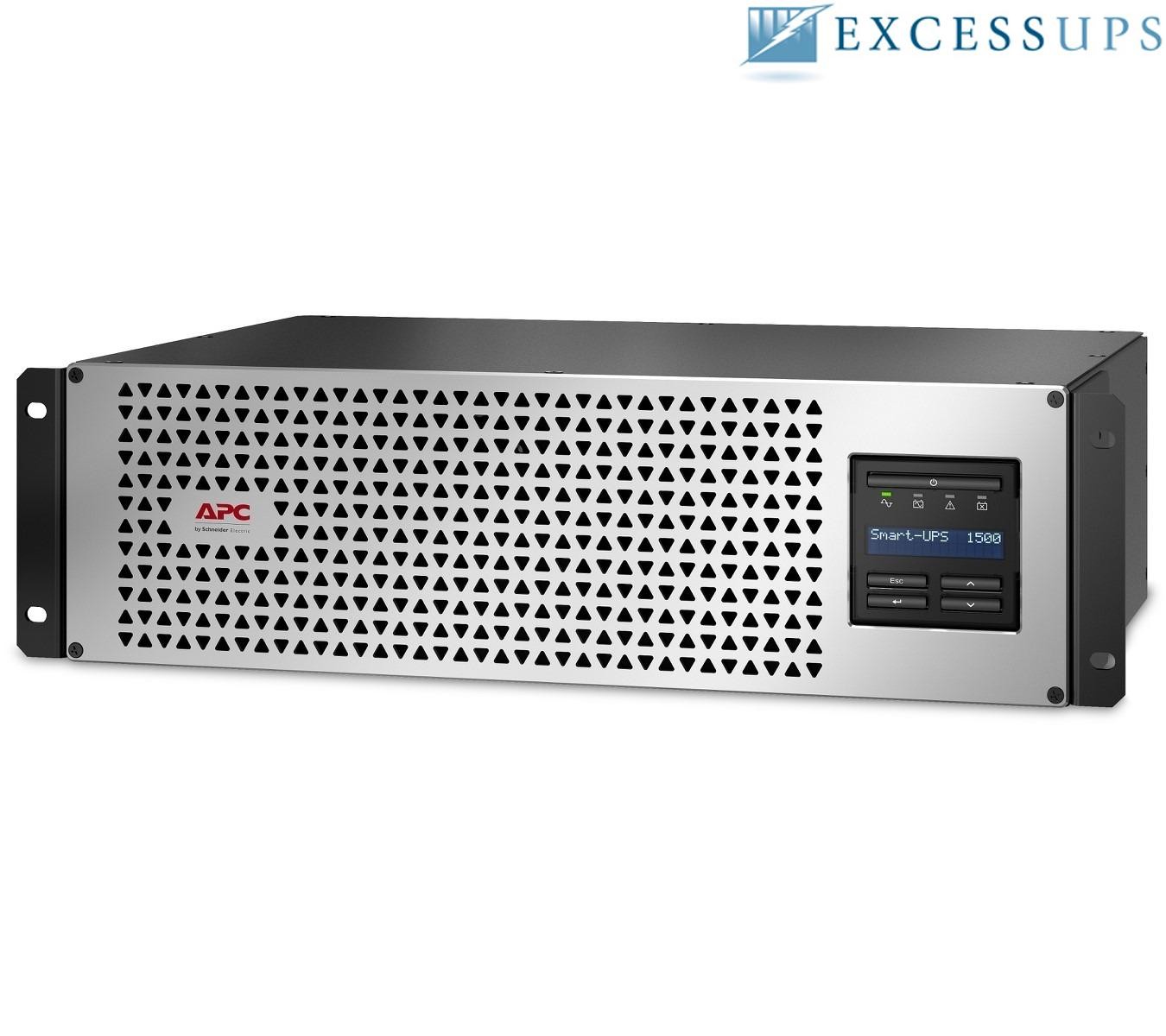

Description: The APC SMTL1500RM3UC is a 1440VA / 1350W Line-Interactive Smart-UPS featuring a Lithium-Ion battery system, sine wave output, and a compact 3U rackmount design. It provides (6) NEMA 5-15R outlets, SmartConnect cloud monitoring, SmartSlot expansion, and an LCD status and control display for protecting servers, network equipment, and other critical IT devices. Refurbished UPS with tested original Lithium-Ion batteries and a 1 Year Full Replacement Warranty
APC Smart-UPS 1500VA 1350W RM SMTL1500RM3UC - User Manual
SMTL1500RM3UC - APC Smart-UPS SeriesAPC Smart-UPSModel / Part NumberSMTL1500RM3UCProduct TypeUninterruptible Power Supply (UPS)Rated Power1440VA / 1350WTopologyLine InteractiveOutput WaveformSine WaveForm FactorRackmountRack Height3UInput PhaseSingle PhaseBattery TechnologyLithium-Ion (Li-Ion)Product Web Sub-FamilyCloud-Enabled UPS, Tested Original Lithium-Ion BatteriesWarranty1 Year Full Replacement Warranty Input Main Input Voltage120VOther Input Voltages110V / 125V
Input Connection Type
NEMA 5-15P
Input Current / Electrical Service15AInput PhaseSingle PhaseInput Frequency50/60 Hz ±3 Hz Auto-SensingInput Voltage Range82–144VAdjustable Input Voltage Range75–154VInput ProtectionCircuit BreakerPower Cord Length8 ft (2.44 m)Number of Power Cords1 Output Maximum Output Power1350WMaximum Output Capacity1440VAMain Output Voltage120VOther Output Voltages110V / 125V
Output Connection Type
(6) NEMA 5-15R
Output ProtectionBattery BackupOutput Frequency50/60 Hz ±3 Hz, Synchronized to MainsOutput WaveformSine WaveHarmonic DistortionLess than 5%Crest Factor3:1Transfer Time6 ms Typical / 10 ms MaximumTopologyLine Interactive Batteries & Runtime Battery TypeLithium-Ion (Li-Ion)Battery SystemInternal Lithium-Ion BatteryBattery Design Life8–10 YearsTypical Backup Time at Half Load12.8 Minutes (675W)Typical Backup Time at Full Load5.0 Minutes (1350W)Typical Recharge Time3 HoursBattery Power164 VAhBattery Charge Power154W RatedExtendable RuntimeNoExternal Battery Pack SupportNoBattery ConditionTested Original Lithium-Ion Batteries User Interface, Alerts & Controls Control PanelMulti-Function LCD Status and Control ConsoleLCD DisplayYesUPS Status MonitoringYesInput / Output Status MonitoringYesLoad MonitoringYesBattery Status MonitoringYesAudible AlarmsYesVisual AlarmsYesOn-Battery AlarmYesLow-Battery AlarmYesOverload IndicationSupportedUPS Fault IndicationSupportedLocal UPS ConfigurationSupported through LCD Interface Communications & Management SmartConnectYes – Built-In SmartConnect Ethernet PortSmartConnect FunctionCloud-Enabled Remote UPS MonitoringEthernet ConnectivityYesSmartSlotYesAvailable SmartSlot(1)Optional Network ManagementSupported via SmartSlotRemote UPS MonitoringSupportedBattery Status MonitoringSupportedUPS Health MonitoringSupportedPower Event MonitoringSupportedUSB CommunicationYesUSB CompatibleYesEmergency Power Off (EPO)YesPower Management Software SupportAPC PowerChuteSmartConnect Cloud MonitoringSupportedSmartConnect NotificationsUPS Status and Power Event NotificationsRemote Network ManagementAvailable through Compatible SmartSlot Network Management Card Surge Protection & Filtering Surge Energy Rating680 JoulesNoise FilteringFull-Time Multi-Pole Noise FilteringIEEE Surge Let-Through0.3%Clamping Response TimeZeroSurge StandardMeets UL 1449 Physical ColorBlackRack Height3UHeight5.16 in (131 mm)Width17.24 in (438 mm)Depth11.89 in (302 mm)Net Weight42.99 lbs (19.5 kg)Mounting ModeRack-MountedRack Mounting Support RailsIncludedRack EarsIncludedFront BezelIncludedUSB Temperature32–104°F (0–40°C)Storage Temperature5–113°F (-15–45°C)Operating Relative Humidity0–95%, Non-CondensingStorage Relative Humidity0–95%, Non-CondensingOperating Altitude0–10,000 ftStorage Altitude0–25,000 ft (0–7,620 m)Acoustic Level45 dBAHeat Dissipation135 BTU/hrIP Degree of ProtectionIP20 Conformance Product CertificationNOM
