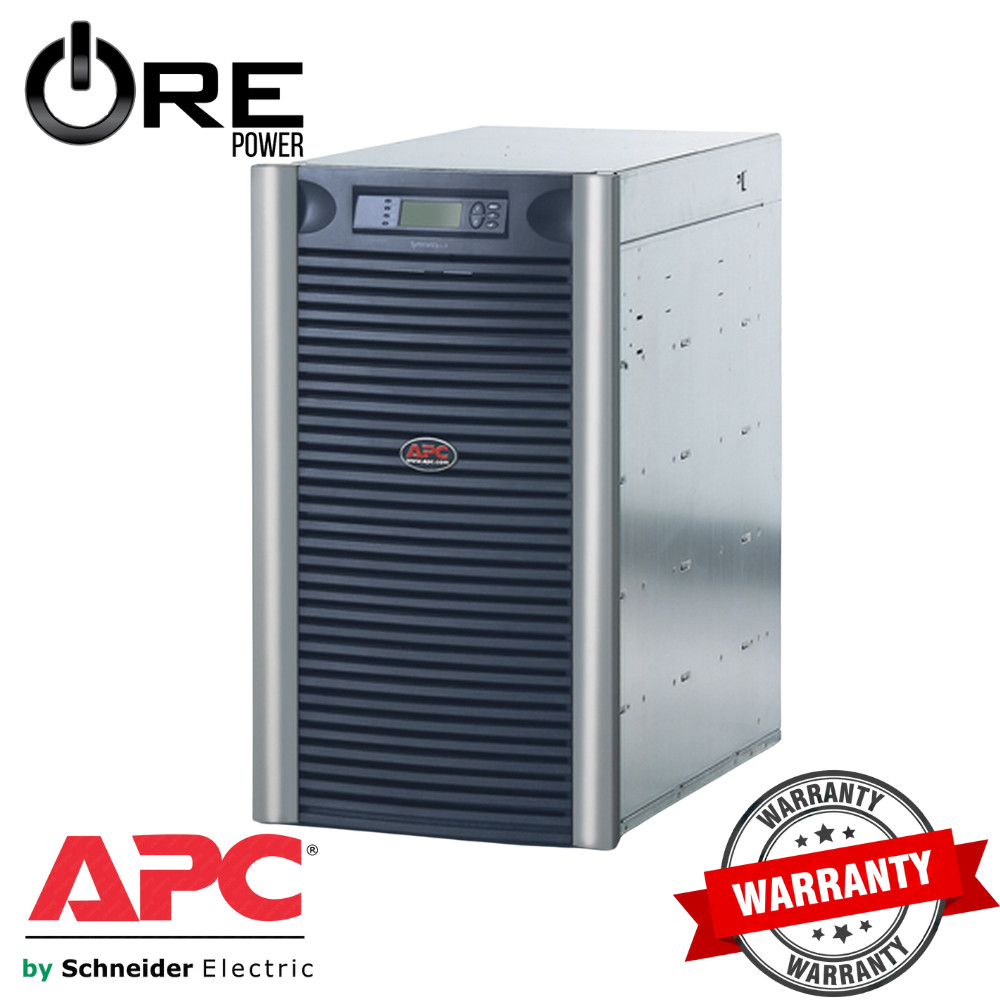

Refurbished system - includes power modules and battery pack tested and warranty 1 yearRun time for loadWinformation_strokeMin-max: 1280-12800 W5min 57sMax. Capacity Usedinformation_stroke100 %Main Input Voltage208 VProduct or Component TypeUninterruptible power supply (UPS)Other Input Voltage240 VMain Output Voltage120 V
208 VOther Output Voltage240 VKw Rating12800 WRated power in VA16000 VAoutput connection type8 NEMA L5-20R
4 NEMA L14-30ROutput connector typeHard Wire 4-wire (2PH+N+G) 1Number of rack unit19UBattery TypeLead-Acid batteryProvided equipmentCD with software
Documentation CD
Installation guide
Rack Mounting support rails
Temperature Probe
User Manual
Web/SNMP Management CardRange of ProductSymmetra LXBatteries & RuntimeRun TimeView Runtime GraphEfficiencyView Efficiency GraphIncluded Battery Modules4Battery Slots Empty0Typical recharge time3 hAdditional informationConfigurable for 120/208 or 120/240 output voltageBattery Charge Power (Watts)1148 W ratedBattery life3…5 year(s)Extendable Run Time1Generalproduct web sub-family4kVA power incrementsNumber of power module free slots1Number of power module filled slots4RedundantYesPhysicalcolorBlack
SilverHeight32.91 in (83.6 cm)Width18.58 in (47.2 cm)Depth27.09 in (68.8 cm)Net Weight632.33 lb(US) (286.82 kg)Mounting LocationFrontMounting preferenceLowerMounting ModeRack-mountedTwo post mountable0USB compatibleNoInputInput Frequency45...65 Hz auto-sensingNumber of input connectors1 Hard Wire 4-wire (2PH+N+G)Efficiency at full load96...138 V line to neutralInput Total Harmonic DistortionLess than 7% for full loadInput Power Factor at Full Load0.98OutputMax Configurable Power (Watts)12800 WHarmonic distortionLess than 5 % at full loadOutput Frequency (sync to mains)47...63 Hz sync to mains
60 Hz +/- 0.1 % for 60 Hz nominal not synced
50 Hz +/- 0.1 % for 50 Hz nominal not syncedCrest factorUp to 5 : 1TopologyDouble Conversion OnlineWave typeSine waveBypass typeInternal Bypass (Automatic and Manual)
Optional External BypassMaximum output current75 AMaximum configurable power in VA16000 VAConformanceProduct CertificationsCSAStandardsFCC Part 15 class A
OSHPD
UL 1778EnvironmentalAmbient air temperature for operation32…104 °F (0…40 °C)Relative Humidity0…95 %Operating altitude0...10000 ftAmbient Air Temperature for Storage5…113 °F (-15…45 °C)Storage Relative Humidity0…95 %Storage altitude0…15000 ft (0.0000000000…4572.0000000000 m)Acoustic level62 dBAOnline Thermal Dissipation4995 Btu/hCommunications & ManagementFree slots1Pre-Installed SmartSlot™ CardsNetwork management card 2 with environmental monitoringcontrol panelMulti-function LCD status and control consoleAlarmAudible and visible alarms : prioritized by severityEmergency Power Off (EPO)Yes
