ARRIS TouchStone TelePhony ModemCable Modem with all Original AccessoriesWBM760A DOCSIS 3.0
Please verify compatibility with your ISP and the style="font-family: "Times New Roman";">Operating Temperature °F (°C) +32 to +122 (0 to +50)

Operating Relative Humidity (Min-Max) 5-95%(Non condensing)

Storage Temperature °F (°C) -40 to +158 (-40 to +70)

Dimensions (HxWxD) in. (cm) 7.1 x 1.7 x 5.9 (18.0 x 4.3 x 15.0) - excluding F-connector

Weight lbs (kg) 1.0 (0.46)

Diagnostic LEDs Power, DS, US, Online, Link

Operating Temperature Operating Temperature °F (°C) +32 to +122 (0 to +50)

Interfaces

• RF Interface External ‘F’ type connector

• Ethernet Interfaces (bridged) 10/100/1000 Base-T Ethernet RJ-45

• Input Voltage (nominal ) 115-240 VAC 50/60 Hz

• Power Consumption (W) 7 (idle), 9 (max.)


RF Downstream

• Frequency Range (MHz) 108 to1002

• Bonded Channels up to 4

• Capture Bandwidth (MHz) 96 (typical)

• Carrier Bandwidth (MHz) 6

• Modulation (QAM) 64 or 256

• Data Rate (Mbps) Data Rate (Mbps) up to 160

• RF Input Sensitivity Level (dBmV) -15 to +15

• Total Input Power (40 to1002 MHz, dBmV Max.) 33


RF Upstream

• Frequency Range (MHz) 5-42

• Bonded Channels Up to 4

• Modulation QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM & 128 QAM (S-CDMA only)

• Data Rate (Mbps) (Max.) up to 122

• RF Output Level (dBmV – one channel)
• A-TDMA +17 to 57 dBmV (32 QAM, 64 QAM); +17 to 58 dBmV (8 QAM, 16 QAM); +17 to 61 dBmV (QPSK)
• S-CDMA +17 to +56 dBmV (all modulations)

• Automatic Level Adjust Yes

• Frequency Stability (kHz) ±5

• Output Impedance (Ohms) 75

• Notes:
• A-TDMA max output power reduced 3dB when transmitting two TDMA max output power reduced 3dB when transmitting twochannels and 6dB when transmitting 3 or 4 channels

• S-CDMA max output reduced 3dB when transmitting 2 or more 3.0
• UL® 60950
• FCC Part 15 Class B
• CE, CB
• eK/MIC
• RoHS, WEEE
• IEEE 802.3, IEEE 802.3ab
• WHQL, USB-IF

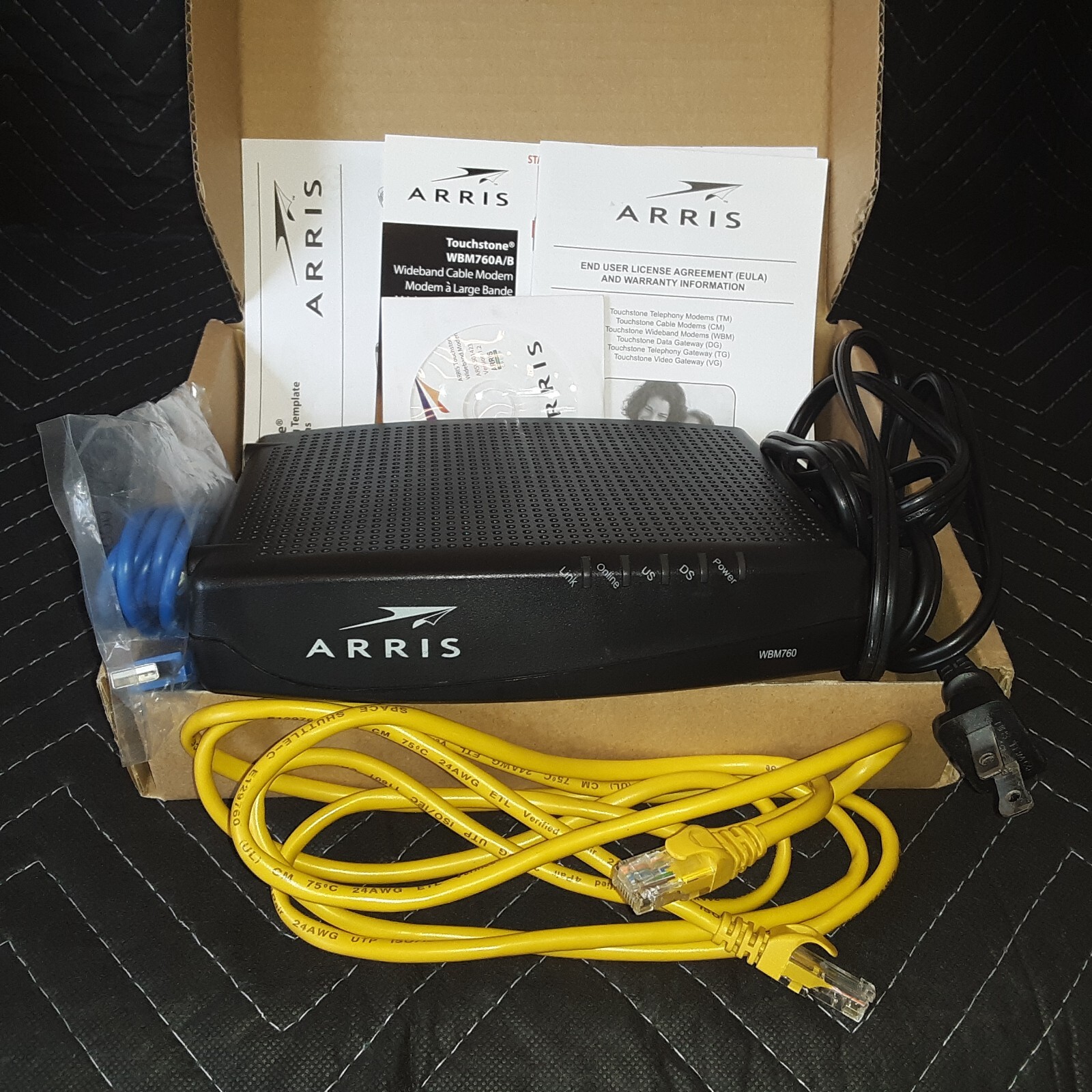

Condition: USED, Tested, Working. Complete with all Original Accessories, and Original Product Box. Ethernet cable missing one locking tab.For use with Cable Broad Band Connection.Comcast, Xfinity,TDS Telecom, etc.Manufacturer's Part Number: WBM760A.Please verify compatibility with your ISP.
Retail packaging included. Includes all original accessories and product manuals.
