Honest Seller
Trusted, Qualified and Recognized Seller
We promised all the Items will be tested earnestly before shipping, ensure it 100% working in orders.
Package Included:

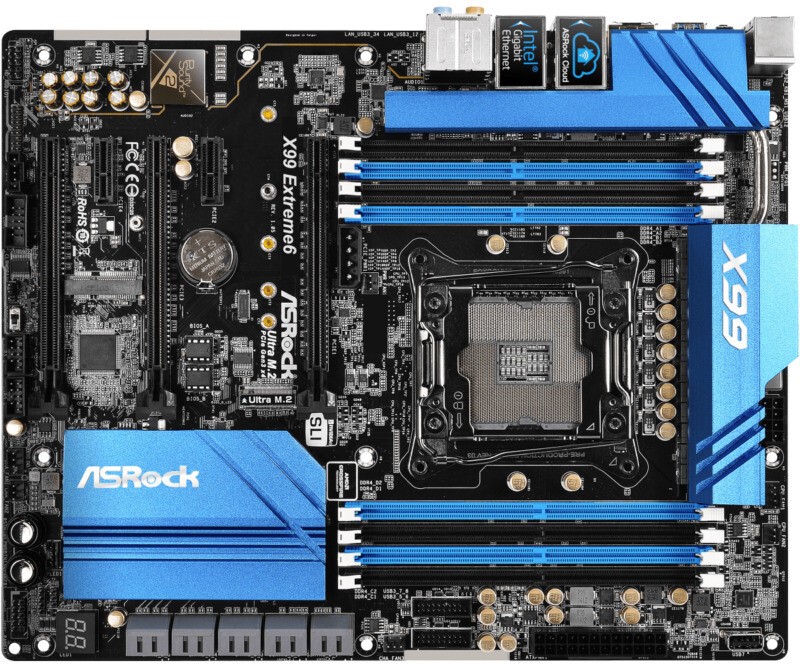

1 x motherboard
1 x I/O back panel
2 x SATA II cable
Technical Tips:
A. Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C.If the motherboard can't run correctly, please first check your CPUwhether can be compatible with our motherboard, then check your videocard or power supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.
Parts Specification:
CPU
- Supports Intel® Core™ i7 and Xeon® 22-core processor families in LGA 2011-3 form factor sockets
- Digitally powered
- Supports Intel® Turbo Boost 2.0 Technology
- Support free overclocking technology
Chipset
-Intel® X99
RAM
- Quad channel DDR4 memory technology
- 8 x DDR4 memory slots
- Support DDR4 (non-ECC), un-buffered memory
- Support (non-ECC) RDIMM (Registered DIMM)
- Intel® Xeon® E5 series processors in LGA 2011-3 form factor sockets support DDR4 ECC, un-buffered memory modules/RDIMM memory modules
- Maximum system memory: 128GB (with Core™ i7 Broadwell-E CPU) or 64GB (with Core™ i7 Haswell-E CPU) or 256GB (with Xeon® CPU)
- Supports Intel® Extreme Memory Profile (XMP) 2.0 technology
- DIMM sockets feature 15µ gold plated headers
*Due to operating system limitations, the actual memory that can be used under Windows® 32-bit operating system will be less than 4GB. Using a 64-bit CPU under Windows® 64-bit operating system does not have this limitation.
BIOS
- 2 x Multilingual 128Mb AMI UEFI Legal BIOS with GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports secure backup UEFI technology
- Compliant with ACPI 5.0, supports Wake Up Events
- Support SMBIOS 2.7
- CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multifunction Regulator
Sound effect
- 7.1 channel high definition audio with content protection function (Realtek ALC1150 audio codec)
- Support high quality Blu-ray sound
- Support anti-surge (ASRock full protection)
- Support Hi-Fi II
- Nichicon Fine Gold Professional Audio Capacitor
- 115dB SNR D/A converter with differential amplifier
- TI® NE5532 Premium Headphone Amp (supports headphones up to 600 ohms)
- Direct drive technology
- EMI shielding cover
- PCB isolation shield
- Support DTS connection
local area network
- 1 x Intel® I218V (Gigabit LAN PHY 10/100/1000 Mb/s)
- 1 x Qualcomm® Atheros® AR8171 (PCIE x1 Gigabit LAN 10/100/1000 Mb/s)
- Supports Qualcomm® Atheros® Secure Wake-on-Internet Technology (on Qualcomm® Atheros® AR8171)
- Support Wake-On-LAN function
- Support anti-lightning / anti-ESD static electricity (ASRock full protection)
- Supports Energy Efficient Ethernet 802.3az
- Support PXE
Expansion slot
- 3 x PCI Express 3.0 x16 slots (PCIE1 x16 mode; PCIE3 x16 mode; PCIE5 x8 mode)*
- 2 x PCI Express 2.0 x1 slots
- 1 x mini-PCI Express slot
- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
- Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™***
- VGA PCIe slot with 15µ gold plated headers (PCIE1 and PCIE3)
*If you install a 28-line processor, the PCIE1/PCIE3/PCIE5 slots will operate in x16/x8/x4 mode.
**The PCIE5 slot will be closed if an M.2 PCI Express module is installed.
***If you install a 28-line processor, 3-way SLI™ technology is not supported.
****Please install a 40-line processor to support 3-Way SLI™.
Storage
- 10 x SATA3 6.0 Gb/s ports, supports RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid Storage Technology 13), NCQ, AHCI, Hot Plug and ASRock HDD Manager*
- 1 x eSATA port, support NCQ, AHCI and hot plug
- 1 x Super M.2 connector, supports M Key M.2 SATA3 6.0 Gb/s and M.2 PCIe modules to Gen3 x4 (32 Gb/s)
*SSATA3_3 port shares resources with eSATA port, SSATA3_2 port shares resources with Super M.2 port
**Only SATA3_0 ~ SATA3_5 connectors support RAID settings.
Onboard interface
- 1 x COM port header
- 1 x TPM header
- 1 x Power LED Header
- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
- 3 x Chassis Fan Connectors (1 x (4-pin), 2 x (3-pin)) (Smart Fan Speed Control)
- 1 x Power Fan Connector ((3-pin))
- 1 x 24-pin ATX power connector
- 1 x 8-pin 12V Power Connector (High Density Power Connector)
- 1 x HDD Manager Port
- 1 x PCIe Auxiliary Power Port
- 1 x front panel audio jack
- 1 x Thunderbolt™ header*
- 2 x USB 2.0 pin headers (supports 4 USB 2.0 ports) (supports ESD protection (ASRock full protection))
- 1 x Vertical Type A Connector USB 2.0
- 2 x USB 3.1 Gen1 headers (supports 4 USB 3.1 Gen1 ports) (supports ESD protection (ASRock full protection))
- 1 x Dr. Debug with LED
- 1 x Power Switch with LED
- 1 x reset switch with LED
- 1 x BIOS selector switch
*Please update to the latest BIOS to support Thunderbolt™ technology.
I/O port on the rear panel
- 1 x PS/2 keyboard/mouse port
- 1 x Optical SPDIF digital audio output port
- 1 x eSATA port
- 2 x USB 2.0 ports (supports ESD protection (ASRock full protection))
- 4 x USB 3.1 Gen1 ports (ASMedia ASM1074 hub) (supports ESD protection (ASRock Full Protection))
- 2 x USB 3.1 Gen1 ports (ASMedia ASM1042) (supports ESD protection (ASRock Full Protection))
- 2 x RJ-45 LAN connector LED indicators (ACT/LINK LED and SPEED LED)
- 1 x CMOS data clear switch
- HD Audio Jacks: Rear / Center / Bass / Line In / Front / Mic
Dimensions
- ATX
OS
- Supports Microsoft® Windows 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
