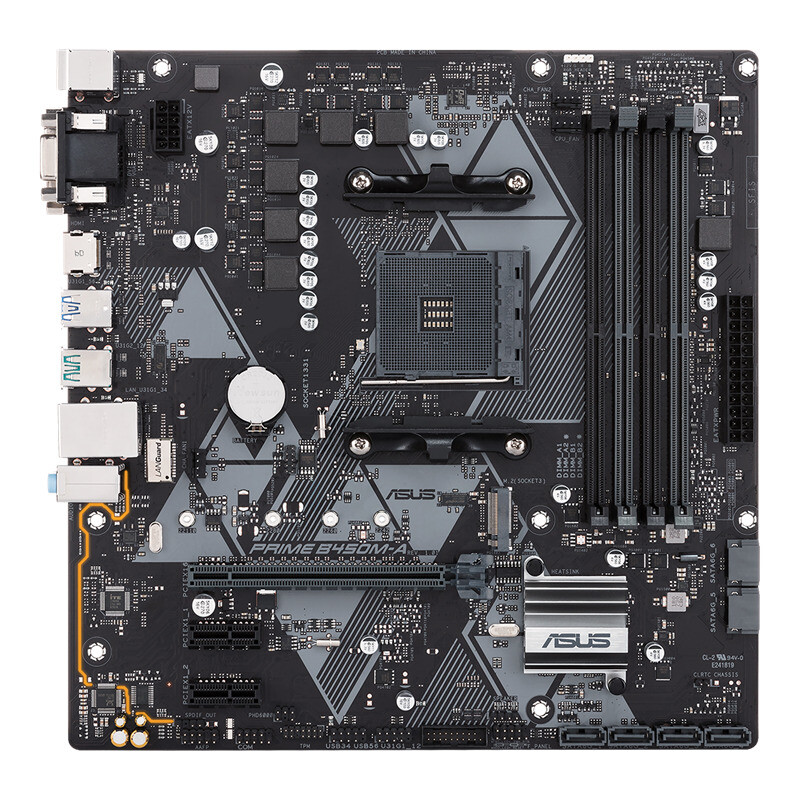

ASUS PRIME B450M-A Motherboard AMD B450 AM4 DDR4 mATX D-Sub Ryzen USB 3.1

CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* The maximum memory frequency supported varies by Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Multi-VGA output support : HDMI/DVI-D/D-Sub ports

- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

Expansion Slots

3rd/2nd/1st Gen AMD Ryzen™ Processors

1 x PCIe 3.0/2.0 x16 (x16 mode)

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

1 x PCIe 3.0/2.0 x16 (x8 mode) *1

AMD Athlon™ with Radeon™ Vega Graphics Processors

1 x PCIe 3.0/2.0 x16 (max at x4 mode)

AMD B450 chipset

2 x PCIe 2.0 x1

Storage

AMD B450 chipset :

4 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :

2 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2

AMD Athlon™ with Radeon™ Vega Graphics Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA RTL8111H, 1 x Gigabit LAN Controller(s)

ASUS LAN ALC887 8-Channel High Definition Audio CODEC

Audio Feature :

- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :

4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)

AMD B450 chipset :

2 x USB 3.1 Gen 2 port(s) (2 at back panel, )

AMD B450 chipset :

2 x USB 3.1 Gen 1 port(s) (2 at mid-board)

AMD B450 chipset :

4 x USB 2.0/1.1 port(s) (4 at mid-board)

Back I/O Ports

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x DVI-D

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 2

4 x USB 3.1 Gen 1

3 x Audio jack(s)

Internal I/O Ports

1 x Aura RGB Strip Header

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x TPM header

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

2 x Chassis Fan connector(s) (2 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

1 x Speaker Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

Operating System

Windows® 10 64-bit

Windows® 7 64-bit *3

Form Factor

mATX Form Factor

9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.


• The above pictures are for reference only, please refer to the actual product received.
