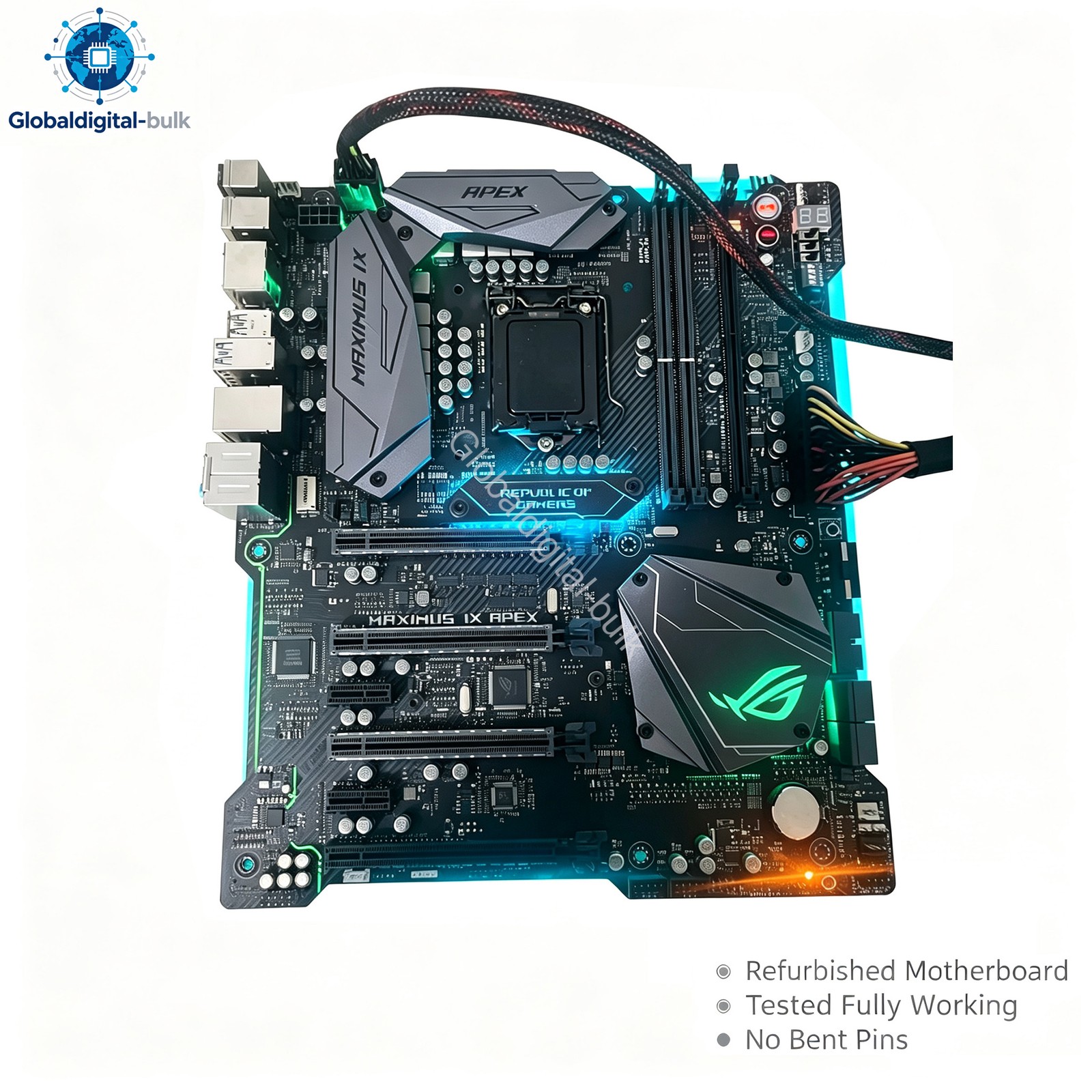

ASUS ROG MAXIMUS IX APEX Motherboard E-ATX Intel Z270 LGA1151 DDR4 SATA3 HDMI DPCPUIntel for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron ProcessorsSupports Intel 14nm CPU* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.ChipsetIntel Z270Memory2 x DIMM, Max. 32GB, DDR4 MHz Non-ECC, Un-buffered Memory* Hyper DIMM support is subject to the physical characteristics of individual CPUs.GraphicIntegrated Graphics Processor- Intel HD Graphics supportMulti-VGA output support : HDMI/DisplayPort ports- Supports HDMI with max. resolution 4096 x 2160/24Hz- Supports DisplayPort with max. resolution 4096 x 2304/60 HzMaximum shared memory of 1024 MB (for iGPU exclusively)Multi-GPU SupportSupports NVIDIA Quad-GPU SLI TechnologySupports NVIDIA 2-Way SLI™ TechnologySupports AMD 4-Way CrossFireX TechnologyExpansion Slots2 x PCIe 3.0/2.0 x16 (x16 or dual x8, gray)1 x PCIe 3.0/2.0 x16 (max at x4 mode, gray)2 x PCIe 3.0/2.0 x1 (black)1 x PCIe 3.0/2.0 x16 (x4 mode, black)StorageSupports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect TechnologyIntel Optane Memory Ready *1Intel Z270 Chipset :1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)4 x SATA 6Gb/s port(s)Support Raid 0, 1, 5, 10LANDual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)Intel I219V, 1 x Gigabit LAN Controller(s)ASUS LAN GuardAudioROG SupremeFX8-Channel High Definition Audio CODEC S1220A*2- Impedance sense for front and rear headphone outputs- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- ESS ES9023PAudio Feature :- SupremeFX Shielding™ Technology- Optical S/PDIF out port(s) at back panelUSB Ports8 x USB 3.0 port(s)Intel Z270 Chipset : *32 x USB 3.1 port(s) (2 at back panel, , Type-A + USB Type-CTM)Intel Z270 Chipset :ASMedia USB 3.1 Gen 2 controller :6 x USB 2.0 port(s)Back I/O Ports2 x USB 3.1 Gen 2 ()Type-A + USB Type-CTM,6 x USB 3.1 Gen 11 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)1 x Optical S/PDIF out1 x Clear CMOS button(s)1 x USB BIOS Flashback Button(s)5 x Gold-plated audio jacksInternal I/O Ports1 x AAFP connector2 x DRAM channel jumper2 x Thermal sensor connector1 x 3D Mount screw port(s)9 x ProbeIt Measurement Points3 x 4-pin Full Speed Fan connectors1 x MemOK! Button3 x onboard LED ON/OFF jumper(s)1 x W_Pump+ Header3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)1 x System panel(s) (Q-Connector)1 x EZ Plug connector(s) (4-pin Molex power connector)1 x BIOS Switch button(s)1 x Slow Mode jumper(s)1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)1 x PCIe x16 lane switch1 x PAUSE Switch1 x RSVD Switch2 x Aura RGB Strip Header(s)1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x 24-pin EATX Power connector(s)2 x 8-pin ATX 12V Power connector(s)1 x Reset button(s)1 x LN2 Mode jumper(s)1 x Safe Boot button1 x ReTry button1 x 14-1 pin TPM connector1 x AIO PUMP Header1 x W_IN header1 x W_OUT header1 x W_FLOW header1 x Start buttonOperating SystemWindows 8.1 64-bit *4Windows 7 32-bit *4Windows 7 64-bit *4Windows 10 64-bitForm Factor12 inch x 10.7 inch ( 30.5 cm x 27.2 cm )Extended ATX Form Factor
Please note: This product does not include batteries as they are prohibited items.
All motherboards in this store are used motherboards. Motherboards are updated rapidly, so the pictures displayed on the page may not match the actual ones. Please contact customer service to obtain the latest actual pictures
