1. Basic Information

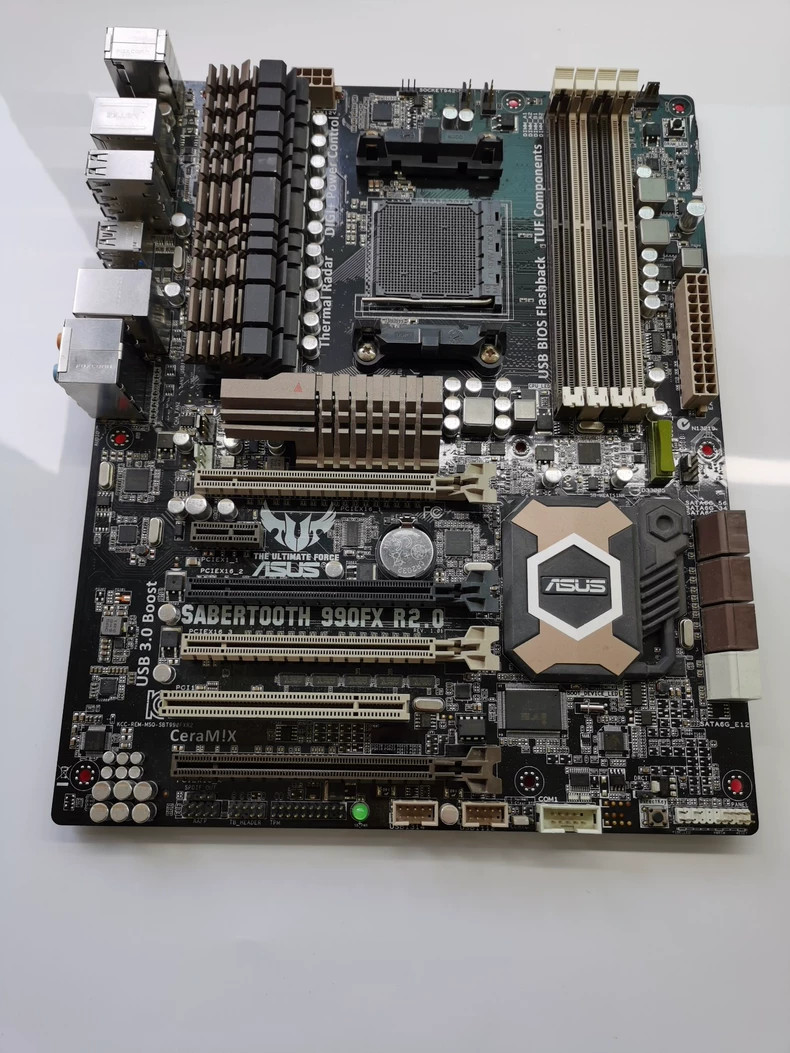

• Model: ASUS SABERTOOTH 990FX R2.0 (TUF Series)
• Platform: AMD 990FX+SB950 Chipset, AM3+ Socket ATX Motherboard
• Usage: AMD FX flagship platform, enthusiast gaming, multi-GPU, long-term stability
• Form Factor: ATX (30.5×24.4cm), standard chassis compatible
• Features: Military-grade components, TUF CeraM!X cooling, 8+2 phase, PCIe 2.0, 6×SATA III
• Condition: Fully tested, stable & reliable

2. CPU Support (AM3+ Compatible, Up to 140W)

• Socket: AM3+ (backward compatible with AM3)
• Supported CPUs:
  • AMD FX Series: FX-8350/FX-8370 (8-core, up to 140W, no FX-9590 220W)
  • Phenom II: X4/X6 full series
  • Athlon II: X2/X3/X4 full series
  • Sempron 100 series
• Bus: HyperTransport 3.0, up to 5.2GT/s
• Overclocking: Full FX overclocking supported (990FX flagship OC chipset)

3. Power & Cooling (TUF Military-Grade 8+2 Phase)

• Power Design: 8+2 Phase Digital VRM (8-core+2-SOC), all-solid capacitors, military alloy chokes/MOSFETs
• PCB: 6-layer reinforced, stable under high load
• Cooling: TUF CeraM!X ceramic-coated heatsinks for VRM/NB, 50% better cooling; fanless silent design
• Protection: TUF ESD Guards, LANGuard, SafeSlot reinforcement

4. Memory Specifications (DDR3 Dual-Channel, Up to 32GB)

• Slots: 4×DDR3 DIMM (Dual-Channel)
• Max Capacity: 32GB (4×8GB)
• Frequency: DDR3 1866/1600/1333/1066 MHz (XMP supported)
• Type: ECC/non-ECC, unbuffered

5. Expansion Slots (Multi-GPU, 4-Way CrossFire/SLI)

• PCIe 2.0 x16 ×3: Dual x16/x16 or triple x16/x8/x8, 4-way AMD CrossFireX/NVIDIA SLI
• PCIe 2.0 x16 ×1 (black, x4 mode): SSD/NIC expansion
• PCIe 2.0 x1 ×1: Sound/capture card
• PCI ×1: Legacy industrial card

6. Storage (6×SATA, No M.2, RAID Supported)

• SATA III 6Gb/s ×6: SB950 native, RAID 0/1/5/10 supported
• M.2: No M.2 slot (missing on R2.0, added on R3.0)
• Others: SATA DOM connector (diskless boot)

7. Networking & Rear I/O (USB 3.0 + GbE)

• LAN: Realtek RTL8111F Gigabit, TUF LANGuard
• Rear Ports:
  • USB 3.0 ×2 (5Gbps)
  • USB 2.0 ×8
  • Video: None (dGPU required)
  • Audio: Realtek ALC892 8-channel, TUF Audio noise reduction
  • Others: PS/2, COM, BIOS Flashback, Debug LED
  Please note: This product does not include batteries as they are prohibited items.
  All motherboards in this store are used motherboards. Motherboards are updated rapidly, so the pictures displayed on the page may not match the actual ones. Please contact customer service to obtain the latest actual pictures
