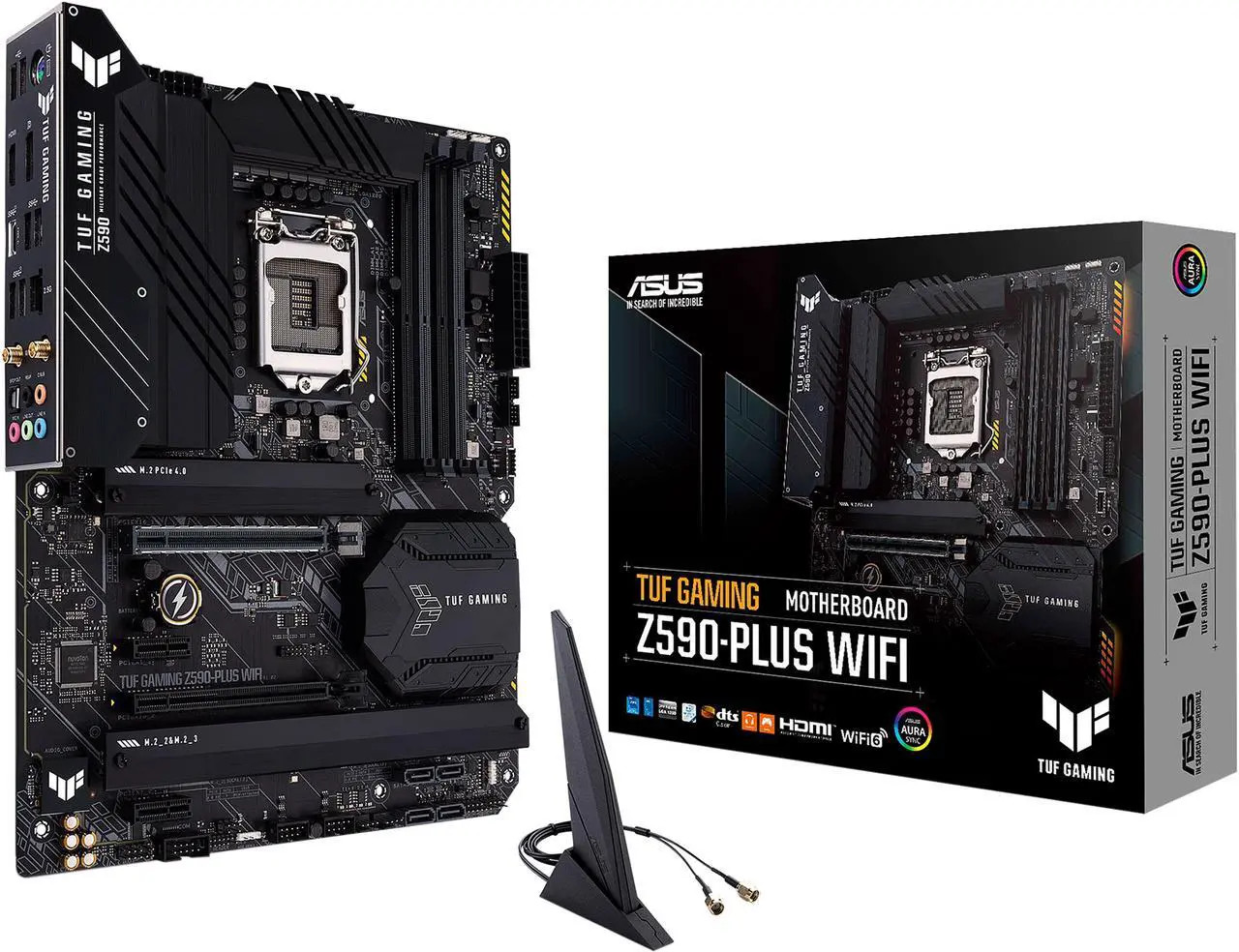

On May 28, 2025 at 21:45:28 PDT, seller added the following information:ModelBrandASUSModelTUF GAMING Z590-PLUS WIFISupported CPUCPU Socket Type LGA 1200CPU TypeSupports 11th / 10th Gen Intel Core Processors
Supports Intel Pentium Gold / Celeron Processors
* Refer to www.asus.com for CPU support list.Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetsChipset Intel Z590Onboard VideoOnboard Video Chipset Supported only by CPU with integrated graphicMemoryNumber of Memory Slots4x288pin (DDR4)Memory StandardDDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*
* 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively.
* 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.Maximum Memory Supported128GBChannel Supported Dual ChannelExpansion SlotsPCI Express 4.0 x161 x PCI Express 4.0 x16*
* Actual support may vary by CPU.PCI Express 3.0 x161 x PCI Express 3.0 x16*
* Supports x4 mode.PCI Express x12 x PCIe 3.0 x1Storage DevicesSerial ATA (SATA) 6 x SATA 6Gb/sM.2Intel 11th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel Z590 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)**
* M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled.Intel Optane ReadyTo enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.Onboard AudioAudio Chipset Realtek ALC S1200AAudio Channels 7.1 ChannelsOnboard LANLAN ChipsetIntel I225-VMax LAN Speed2.5GbpsWireless LANIntel Wi-Fi 6
802.11 a/b/g/n/ac/axBluetoothBluetooth 5.0Rear Panel PortsBack I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo portInternal I/O ConnectorsOnboard USB1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 portsOther ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3-pin System Panel header with Chassis intrude function
1 x Thunderbolt headerSoftware FeatureWindows 11SupportedPhysical SpecForm FactorATXLED LightingRGBPower Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connectorFeaturesFeaturesSpecial Features:
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- TUF LANGuard
- Overvoltage Protection
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software Features:
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS:
192 (128+64) MB Flash ROM, UEFI AMI BIOS
Manageability:
WOL by PME, PXE
Operating System:
Windows 10 64-bitPackagingPackage ContentsAccessories:
Cables:
2 x SATA 6Gb/s cables
Miscellaneous:
1 x ASUS Wi-Fi moving antennas
2 x M.2 Rubber Packages
1 x M.2 SSD screw package
1 x TUF Gaming sticker
Installation Media:
1 x Support DVD
Documentation:
1 x TUF Certification card
1 x User manualOn Nov 2, 2025 at 19:49:22 PST, seller added the following information:
