ATEN CL5708M-A1A-AAB 8-Port 17" Single Rail Slideaway LCD KVM Switch
NOS / New Old Stock — original ATEN box, Ingram Micro distribution, unused in factory foam.

Manufacturer: ATEN International Co., Ltd.
Model: CL5708M (17" LCD version of the CL5708 Slideaway series)
Full P/N on carton: CL5708M-A1A-AAB
Keyboard: US English
Power: 120V US cord
Made in Taiwan
UPC/EAN: 6 72792 10058 1 / 4 710423 775350

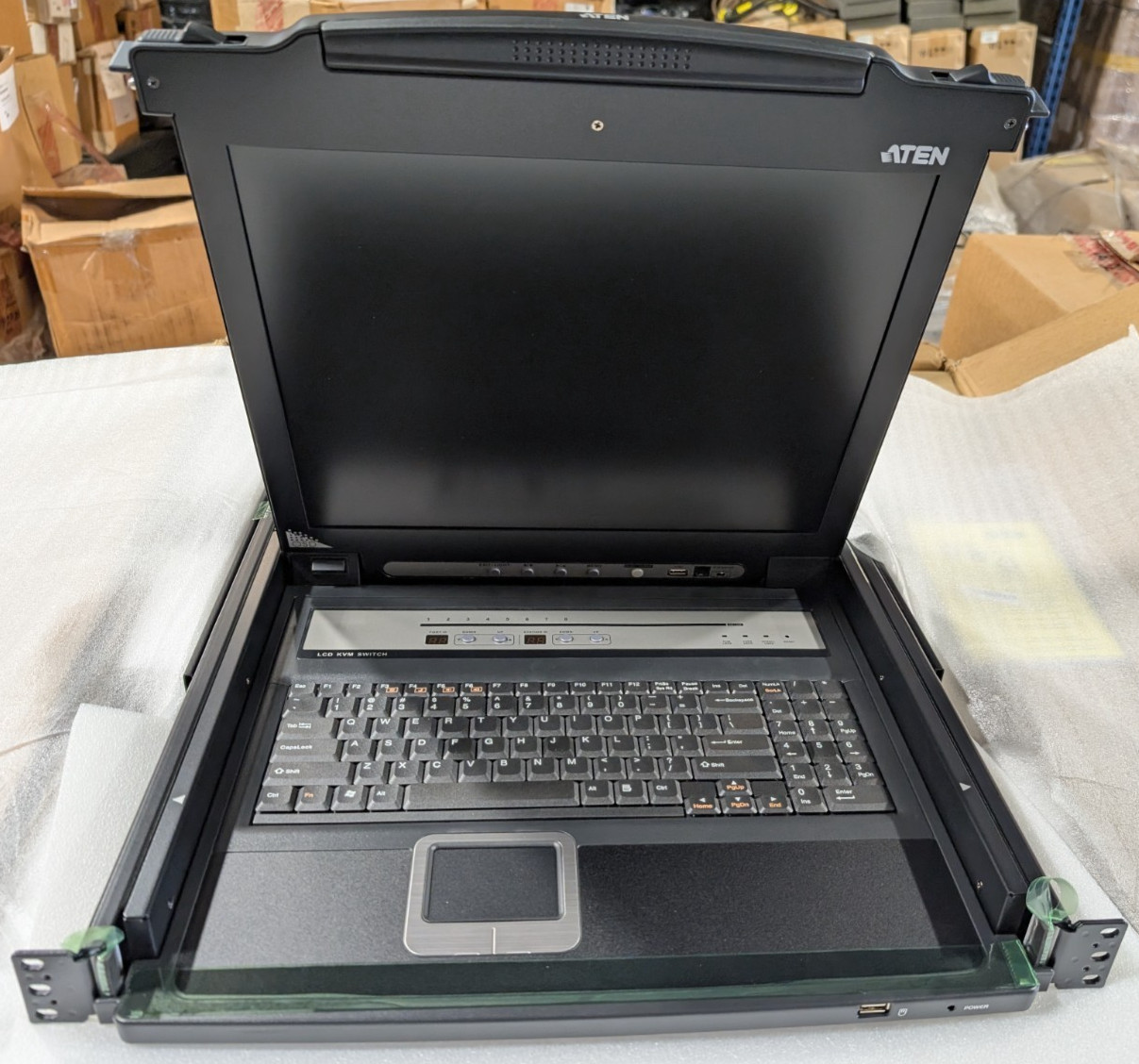

This is the integrated 1U rack console: 17" LED-backlit TFT LCD + 105-key keyboard + touchpad in a sliding single-rail housing. Controls 8 computers directly; daisy-chain up to 31 compatible ATEN switches (CS1708A/CS1716A, ACS1208A/ACS1216A, etc.) for 256 computers from one console.

• LCD: 17" TFT, 1280 x 1024 @ 75 Hz, 250 cd/m², 1000:1 contrast, 5 ms, 170°/160° viewing
• Video input: up to 1920 x 1200 @ 60 Hz (DDC2B)
• Computer connections: 8 x SPHD-15 female (yellow) — PS/2 or USB auto-detect
• Daisy-chain: 1 x DB-25 male
• Extra console port: 1 x SPHD male (external KVM)
• Front USB Type-A (hot-plug mouse or USB peripheral sharing when using USB KVM cables)
• Firmware upgrade: RJ-11
• Power: IEC C14, 100–240 V, ~24 W
• Dimensions: approx. 48.0 x 64.3 x 4.4 cm (1U)
• Weight: ~13.5 kg unit / 17.62 kg boxed
• Platform support: Windows, Linux, Mac, Sun, etc.
• Selection: OSD, hotkeys, front-panel buttons + 7-segment port/station LEDs
• Exclusive ATEN LED keyboard/touchpad light
• Modular: KVM section detachable for service

What’s in the original box (per factory checklist / carton)

• CL5708M unit with standard rack-mount kit
• 2 x custom KVM cables
• 1 x 5-in-1 console cable
• 1 x firmware upgrade cable
• 1 x power cord
• 1 x long rack-mount kit
• Documentation

Unit has never been racked. Protective tape still on the rails and bezel. Photos show the exact unit and original packaging. Opened only for photos and inspection. Ships in the original box - no outer box was provided.
