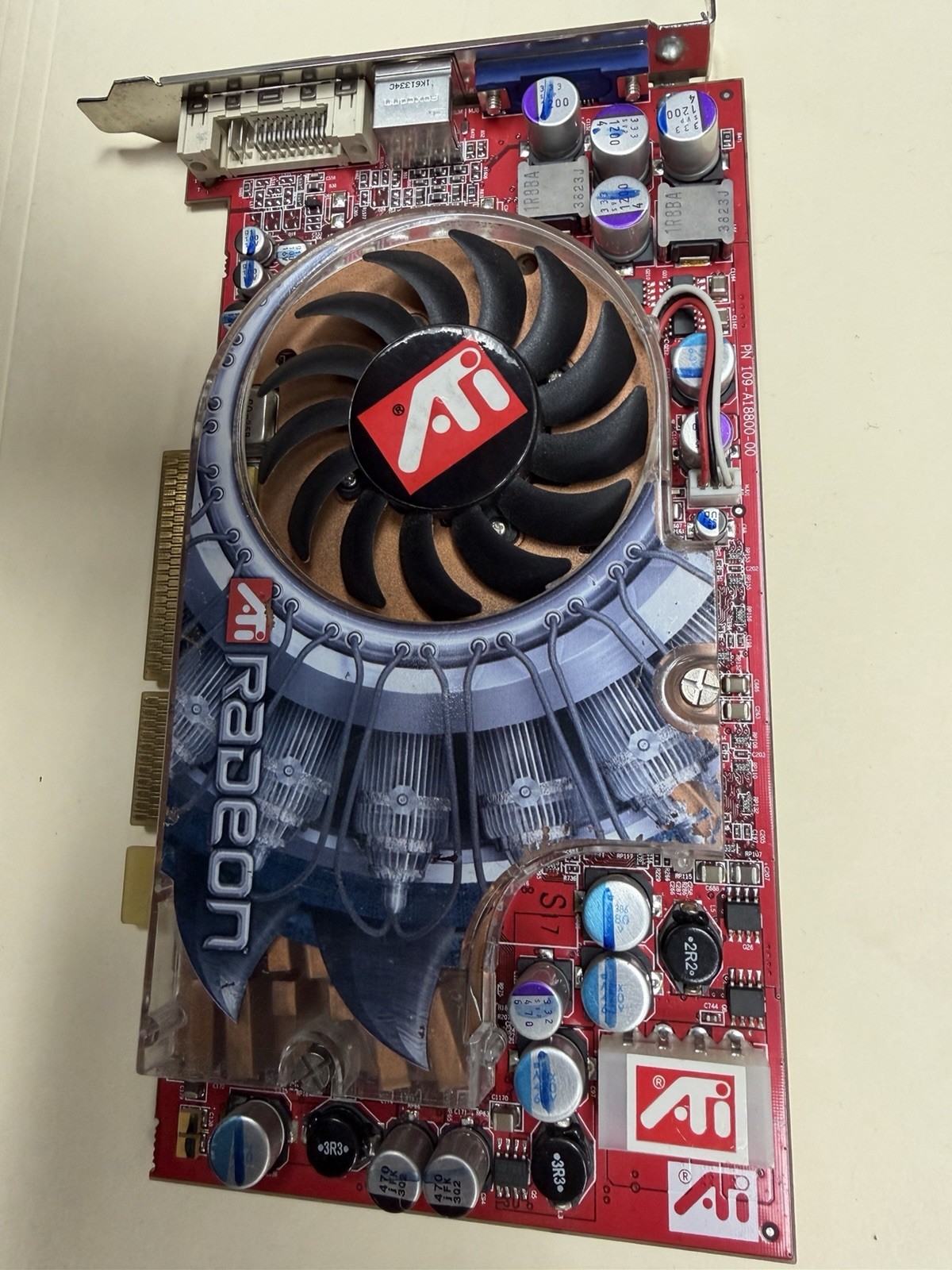

ATI Radeon 9800 XT, 256MB DDR on a 256-bit bus, AGP 8x. Reference board.

The last flagship of ATI’s R300 generation and the card that defined the end of the AGP era — 412 MHz core, DirectX 9.0, and the GPU ATI shipped Half-Life 2 vouchers with. Genuine 256MB XT, not a 9800 Pro or a 128MB variant.

Specifications

• GPU: ATI Radeon 9800 XT (R360), 412 MHz core

• Memory: 256MB DDR, 256-bit bus

• Interface: AGP 8x / 4x, 1.5V

• Outputs: DVI-I, VGA (D-Sub), 9-pin mini-DIN video out

• Cooling: ATI reference copper cooler with rear copper heat spreader, both present

Board identifiers

• P/N: 102A1880701

• Board: 109-A18800-00

• Serial: 180345 006187

• Retention bar: 7120008600-750087-091803

• Factory QC mark on reverse: TEST PASS 53

Requirements

• AGP 8x/4x 1.5V slot. Will not run in older 3.3V AGP slots.

• One 4-pin Molex connection from the power supply.

• 350W or better recommended.

Condition

Used, pulled from service. Honest wear for a 2003 card: light tarnish on the copper heatsink and scuffing on the clear shroud, both pictured. No bulging or leaking capacitors. No bent pins, no missing components, no repairs or reflows. Photos are of the actual card you will receive.

Not included

Video-out dongle, drivers, cables, or original packaging. Card only.

Ships full insured with tracking and signature required for delivery.

(Buyer note: box 2 55)
