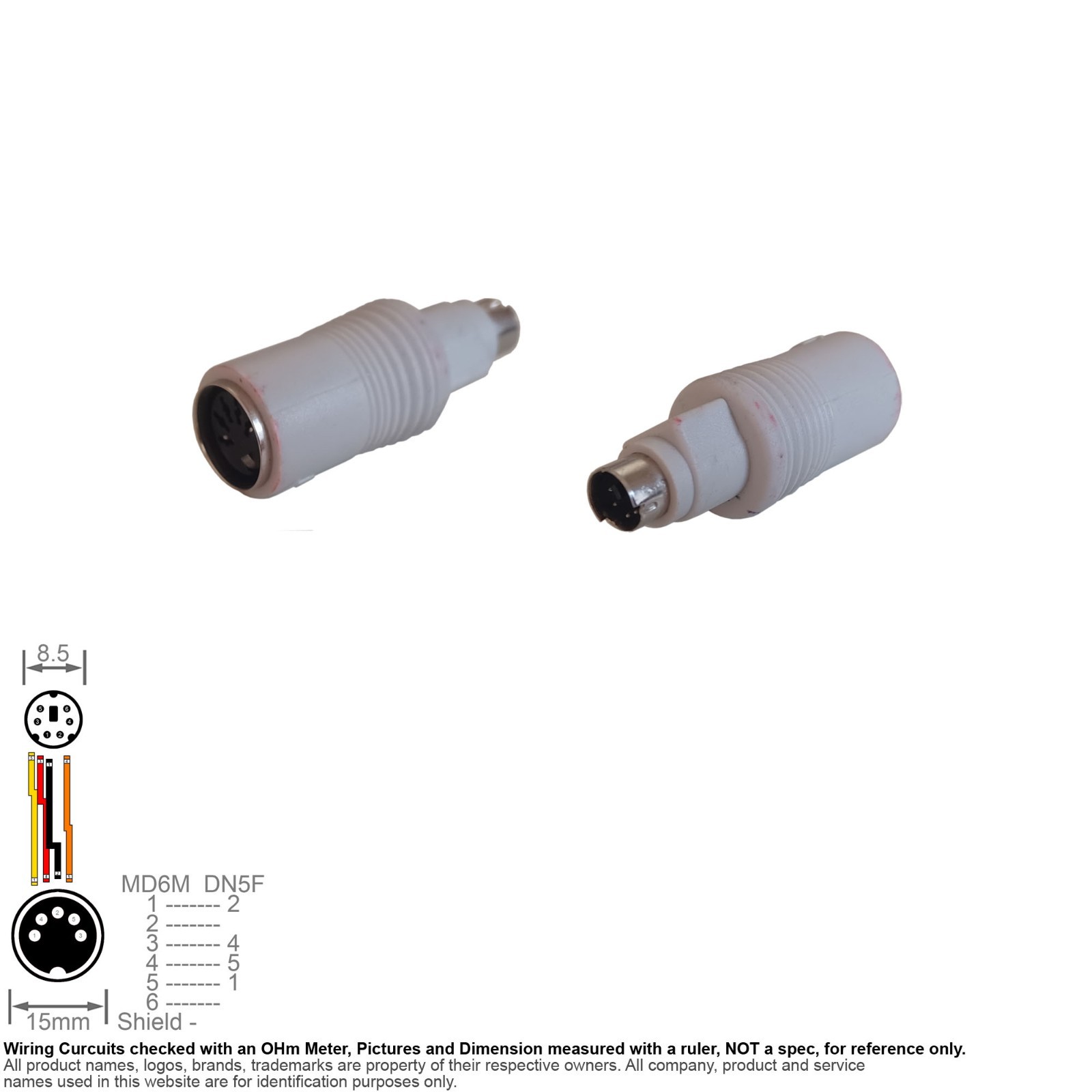

Adapter DIN 5-Pin Female Mini-Din 6-Pin Male AT Keyboard PS2 Port
Price: US $2.20
Description: Adapter AT PS2 Connecting IBM Compatible AT Keyboard to PS2 Port System DIN 5-Pin 180° Female Mini-DIN 6-Pin Male Unbranded Molded Connector SKU 160519
Manufacturer: Not Specified
Brand or Distributor: Unbranded
Model: (& Compatible Models)
Seller's SKU 160519
Connector:
DIN 5-Pin 180° Female
Mini-DIN 6-Pin Male
Pinout: (Wiring Circuits checked with an Ohm Meter, not a Spec, for reference only.)
MD6M 1 - DN5F 2
MD6M 2 - NC
MD6M 3 - DN5F 4
MD6M 4 - DN5F 5
MD6M 5 - DN5F 1
MD6M 6 - NC
Shield - NC
Dimension:
DIN 5-Pin Shield O.D.: 15mm
Mini-DIN 6-Pin Shield O.D.: 8.5mm
Overall: 2-inch (0.8" Dia)
Weight: 0.6 oz (Estimated Shipping Weight: 3 oz)
Condition:(Subject to Availability)
SKU ______U - Used, with signs of cosmetic wear.
Packaging:Non-Retail Packaging, in Unprinted Box or Plastic Bag.
For use with or pulled from: (for reference only)
Connecting an IBM Compatible AT Keyboard to PS2 Port System
