Appearance: UsedFunctionality: Untested

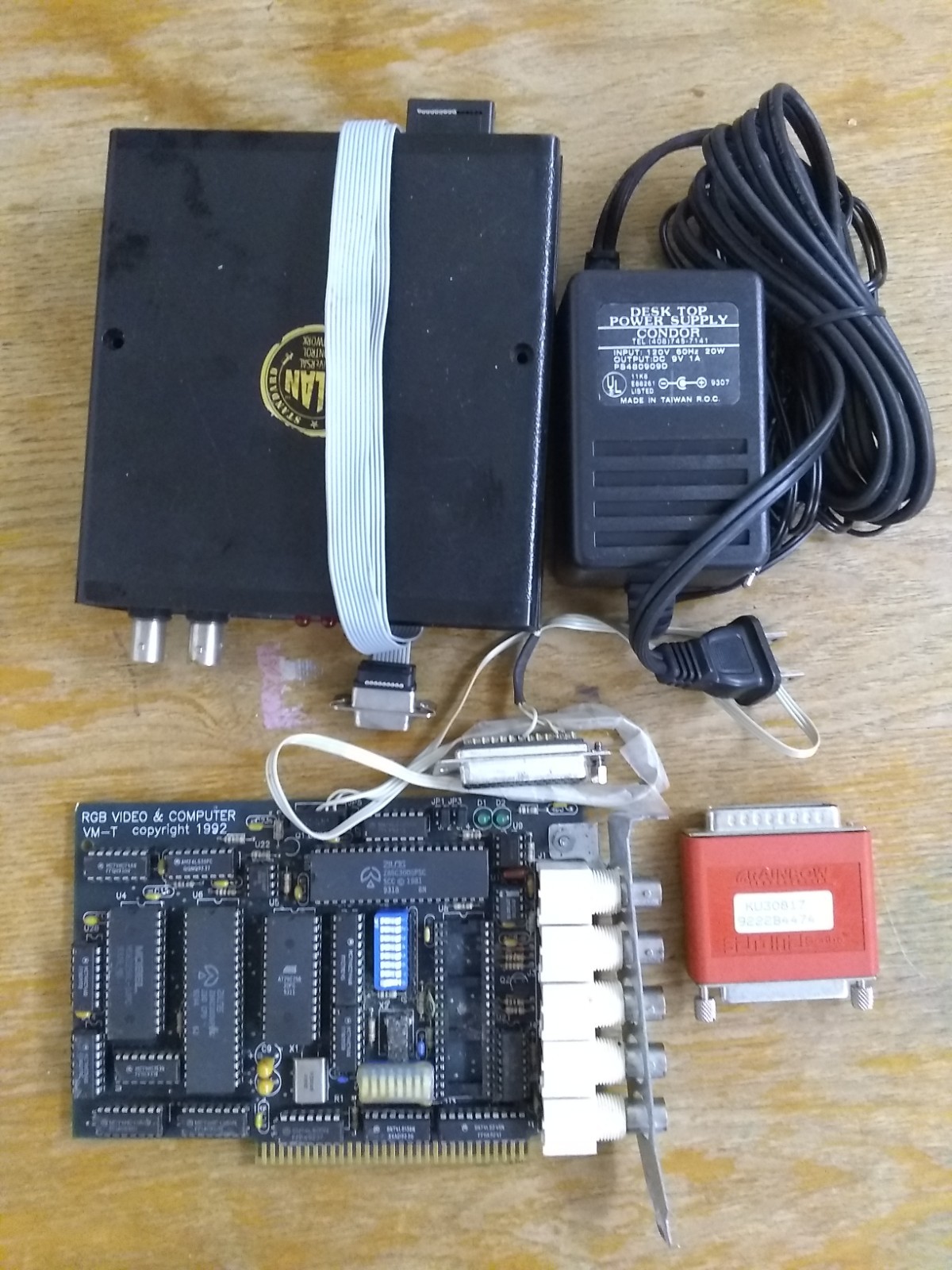

Description:============As pictured, a set of AmiLink components. Includes just the pictured items: VM-T board, VLAN Box, Power Supply, Serial Cable, Dongle; no software or other accessories are available.
*** We are unable to test this item. Please review the warranty and returns policy ***Warranty and Returns:=====================This product is being sold AS-IS without any warranty. Returns are not accepted. To ensure that this is the right product for your needs, we’re happy to answer any questions.
Shipping:=========- Other shipping methods are available – contact us for details.- Combined shipping is available for most items – contact us for details.- Local pickup is also available at no cost.
About Us:=========The Computer Preservation Group is dedicated to the preservation of historical computers. To help fund ongoing operations, select items are made available. To learn more, please visit our website. Thank you for your support!
Stock#:J2566c.GA#4Details from amiga hardware:
ManufacturerRGB Computer and Video, USA Date1991 / 1992 AmigaA2000, A3000, A4000InterfaceISAediting controllercontrols the Video Toaster switcher and up to three professional VCRs on a V-LAN networkcan control other switchers via RS-422 or general purpose interface (GPI) triggersthe V-LAN Universal Control Network is simply an RS-232 protocol adapter that uses device specific software drivers allowing control of VTRs or other devices via a 9 pin RS-422 serial connectioncontrols the timing of all audio and video special effects (chroma effects, character generator, keyer, etc.)automatic assembly of the edit decision list (EDL)supports EDLs from other editing systems in the standard CMX formatzero frame accuracyinterfaces through Arexx commands with the Toasterthere are many versions of the AmiLink hardware (Pro, CI, CIP), the main difference between them is the number of V-LAN transmitters/receiversVM-T (V-Lan master controller, 5 BNC) + VM-TRR (three video deck controllers, 2 BNC, 3 DB9)VM-T (V-Lan master controller, 5 BNC) + VM-TR (two video deck controllers, 2 BNC, 2 DB9)VM-TRR (V-Lan master controller + two video deck controllers, 5 BNC, 2 DB9)the master controller communicates with the Amiga through the Amiga serial portthe software is protected by a parallel port dongle
