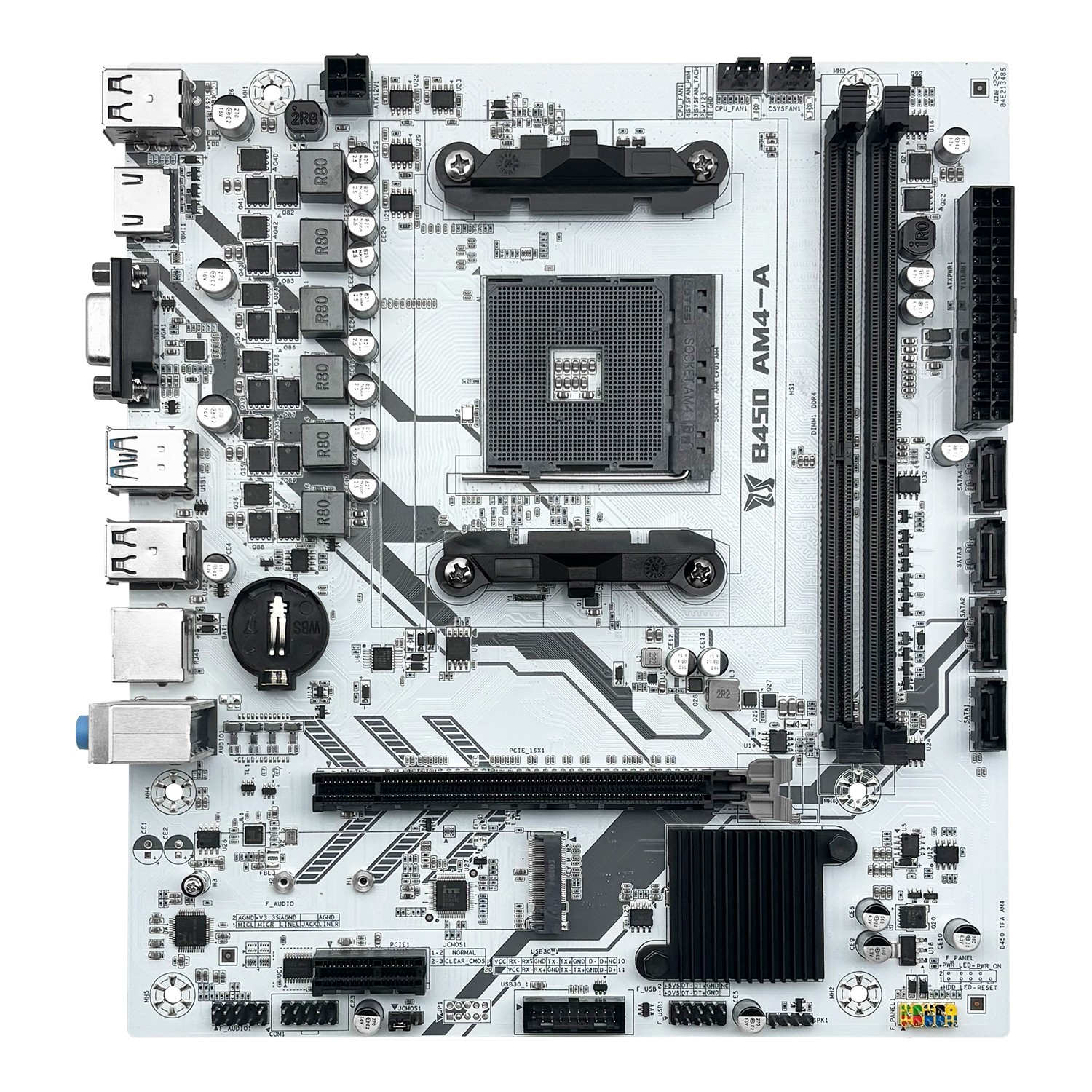

Motherboard B450 Specification: Mainboard AM4 Chipset: X470/B450 Mother Board Model: B450 CPU Socket: AM4 Socket Processor: Supports AMD CPU processors with AM4 Socket. Such as below： AMD Ryzen 3 etc; AMD Ryzen 5 etc; AMD Ryzen 7 etc; AMD Ryzen 9 3900X/3950X/5900X/5950X; AMD Athlon X4 940/940/970,Athlon 3000G/Gold 3150G, etc. Memory Slot: 2 x DDR4 DIMM memory slots, support up to 64GB Support Memory Type: DDR4 2133/2400/2666/2800/3000/3200/3600MHz desktop memory. Memory Channel: Supports Dual-Channel mode M.2 Slot: NVMe M.2 or SATA (NGFF) M.2, auto switching PCIe Slot: PCIe 3.0 X16 *1, PCIe 2.0 X1 *1 SATA Interface: SATA 3.0 *4 USB Port: 3* USB 3.0, 5* USB 2.0 FAN Interface: 2* 4-pin Power Connector: 24 + 4 Pin Display Port: 1* VGA, 1* HDMI-Compatible Sound Card: Realtek ALC897 Chip, 2.1 Channels Network Interface: Realtek 8111H 1000Mbps RJ45 Ethernet Other Interfaces: 3* Rear audio jacks, 1* Front audio port header, 1* System panel port header, 1* COM port header, 1* Speaker header, 1* 3-pin Clear CMOS jumper
Power Supply: The amd motherboard am4 adopts a 4+2 phase power supply Applicable Hard Disk: Supports 2.5-inch SATA SSD, 3.5-inch HDD, MVME M.2 SSD, SATA M.2 SSD. Enter BIOS: Turn the computer motherboard on, and press the main " DEL " key continuously. Quick Boot Button: F11 - Turn the motherboard ddr4 white on, and press the F11 key continuously. More Function: Supports Wake On Lan; Restore on AC/Power Loss; Diskless; TPM 2.0; Startup Timer; Support CPU overclocking, BIOS PBO Setting, Memory XMP, and Virtualization. Size: 220mmx200mmx40mm Form Factor: M-ATX Net weight: 0.86lbs Packing List: MACHINIST/JUXIESHI B450 Motherboard *1 SATA Cable *1 I/O Shield *1
