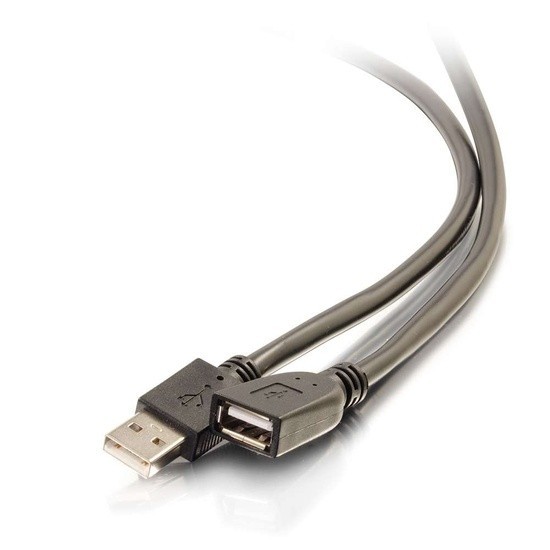

C2G 50 ft USB-A Male to Female Active Extension Cable Plenum, CMP-Rated Model 39935 - Brand C2G ,
- Model 39935
- Bend Radius 2.36 in (60 mm),
- Cable Diameter 0.24 in (6 mm),
- Cable Length 50 ft (15.2 m),
- Operating Temperature 14° - 167°F (-10° - 75°C),
- Shipping Weight 2.2 lbs (1 kg),
- Storage Temperature Max 167 Fahrenheit (75 Celsius),
- Storage Temperature Min 14 Fahrenheit (-10 Celsius),
- Wire Gauge Type
- Active Copper 1
- (1) USB-A Male,
- (1) USB-A Male,
- Connector 2
- (1) USB-A Female,
- (1) USB-A Female,
- Jacket Application Plenum Rated,
- Jacket Rating
- CMP Rated,
- FT6 Rated,
- Product Type
- Active Device,
- Cable,
- Signal Type offerirectional,
- TAA Compliant No,
- Certifications
- NDAA 889,
- Prop Transfer Rate 480 MBPS,
- Jacket Material PVC,
- Warranty 5 years,
- This USB Active Extension Cable is an ideal solution for USB applications which require more cable length than the 5 meter (16.5ft) length limitation of USB. This extension cable actively buffers the incoming and outgoing signals to ensure compliance with the USB 2.0 specification for electrical and timing minimums. The plenum rated jacket meets the requirements for an installation in a commercial space, and both low and high speed USB devices will function equally well with this extension.
- Features and Benefits:
- Plenum, CMP-rated jacket,
- Supports USB 2.0 bandwidth,
- Draws power required for operation through the USB port,
- Electrical Specifications:
- Voltage Rating: 300V,
- Signal Bandwidth: 480Mbps,
- Nominal Impedance with Tolerance: 90±13.5 OHM,
- Delay: 5.2ns/m MAX,
- DC Resistance: 24AWG 87.6OHM/KM MAT at 20°C /22AWG 55.4OHM/KM MAX at 20°C,
- Insulation Resistance: 10M OHM,
- Physical Specifications:
- ETL 24AWG/1P+22AWG/2C; 75°C, 300V; 6ETL—4004196,
- Operating Temperature: -10 ~ 75°C,
- Storage Temperature: -10 ~ 75°C,
- P1: USB-A Type Male; Material (Nickel-Plated on Shell), Terminal Gold 3#m, Insulation Color: White,
- P2: USB-A Type Female; Material (Nickel-Plated on Shell), Terminal Gold 3#m, Insulation Color: White,
- Shield Type/Braid Coverage: 80% MIN,
- Shield Type/Braid Construction: 16/7/0.12TC,
- Jacket Material & Thickness: PVC Alloy 0.58mm AVG,
- Drain Wire AWG & Construction: 7/0.203TC,
- Minimum Bend Radius: 60mm,
- Cable Marking: Plenum Cable 4004196 ETL TYPE CMP 75°C,
 |
|
