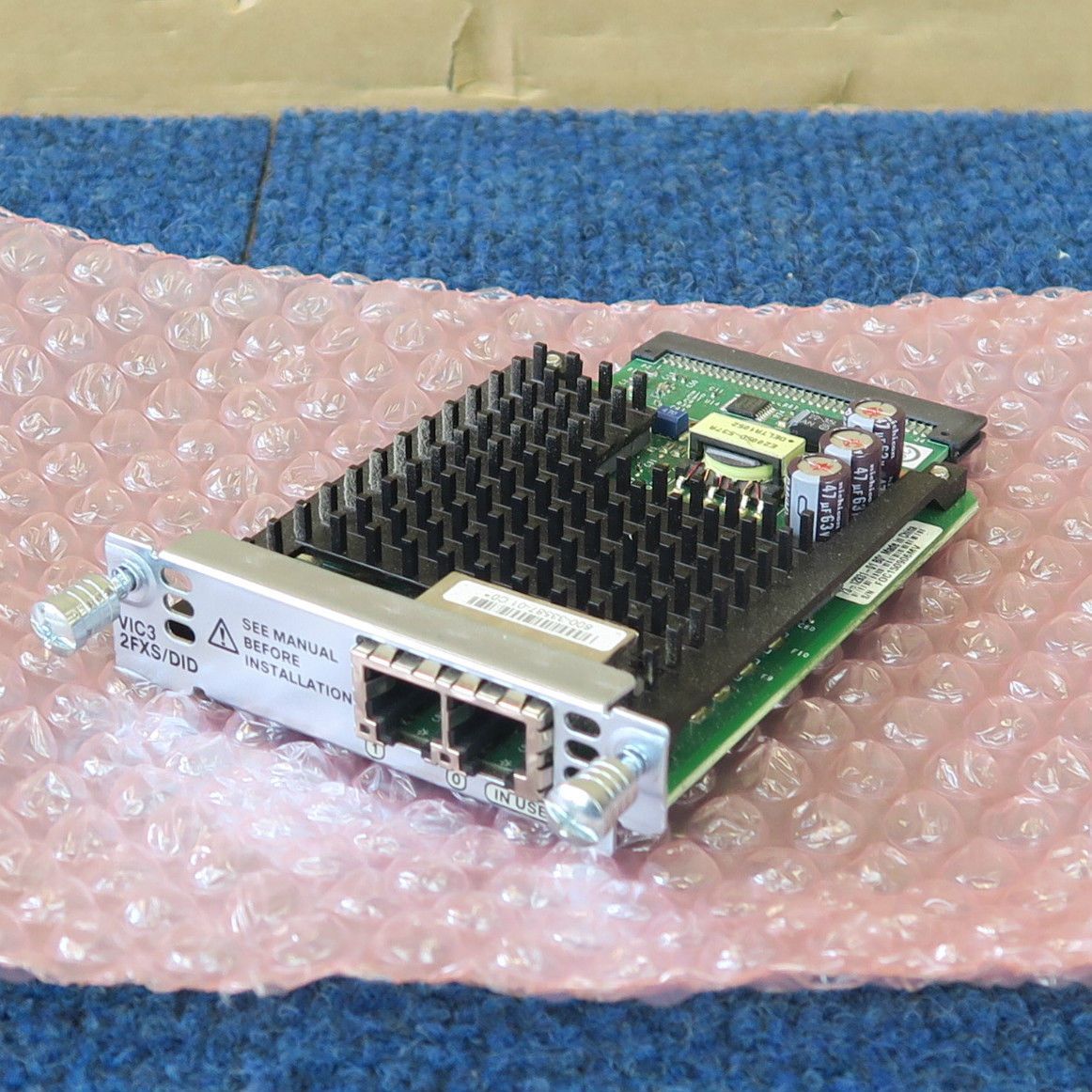

CISCO VIC3-2FXS/DID 2-Port High-Density FXS/DID Voice Fax Interface CardGenuine CISCO. SERIAL and HOLOGRAM Intact.
Compatible with 2800, 3800, 2900 and 3900 series Routers."
VIC3-2FXS/DID
2-port FXS/DID voice/fax interface card.
FXS port is used to connect directly to phones, fax machines, and key systems. Generates battery polarity reversal and caller ID.
DID port is used to provide off-premises DID connection from central office. Serves only incoming calls from the PSTN. Does not support caller ID in DID mode.
Table 6.VIC3-2FXS/DID Specifications: 2-Port FXS/DID Voice/Fax Interface Card (for On-Premise Use Only)
Feature
Description
Interface Type
FXS (on-premise connection only) and DID trunk
Cisco IOS Software Release
12.4(20)T
Cisco Part Number
800-30501-01
Compliance
FCC Class B device, CE
Safety Conformance
UL1950
Spare
VIC3-2FXS/DID=
Address Signaling Formats
• In-band DTMF• Out-of-band pulse ( 8-12 pps)
Signaling Modes
FXS: Loop-start, ground-start
DID: Immediate, Delay-dial, WinkStart
DID Loop Resistance
Up to 1800 ohms (including terminal equipment)
FXS Loop Resistance
Up to 600 ohms (including phone or terminal equipment)
On-Hook Voltage
-44V
Off-Hook Loop Current
25 mA (max)
Ringing Tone
Configurable for different country requirements
Ringing Voltage
45 Vrms into 5REN at zero loop length (balanced)
Ringing Frequencies
20 Hz, 25 Hz, 30 Hz, 50 Hz
REN Loading
5 REN/port, 8 REN/VIC (max)
Disconnect Supervision
Power denial (Calling Party Control, far-end disconnect)
Caller ID
On-hook transmission of frequency-shift-keying (FSK) data
Loop Length
<1500 ft (450 m) 24 AWG Category 5 twisted pair cable
Physical Connector
RJ-11
Number of Connectors/Ports
Two
MTBF
2,534,574 Please read our policy throughly to have a confident purchase! ------------------------------
