COMBO ASUS Prime H370M-PLUS MOTHERBOARD LGA 1151 + i5-9400 CPU /w Heatsink + 16GB DDR4

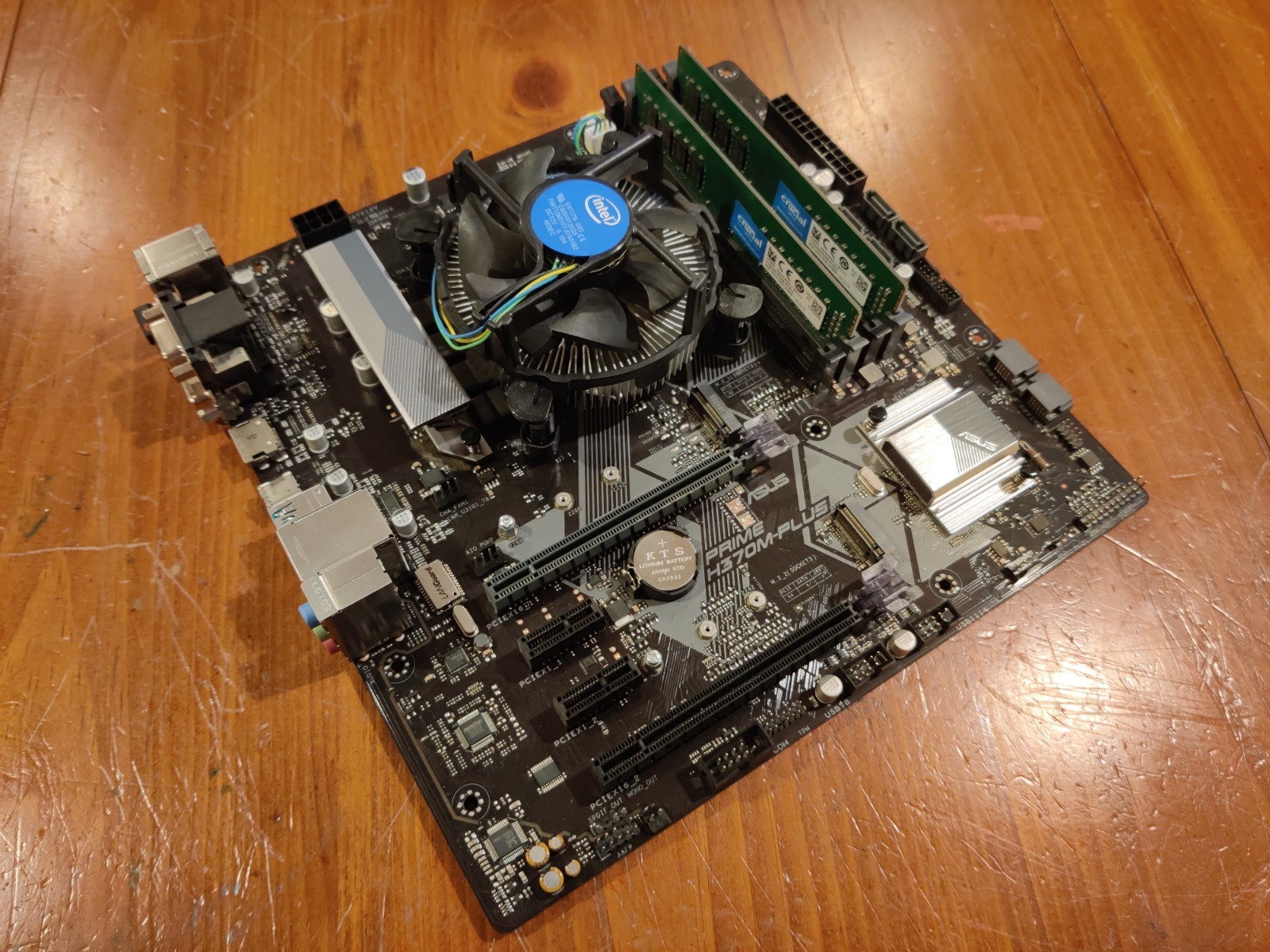

This motherboard, CPU, and ram combo are in perfect working order and guaranteed Non-DOA. If you have any questions, let us know. What is pictured is what is included:
*ASUS Prime H370M-PLUS Motherboard*Intel® Core i5-9400F Processor 9M Cache, up to 4.10 GHz(Please note, this processor does not have integrated graphics. This system requires a dedicated graphics card to operate).*16GB DDR4 Ram (2x8GB)
More part specifications below:
General InformationCategorymotherboards or daughterboardsDescriptionASUS PRIME H370M-PLUS/CSM - Motherboard - micro ATX - LGA1151 Socket - H370 Chipset - USB 3.1 Gen 1, USB 3.1 Gen 2, USB-C Gen1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio SpecificationsDimensions & Weight / Depth24.4 cmDimensions & Weight / Width24.4 cmHeader / BrandASUSMainboard / Chipset TypeIntel H370Mainboard / Compatible Processors

• Celeron
• Core i3
• Core i5
• Core i7
• Pentium

Mainboard / Processor SocketLGA1151 SocketNetworking / Data Link Protocol

• Ethernet
• Fast Ethernet
• Gigabit Ethernet

Packaged Quantity1Video Output / TypeGraphics adapter (CPU required)AudioAudio CodecRealtek ALC887Compliant StandardsHigh Definition AudioTypeHD Audio (8-channel)Expansion / ConnectivityExpansion Slots

• 1 x CPU
• 4 x DIMM 288-pin
• 1 x PCIe 3.0 x16
• 1 x PCIe 3.0 x16 (x4 mode)
• 2 x PCIe 3.0 x1

Interfaces

• 1 x HDMI
• 1 x LAN (Gigabit Ethernet)
• 2 x USB 2.0
• 1 x VGA
• 1 x DVI-D
• 1 x audio line-out - mini-jack
• 1 x microphone - mini-jack
• 1 x PS/2 keyboard / mouse
• 1 x audio line-in - mini-jack
• 2 x USB 3.1 Gen 1
• 1 x USB-C Gen1
• 2 x USB 3.1 Gen 2

Internal Interfaces

• 4 x USB 2.0 - header
• 2 x USB 3.1 Gen 1 - header
• 1 x serial - header
• 1 x SPDIF out - header
• 1 x audio - header

Power Connectors24-pin main power connector, 8-pin ATX12V connectorStorage Interfaces

• SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
• SATA-600 / PCIe 3.0 -connectors: 1 x M.2
• PCIe 3.0 -connectors: 1 x M.2

FeaturesBIOS FeaturesMultilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 supportBIOS TypeAMIHardware FeaturesJack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, AMD CrossFireX technology support, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS Fan Xpert 4 Core, ASUS OptiMemSleep / Wake UpWake on LAN (WOL), wake on PMEGeneralChipset TypeIntel H370Compatible ProcessorsPentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)Max Processors Qty1Processor SocketLGA1151 SocketProduct TypeMotherboard - micro ATXGraphicsMax Allocated RAM Size1 GBLANNetwork ControllerIntel I219VNetwork InterfacesGigabit EthernetMiscellaneousCables Included2 x Serial ATA cableDepth24.4 cmIncluded AccessoriesI/O back coverWidth24.4 cmSupported RAMBus Clock2400 MHz, 2133 MHz, 2666 MHzFeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)Max Size64 GBRegistered or BufferedUnbufferedSupported RAM Integrity CheckNon-ECCTechnologyDDR4This motherboard, CPU, and ram combo are in perfect working order and guaranteed Non-DOA. If you have any questions, let us know. What is pictured is what is included:
*ASUS Prime H370M-PLUS Motherboard*Intel® Core i5-9400F Processor 9M Cache, up to 4.10 GHz(Please note, this processor does not have integrated graphics. This system requires a dedicated graphics card to operate).*16GB DDR4 Ram (1x16GB)
More part specifications below:
General InformationCategorymotherboards or daughterboardsDescriptionASUS PRIME H370M-PLUS/CSM - Motherboard - micro ATX - LGA1151 Socket - H370 Chipset - USB 3.1 Gen 1, USB 3.1 Gen 2, USB-C Gen1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio SpecificationsDimensions & Weight / Depth24.4 cmDimensions & Weight / Width24.4 cmHeader / BrandASUSMainboard / Chipset TypeIntel H370Mainboard / Compatible Processors

• Celeron
• Core i3
• Core i5
• Core i7
• Pentium

Mainboard / Processor SocketLGA1151 SocketNetworking / Data Link Protocol

• Ethernet
• Fast Ethernet
• Gigabit Ethernet

Packaged Quantity1Video Output / TypeGraphics adapter (CPU required)AudioAudio CodecRealtek ALC887Compliant StandardsHigh Definition AudioTypeHD Audio (8-channel)Expansion / ConnectivityExpansion Slots

• 1 x CPU
• 4 x DIMM 288-pin
• 1 x PCIe 3.0 x16
• 1 x PCIe 3.0 x16 (x4 mode)
• 2 x PCIe 3.0 x1

Interfaces

• 1 x HDMI
• 1 x LAN (Gigabit Ethernet)
• 2 x USB 2.0
• 1 x VGA
• 1 x DVI-D
• 1 x audio line-out - mini-jack
• 1 x microphone - mini-jack
• 1 x PS/2 keyboard / mouse
• 1 x audio line-in - mini-jack
• 2 x USB 3.1 Gen 1
• 1 x USB-C Gen1
• 2 x USB 3.1 Gen 2

Internal Interfaces

• 4 x USB 2.0 - header
• 2 x USB 3.1 Gen 1 - header
• 1 x serial - header
• 1 x SPDIF out - header
• 1 x audio - header

Power Connectors24-pin main power connector, 8-pin ATX12V connectorStorage Interfaces

• SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
• SATA-600 / PCIe 3.0 -connectors: 1 x M.2
• PCIe 3.0 -connectors: 1 x M.2

FeaturesBIOS FeaturesMultilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 supportBIOS TypeAMIHardware FeaturesJack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, AMD CrossFireX technology support, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS Fan Xpert 4 Core, ASUS OptiMemSleep / Wake UpWake on LAN (WOL), wake on PMEGeneralChipset TypeIntel H370Compatible ProcessorsPentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)Max Processors Qty1Processor SocketLGA1151 SocketProduct TypeMotherboard - micro ATXGraphicsMax Allocated RAM Size1 GBLANNetwork ControllerIntel I219VNetwork InterfacesGigabit EthernetMiscellaneousCables Included2 x Serial ATA cableDepth24.4 cmIncluded AccessoriesI/O back coverWidth24.4 cmSupported RAMBus Clock2400 MHz, 2133 MHz, 2666 MHzFeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)Max Size64 GBRegistered or BufferedUnbufferedSupported RAM Integrity CheckNon-ECCTechnologyDDR4
Processor ModelModelBrandIntelProcessors TypeDesktopSeriesCore i5 9th GenNameCore i5-9400FModelBX80684I59400FDetailsCPU Socket TypeLGA 1151 (300 Series)Core NameCoffee Lake# of Cores6-Core# of Threads6-ThreadsOperating Frequency2.9 GHzMax Turbo Frequency4.1 GHzBus Speed8 GT/sL3 Cache9MBManufacturing Tech14nmInstruction Set64-BitHyper-Threading SupportNoMemory TypesDDR4 2666Memory Channel2Virtualization Technology SupportYesIntegrated GraphicsNone Integrated GraphicsPCI Express Revision3.0Max Number of PCI Express Lanes16Thermal Design Power65W
