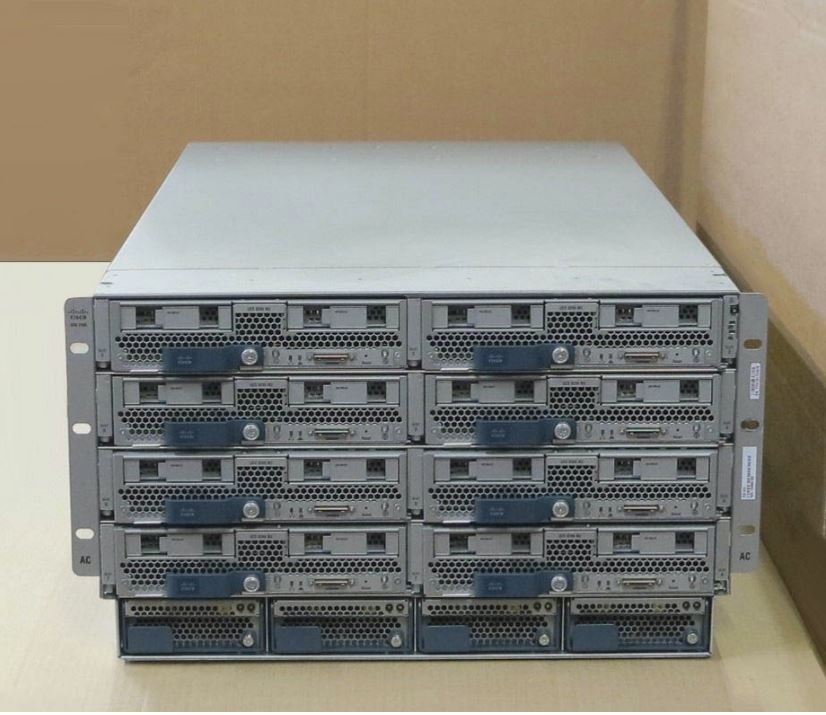

Cisco UCS-5108 2x UCS-IOM-2208XP Modules 4x PSU 8x UCS-B200-M3 CTO Blade Servers

Chassis P/N: UCSB-5108-AC2

Blade P/N: UCS-B200-M3

Fabric Extender P/N: UCS-IOM-2208XP

In Good Condition, Full Working OrderTested

CTO Server, NO CPU / NO MEMORY / NO HDD included - these are required in order to operate

If required we can supply CPU, Memory and HDD of your choice - please send an message for a quote

Included:

Chassis

• 1 xCisco UCS 5108 Blade ChassisUCSB-5108-AC2
• 2 x 2208XP 8-Port 10GbE Fabric Extenders UCS-IOM-2208XP
• 4 x 2500w UCSB-PSU-2500ACPL Power Supplies
• 8 x Fans N20-FAN5

Servers

• 4 x Cisco B200 M3 CTO Blade ServersUCSB-B200-M3

Each Can Be Configured With:

• 2 xIntel Xeon E5-2600 and E5-2600v2 Series Processors
• Up to 768GB DDR3 Memory (24 DIMM Slots)
• Up to two SAS or SATA or SSD Drives

The UCS 5108 chassis is a 6RU chassis the that can accommodate up to 8 half-width blades or 4 full-width blades, or any combination that will fit in the chassis. The chassis has two I/O bays for Fabric Extenders such as the UCS 2208XP.

Specifications

• Height:10.5 in. (26.7 cm); 6 rack unit (6RU)
• Width:17.5 in. (44.5 cm); fits standard 19-inch square-hole rack (or round hole threaded or non-threaded, with optional adapter kit)
• Depth:32 in. (81.2 cm)
• Weight:90 lbs (40.83 kg) empty, 255 lbs (115.66 kg) fully configured
• Blade server slots:8 half-width slots, 4 full-width slots, or combination of half- and full-width slots.
• IO slots (for FIs or FEXs):2
• Fabric Extenders:Compatible with 2208XP, 2204XP, and 2104XP Fabric Extenders
• Fabric Interconnects:Compatible with 6324 Fabric Interconnects
• Power:Four Power Supplies supporting N, N+1 and N+N Grid redundancy.
• Fans:8 hot-swappable fans,Each fan module contains 2 redundant fans; up to two fans can fail in the system.
• Management:Managed from the Cisco UCS 6100/6200 Series or 6324 fabric interconnects by Cisco UCS Manager (redundant management operations when the chassis is configured with two fabric extenders or two 6324 fabric interconnects)
• Backplane:1.2 TB of aggregate throughput; supports 10BASE-KR connections for 8 blades
• Regulatory compliance:Products comply with CE Markings per directives 2004/108/EC and 2006/108/EC
• AC input voltage:Voltage Range 100-120 VAC, 200-240 VAC nominal (range: 90-132 VAC, 180-264 VAC)
• AC input frequency:50 to 60 Hz nominal (range: 47 to 63 Hz)
• AC Input current:< 15 Amps @ 100 VAC
• Maximum Input VA:2790 VA @ 200 VAC
• Maximum output power per power supply:2500 W at 200 to 240 VAC (up to four power performance, versatility and density without compromise, the Cisco UCS B200 M3 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.The enterprise-class Cisco UCS B200 M3 blade server extends the capabilities of Cisco’s Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M3 harnesses the power of the latest Intel® Xeon® E5-2600 v2 and E5-2600 series processor family CPUs with up to 768 GB of RAM (using 32 GB DIMMs), 2 drives, and up to 80 Gbs throughput 1.95 in. (50 mm)
• Width: 8.00 in.(203 mm)
• Depth: 24.4 in. (620 mm)
• Weight: Base server weight (no CPUs, no HDDs, no mezzanine adapters or memory) = 9.62 lbs (4.36 kg), Minimally configured server (1 HDD, 2 CPUs, a VIC 1340/1240 but no mezzanine adapter) = 12.50 lbs (5.67 kg), Fully configured server (2 HDDs, 2 CPUs, all memory, VIC 1340/1240 and mezzanine adapter both populated) = 14.98 lbs (6.79 kg)

The Cisco UCS 2208XP Fabric Extender has eight 10 Gigabit Ethernet, FCoE-capable, Enhanced Small Form-Factor Pluggable (SFP+) ports that connect the blade chassis to the fabric interconnect. Each Cisco UCS 2208XP has thirty-two 10 Gigabit Ethernet ports connected through the midplane to each half-width slot in the chassis. Typically configured in pairs for redundancy, two fabric extenders provide up to 160 Gbps of I/O to the chassis.

Specifications

• Hardware forwarding at 640 Gbps
• Low-latency cut-through design, providing predictable, consistent traffic latency regardless of packet size, traffic pattern, or enabled features
• Layer 2 VLAN trunks
• IEEE 802.1Q VLAN encapsulation
• Support for up to 1024 VLANs and virtual SANs (VSANs)
• Support for Cisco Data Center VM-FEX architecture
• Jumbo frames on all ports (up to 9216 bytes)
• Pause frames (IEEE 802.3x)
• Layer 2 IEEE 802.1p (class of service [CoS])
• CoS-based egress queuing
• Egress strict-priority queuing
• Egress port-based scheduling: Weighted Round-Robin (WRR)
• Eight hardware queues per port
