Cisco UCS5108 + 8x B200 M2 Blade Servers 16x SIX-CORE 2.40GHz 384Gb RAM,10Gb VIC
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

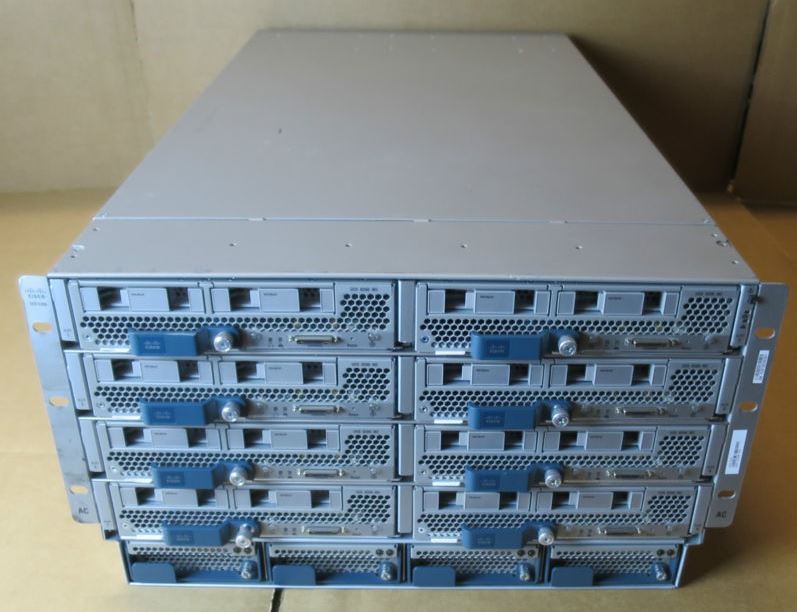

Cisco UCS5108 + 8x B200 M2 Blade Servers 16x SIX-CORE 2.40GHz 384Gb RAM,10Gb VIC
Price: GB $7800.00
Cisco UCS5108 + 8 x B200 M2 Blade Servers 16 x SIX-CORE 2.40GHz, 384Gb RAM, 10Gb VIC

In good condition, tested and full working order

Included

Chassis

  • 1 xCisco UCS5108 Blade Chassis N20-C6508 V02
  • 2 xUCS 2104XP Fabric Extender PID VID: N20-16584
  • 4 x 2500W Power Supplies
  • 8 x Fans
Servers
  • 8 x B200 M2 Servers UCS-B200-M2
Each With:
  • 2 x Intel Xeon SIX-CORE E5645 2.4GHz Processors
  • 48Gb DDR3 Memory
  • 1 x UCS M81KR PCIe 2 port 10Gb Virtual Interface Card
  • 2 x Seagate 146GB SAS 10k 2.5" hot plug hard drives

We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote.


Simplicity, Efficiency, Performance, and Density

The Cisco UCS B200 M2 Blade Server balances simplicity, performance, and density for production-level virtualization and other mainstream data -center workloads. The server is a half-width, 2-socket blade server with substantial throughput and scalability.

The UCS B200 M2 server extends the capabilities of the Cisco Unified Computing System. It uses Intel®Xeon®5600 series multicore processors to deliver even better performance and efficiency.

The chassiscan house up to eight UCS B200 M2 Blade Servers, with a maximum of 160 per Cisco Unified Computing System.

Features
  • Up to two Intel Xeon 5600 Series processors, which adjust server performance according to application needs
  • Up to 192 GB of DDR3 memory, which balances memory capacity and overall density
  • Two optional Small Form-Factor (SFF) Serial Attached SCSI (SAS) hard drives or 15mm SATA Solid State Disk (SSD) drives, with an LSI Logic 1064e controller and integrated RAID

The UCS 5108 chassis is a 6RU chassis the that can accommodate up to 8 half-width blades or 4 full-width blades, or any combination that will fit in the chassis. The chassis has two I/O bays for Fabric Extenders such as the UCS 2208XP or Fabric Interconnects such as the UCS 6324.

Specifications

  • Height:10.5 in. (26.7 cm); 6 rack unit (6RU)
  • Width:17.5 in. (44.5 cm); fits standard 19-inch square-hole rack (or round hole threaded or non-threaded, with optional adapter kit)
  • Depth:32 in. (81.2 cm)
  • Weight:90 lbs (40.83 kg) empty, 255 lbs (115.66 kg) fully configured
  • Blade server slots:8 half-width slots, 4 full-width slots, or combination of half- and full-width slots.
  • IO slots (for FIs or FEXs):2
  • Fabric Extenders:Compatible with 2208XP, 2204XP, and 2104XP Fabric Extenders
  • Fabric Interconnects:Compatible with 6324 Fabric Interconnects
  • Power:Four Power Supplies supporting N, N+1 and N+N Grid redundancy.
  • Fans:8 hot-swappable fans,Each fan module contains 2 redundant fans; up to two fans can fail in the system.
  • Management:Managed from the Cisco UCS 6100/6200 Series or 6324 fabric interconnects by Cisco UCS Manager (redundant management operations when the chassis is configured with two fabric extenders or two 6324 fabric interconnects)
  • Backplane:1.2 TB of aggregate throughput; supports 10BASE-KR connections for 8 blades
  • Regulatory compliance:Products comply with CE Markings per directives 2004/108/EC and 2006/108/EC
  • AC input voltage:Voltage Range 100-120 VAC, 200-240 VAC nominal (range: 90-132 VAC, 180-264 VAC)
  • AC input frequency:50 to 60 Hz nominal (range: 47 to 63 Hz)
  • AC Input current:< 15 Amps @ 100 VAC
  • Maximum Input VA:2790 VA @ 200 VAC
  • Maximum output power per power supply:2500 W at 200 to 240 VAC (up to four power supplies)
