SpecificationsProduct Name:USB 3.2 Gen1 Type-C 8-in-1 hub with 2x HDMI™, 2x USB-A, RJ45, SD/Micro SD card slots and USB Type-C female portProduct Series:DockingProduct Code:CSV-1593EAN code:8719214471828UPC code:841615102051Features:Upstream:• USB 3.2 Gen1 Type-C Male(Connect to host)• Support DP1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps(8.1Gbps per lane), downward compatible with DP1.2 Alt mode• Support DSCNote:To get max bandwidth, the host should support DP1.4 Alt mode with DSC format.Downstream:• HDMI™x2• Support HDMI™ max 4K/60Hz, 4:4:4, 8bit with 18Gbps Bandwidth• Support Dual max 4K/30Hz under MST mode (Windows™ System)• Support Dual max 4K/60Hz under SST mode (Mac™ System ONLY)• Support 8/10/12 bit color depth output• Support output pixel format Support HDCP 2.2&HDCP1.4Note:When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI™ is 4k/60Hz (dual 4K/30Hz); When connecting a DP1.2 Alt mode supported host, the max resolution of HDMI™ is 4k/30Hz (dual 1080P/60Hz) due to bandwidth limitation.• USB3.2 Gen1 Type-A- 1x USB3.2 Type-A port supports BC 1.2 with max 7.5W(5V/1.5A) downstream charging, 1x USB Type-A share max 8W (5V/1.6A) downstream charging.- Max 5Gbps bandwidth per USB-A port• SD/Micro SD- Support Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 Allow 2 card slots to work simultaneously• RJ45 (Gigabit Ethernet)- Support 10M/100M/1000M• USB 3.2 Gen1 Type-C Female (for PD Charging)- Supports PD Charging 100W (20V/5A)• Support for Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter- 15W is dedicated to the functioning of this product, the rest power (max 85W) will be passed to charge for the hostOS Support:AllIn the box:• 1x

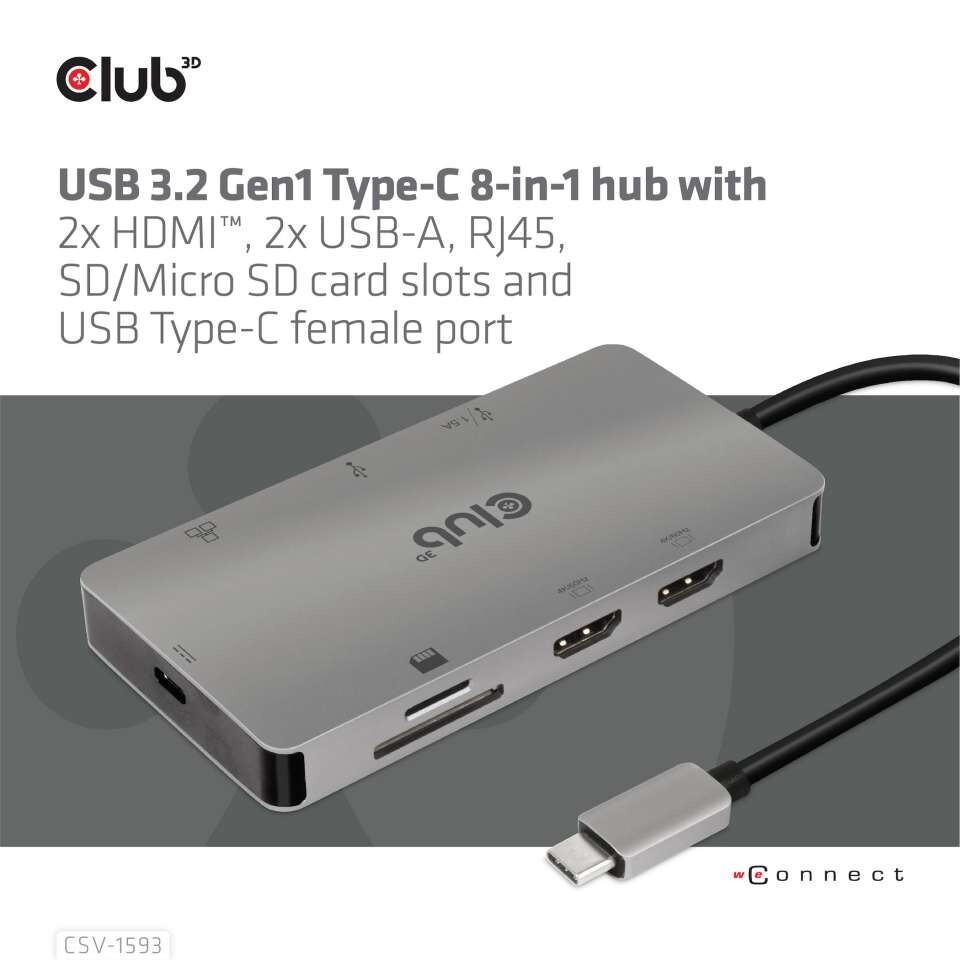

USB 3.2 Gen1 Type-C 8-in-1 hub with 2x HDMI™, 2x USB-A, RJ45, SD/Micro SD card slots and USB3.2 Gen1 Type-C female portAvailable InterfacesInput:•
USB 3.2 Gen1 Type-C Male(Connect to host)Output:• 2x HDMI™ female• 2x USB3.2 Gen1 Type-A Female• 1x SD Card Slot• 1x Micro SD Card Slot• 1x RJ45 jack• 1x USB 3.2 Gen1 Type-C FemaleOther info:• Box size: 7 x 32 x 3.5cm / 2.76 x 12.6 x 1.38 "• Cable length approx.: 14cm / 5.5 "• Hub dimensions: 11.5 x 5.9 x 1.42 cm / 4.53 x 2.32 x 0.55 "• Connector dimensions: 3.4 x 1.2 x x 0.65 cm / 0.86 x 0.47 x 0.26 "• Product Weight: 116 gr / 4.09 oz• Box Weight: 42 gr / 1.48 oz• LDPE Bag Weight: 6 gr / 0.21 oz• Total Weight: 122 gr / 4.30 oz• Meets ROHS, FCC, and CE EMI requirements
