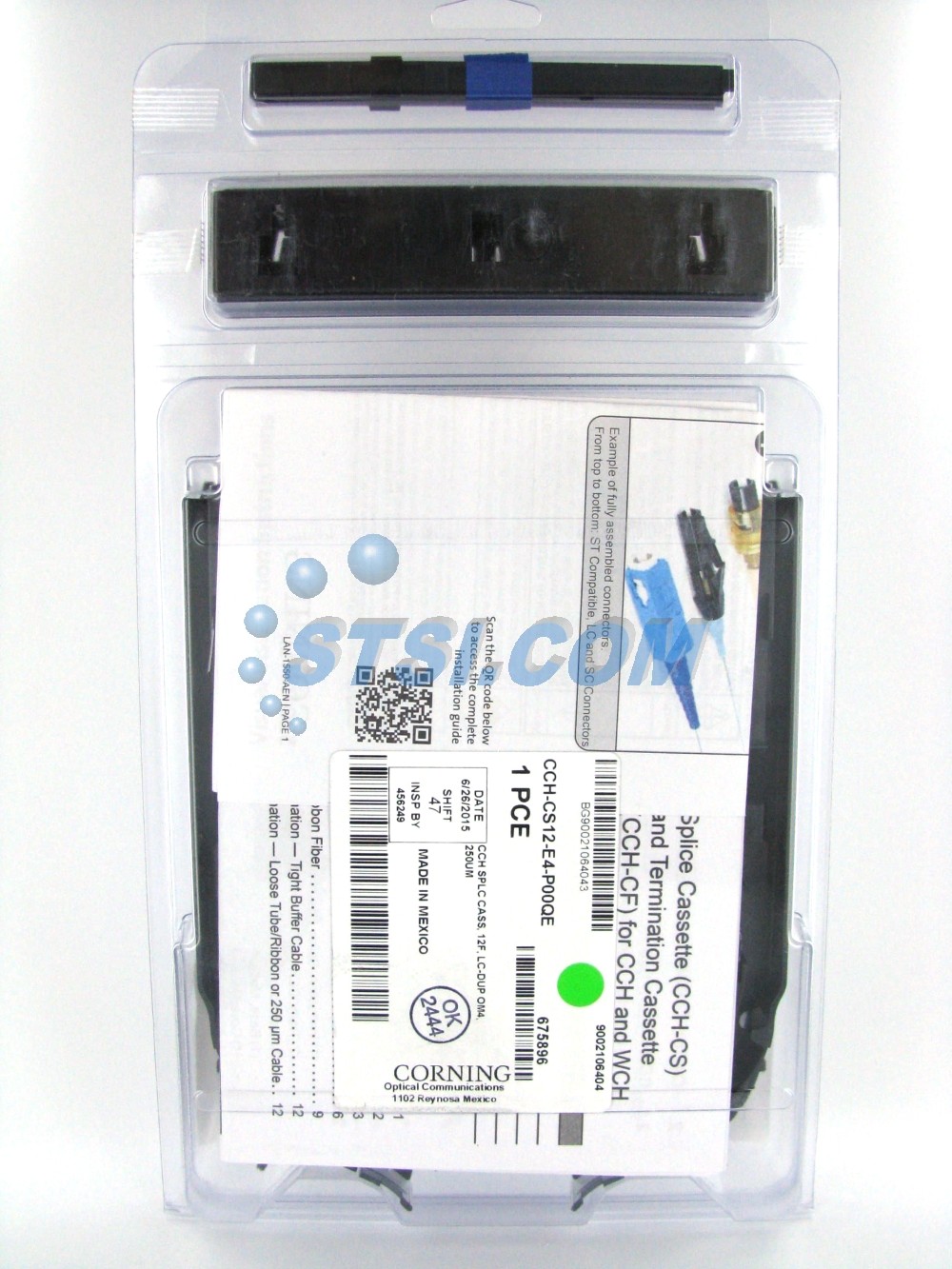

Corning CCH-CS12-E4-P00QE Splice Cassette, 12 Fiber, LC Duplex Multimode 50 OM4 Description:
CCH Pigtailed Splice Cassette, 12 F, LC duplex, aqua, 50 µm multimode (OM4) Part Number: CCH-CS12-E4-P00QECCH pigtailed splice cassettes enable faster field splicing and easy modular management of connectorization within the housing.The CCH pigtailed splice cassettes are preloaded and pre-routed for quick fusion splicing of either individual or ribbon fiber pigtails, using the same space-saving platform as the standard CCH splice cassette.The pre-routed pigtailed cassettes reduce field labor by streamlining the features and components of the pigtail cassette to allow for efficiencies in the field. They are prepped with a 2 meter pigtail assembly with all pre-existing CCH panel connector options. The pigtailed cassettes have 900 µm at the connector panel for added durability and colored 250 µm for ease of splicing as well as having strain relief pre-applied to the assemblies from the manufacturing facility.With the pigtailed cassette, the field will also enjoy the elimination of individual splice trays or separate splice housings, as well as allowing splicing to be done away from the rack housing in a suitable workspace as needed. The modular design makes it easy to access the fiber in an individual cassette without disturbing the other fibers in the housing.Each cassette is shipped with the pigtailed CCH adapter panel of choice, one rail for use with CCH-01U/2U/3U housings, and two rails used with CCH-04U housings. Grommets and cable ties for additional strain relief and protective braided tubing for incoming cable are also included. Splicing cassettes ship with the appropriate quantity and type of heat-shrink splice cable slack for a CCH panel in a modular footprint Fast, easy and reliable initial routing, and quick, simple reaccess for moves, adds and changes (MACs)Includes everything needed to convert a CCH housing for modular routing and/or splicingEasy ordering and field installationModular splice capabilityManage all splices inside the housing900 µm jacket at the connector panelAdded fiber protection at the connectorColored 250 µm at splice pointEasy to identify and prep colored 250 µm for fast and easy splicingPre-prepped splice cassetteSaves time in the field with a ready to splice Enterprise Networks, Data CenterProduct Type Rack-Mountable HardwareMounting Type CCH Housings, Wall-MountableCable Type 250 µmFiber Category 50 µm MM (OM4)Technology Fusion SpliceApprovals and Listings Meets ANSI/TIA/EIA-568A and 606Fiber Count 12Panel or Module Type CCHSplice Protectors Type Heat-shrink splice protectionNumber of Splice Protectors 12Connector Configuration LC duplexDimensions (L x W x D) 162 mm x 35 mm x 200 mm (6.4 in x 1.4 in x 7.9 in)Adapter Type LC duplexRoHS Free of hazardous substances according to RoHS 2011/65/EUUnits per Delivery 1/1Dimensions (HxWxD) 5 cm x 20.3 cm x 36.8 cm (2 in x 8 in x 14.5 in ) Shipping Info:
