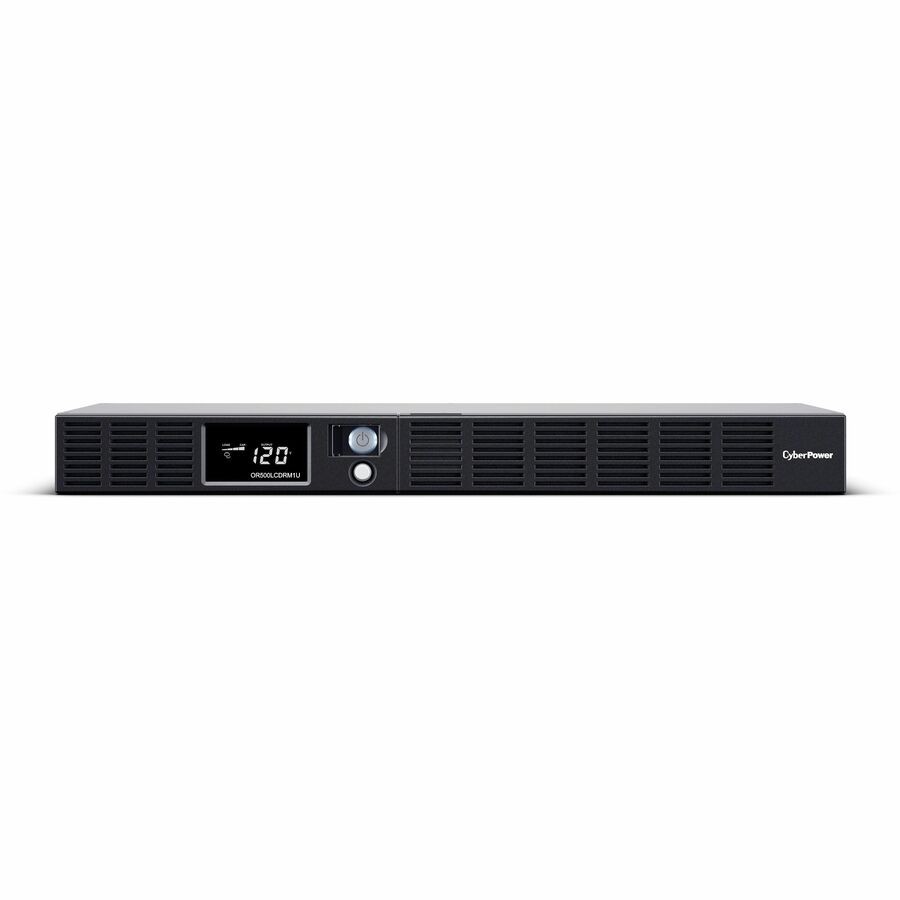

CyberPower OR500LCDRM1U Smart App LCD UPS Systems Brand: Cyberpower UPC: 0649532715015 Mfr Part #: OR500LCDRM1U

General Information

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR500LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

More from the Manufacturer

Technical InformationAVR:YesPlug/Connector Type:NEMA 5-15PReceptacle Type:NEMA 5-15RReceptacle Detail:6 x NEMA 5-15RNumber of Battery & Surge Outlets:4Number of Surge-only Outlets:2Transfer Time:8 msDataline Protection:RJ-45Dataline Protection:RJ-11Protection Type:Dataline SurgeProtection Type:Black OutProtection Type:AC SurgeProtection Type:SagOverload Protection:YesEMI/RFI Noise Filter:YesEnergy Saving:GreenPower UPS™ Bypass class="product_spacer">

Power DescriptionLoad Capacity (VA):500 VAInput Voltage:120 V ACInput Voltage Range:90 V AC - 140 V ACOutput Voltage:120 V ACInput Frequency:63 HzWaveform Type:Simulated Sine WaveSurge Energy Rating:1150 J

On Unit:

• Power On
• Wiring Fault

LCD Panel:

• Input Voltage
• Output Voltage
• Battery Capacity
• Load Level
• Runtime
• On Battery
• Overload
• Silent Mode

Battery InformationNumber of Batteries:2Battery Characteristics:Maintenance-freeBattery Chemistry:Lead AcidBattery Size:6VBattery Capacity:7000 mAhBackup/Run Time (Full Load):3 MinuteBackup/Run Time (Half Load):12 MinuteTypical Battery Recharge Time:8 HourReplaceable Battery:Yes

Physical CharacteristicsColor Family:BlackProduct Color:BlackForm Factor:Rack-mountableRack (Approximate):18 lb

Smart App Intelligent LCD OR500LCDRM1U 500VA UPS

Rack Ears (2)

User Manual

Power Management Software

Warranty Card

Serial Cable

Phone Cable

USB Cable

Additional Information:

Energy Saving : GreenPower UPS™ Bypass Technology

Energy Star Certified : Yes

UPS Topology : Line Interactive

Battery Quantity : 2

Battery Size : 6 V / 7 Ah

Battery Type : Sealed Lead-Acid Battery

Hot Swappable : Yes

Replacement Battery Cartridge : RB0670X2

Replacement Battery Cartridge Quantity : 1

Runtime at Full Load : 3 min

Runtime at Half Load : 12 min

Typical Recharge Time : 8 Hours

User Replaceable Battery : Yes

Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 23.5 (cm)

Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 9.25 (in)

Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 235 (mm)

Weight (kg) : 8.16

Weight (lb) : 18

Shipping Dimensions - (WxHxD) (cm) : 31.75 x 14.61 x 52.07 (cm)

Shipping - Dimensions (WxHxD, in) : 12.5 x 5.75 x 20.5 (in)

Shipping - Dimensions (WxHxD, mm) : 317.5 x 146.05 x 520.7 (mm)

Shipping - Weight (kg) : 9.34

Shipping - Weight (lb) : 20.6

Adjustable Voltage Range : 88 - 144 VAC

Circuit Breaker : 15 A

Cord Length : 10 ft (3.0 m)

Input Frequency Range : 57 Hz - 63 Hz

Input Plug Type : NEMA 5-15P

Input Voltage Range : 90 VAC - 140 VAC

Nominal Input Voltage : 120 VAC

Plug Style : Right Angle - 45° Offset

Automatic Voltage Regulation : Single Boost

On AC WaveForm : Sine Wave

On Battery Frequency : 60 Hz ± 1%

On Battery Voltage : 120 VAC ± 10%

On Battery Waveform : Simulated Sine Wave

Outlets - Battery & Surge Protected : 4

Outlets - Surge-Only Protected : 2

Outlets - Total : 6

Outlet Type COMPUTED : 6 - NEMA 5-15R

Output Power Factor : 0.6

Overload Protection : Internal Circuitry Limiting

Typical Transfer Time : 8 ms

USB Charge Port : No

VA : 500 VA

Watts : 300 W

EMI/RFI Filtration COMPUTED : Yes

Network Protection RJ45 : 1-in / 1-Out (10/100/1000)

Surge Suppression (Joules) : 1150 J

EMI/RFI Filtration COMPUTED : Yes

Network Protection RJ45 : 1-in / 1-Out (10/100/1000)

Surge Suppression (Joules) : 1150 J

Audible Alarms : Battery Mode

HID Compliant USB Port : Yes

LCD : Multifunction LCD

LED Indicators : Power On

Management Cable : USB Cable

Serial Port : 1 Dry Contact

SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205

Software (Free Download) : PowerPanel® Business

Color : Black

Form Factor : Rackmount

Material of Construction : Metal

Rack Height : 1U

Operating Elevation : 0 - 10000 ft (0 - 3048 m)

Operating Relative Humidity : 0 - 95 % (non-condensing)

Operating Temperature : 32 - 104 °F (0 - 40 °C)

Storage Elevation : 0 - 50000 ft (0 - 15239 m)

Storage Relative Humidity : 0 - 95% (non-condensing)

Storage Temperature : 5 - 113 °F (-15 - 45 °C)

Environmental : RoHS Compliant

Safety : UL1778

CEG Amount : $300000

Connected Equipment Guarantee : Lifetime

Extended Warranty Option : WEXT5YR-U1B

Product Warranty : 3 Year Limited Warranty

Certifications & Standards:

• FCC Class B
• cUL 107.1
• UL 1778

Software Included:PowerPanel® BusinessEnergy Star:YesCountry of Origin:PhilippinesEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)

CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.

Directly Connected Equipment Guarantee:$300000 Lifetime
