The Cyberpower RMCARD205 is a full-featured network management card that remotely manages, monitors, and controls Cyberpower UPS systems and ATS PDU products. The internal card allows remote monitoring and control via Web Browser or NMS connection. By utilizing the Power Panel Business Edition Client auto-shutdown software, servers and workstations stay protected from data loss due to power failure. An optional environmental sensor (ENVIROSENSOR) can be added to monitor ambient temperature and humidity. Event logging tracks UPS or ATS PDU events and input/output status records. Automated event notifications via email, SMS text, SNMP Traps, and Syslog server can be setup to insure real time status of changes. Firmware can be updated by users to insure you have the latest features and
- About Us
- Payment Info
- Shipping Info
- Customer Support
- response

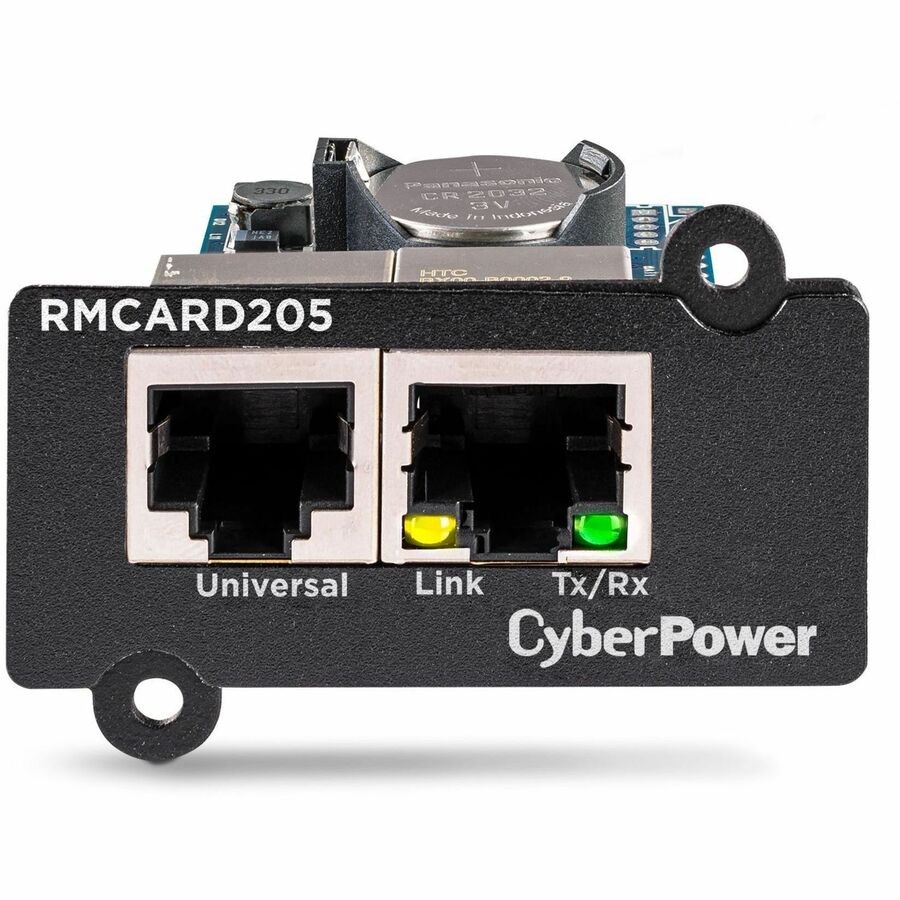

CyberPower RMCARD205 UPS & ATS PDU Remote Management Card Brand: Cyberpower UPC: 0649532619375 Mfr Part #: RMCARD205
General InformationA full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors and controls select CyberPower UPS systems and ATS PDUs via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD205 provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel® Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.
Technical InformationManagement:Remote (RJ-45):YesNumber of Network (RJ-45) Ports:2
Network & CommunicationEthernet Technology:Fast Ethernet
Physical CharacteristicsColor Family:BlackProduct (Approximate):1.28 oz
RMCARD205 UPS & ATS PDU Remote Management Card - SNMP/HTTP/NMS/Enviro Port Quick Start Guide Spare Jumper Additional Information:
Data Link Protocol : Ethernet 100Base-TX, Ethernet 10Base-TUnversal Port : Optional ENVIROSENSORPhysical Dimensions - (WxHxD) (cm) : 5.41 x 3.61 x 7.62 (cm)Physical Dimensions - (WxHxD) (in) : 2.13 x 1.42 x 3 (in)Physical Dimensions - (WxHxD) (mm) : 54 x 36 x 76 (mm)Weight (kg) : 0.04Weight (lb) : 0.08Shipping Dimensions - (WxHxD) (cm) : 5.84 x 16.51 x 16.76 (cm)Shipping - Dimensions (WxHxD, in) : 2.3 x 6.5 x 6.6 (in)Shipping - Dimensions (WxHxD, mm) : 58.42 x 165.1 x 167.64 (mm)Shipping - Weight (kg) : 0.26Shipping - Weight (lb) : 0.57USB Charge Port : NoNetwork Protection RJ45 : Ethernet RJ45Network Protection RJ45 : Ethernet RJ45LED Indicators : Tx/RxCisco EnergyWise : v1.2.0 and newerDHCP : RFC 2131DNS : RFC 1035FTP : RFC 959HTTP : v1.1: RFC 2616HTTPS : RFC 2818LDAP : v3: RFC 2251LDAPS : v3: RFC 4513MIB : RFC 1213, RFC 1628NTP : RFC 958RADIUS : RFC 2865SCP : v2: RFC 4253, RFC 4254SMTP : RFC 2821SMTPS : RFC 3207SNMP : v1: RFC 1155, RFC 1156, RFC 1157SSH : v2: RFC 4253, RFC 4254SSL : v3: RFC 6101SysLog : RFC 5424TCP/IP : v4: RFC 791Telnet : RFC 854TLS : v1.1: RFC 4346Color : BlackOperating Elevation : 0 - 10000 ft (0 - 3048 m)Operating Relative Humidity : 0 - 90 % (non-condensing)Operating Temperature : 32 - 104 °F (0 - 40 °C)Storage Elevation : 0 - 50000 ft (0 - 15239 m)Storage Relative Humidity : 0 - 95% (non-condensing)Storage Temperature : 14 - 122 °F (-10 - 50 °C)Environmental : RoHS CompliantSafety : FCC DoC Class A|CEExtended Warranty Option : WEXT5YR-ACC1AProduct Warranty : 3 Year Limited WarrantyCertifications & Standards:
Country of Origin:ChinaEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)
OL1000RTXL2U OL1500RTXL2U OL1500RTXL2UN OL2200RTXL2U OL3000RTXL2U OL3000RTXL2UHV PR500LCDRT1U PR750LCD PR1500LCDN PR750LCDRM1U PR750LCDRT1U PR750LCDRTXL2U PR1000LCD PR1000LCDRM1U PR1000LCDRT1U PR1000LCDRT2U PR1000LCDRTXL2U PR1000LCDRTXL2Ua PR1500LCD PR1500LCDRT2U PR1500LCDRT2UN PR1500LCDRTXL2U PR1500LCDRTXL2UN PR1500LCDRTXL2Ua PR2200LCD PR2200LCDSL PR2200LCDRT2U PR2200LCDRT2UN PR2200LCDRTXL2U PR3000LCD PR3000LCDSL PR3000LCDRT2U PR3000LCDRTXL2U PR3000LCDRTXL2UN PR5000LCDRTXL5U PR6000LCDRTXL5U OR500LCDRM1U OR700LCDRM1U OR1000LCDRM1U OR1500LCDRM1U OR1500LCDRM2U OR1500LCDRT2U OR1500LCDRTXL2U OR2200LCDRM2U OR2200LCDRT2U OR2200LCDRTXL2U CPS1500AVR PDU15M10AT PDU20M10AT PDU20MT10AT PDU30MT17AT PDU15MHVIEC12AT PDU20MHVT10AT PDU20MHVIEC10AT PDU30MHVT19AT PDU15SW10ATNET PDU20SW10ATNET PDU20SWT10ATNET PDU30SWT17ATNET PDU15SWHVIEC12ATNET PDU20SWHVT10ATNET PDU20SWHVIEC10ATNET PDU30SWHVT19ATNET Store Policies
