- DB9 connector is used to connect the interface with serial port network function and serial port data transmission.
- DB9 serial expansion cable is used for any device that uses a DB9 connector.
- It adopts all copper 26awg wire gauge double screen wire,with strong anti-interference and high fidelity design to ensure transmission effect, strong signal transmission, internal insulation and more stable transmission.
- DB9 female connector interface is nickel plated and PIN gold plated 3U. The plug is treated with fine nickel plating, which has the characteristics of oxidation resistance, wear resistance, corrosion resistance and durability. It can effectively reduce the attenuation value and make the transmission more stable.

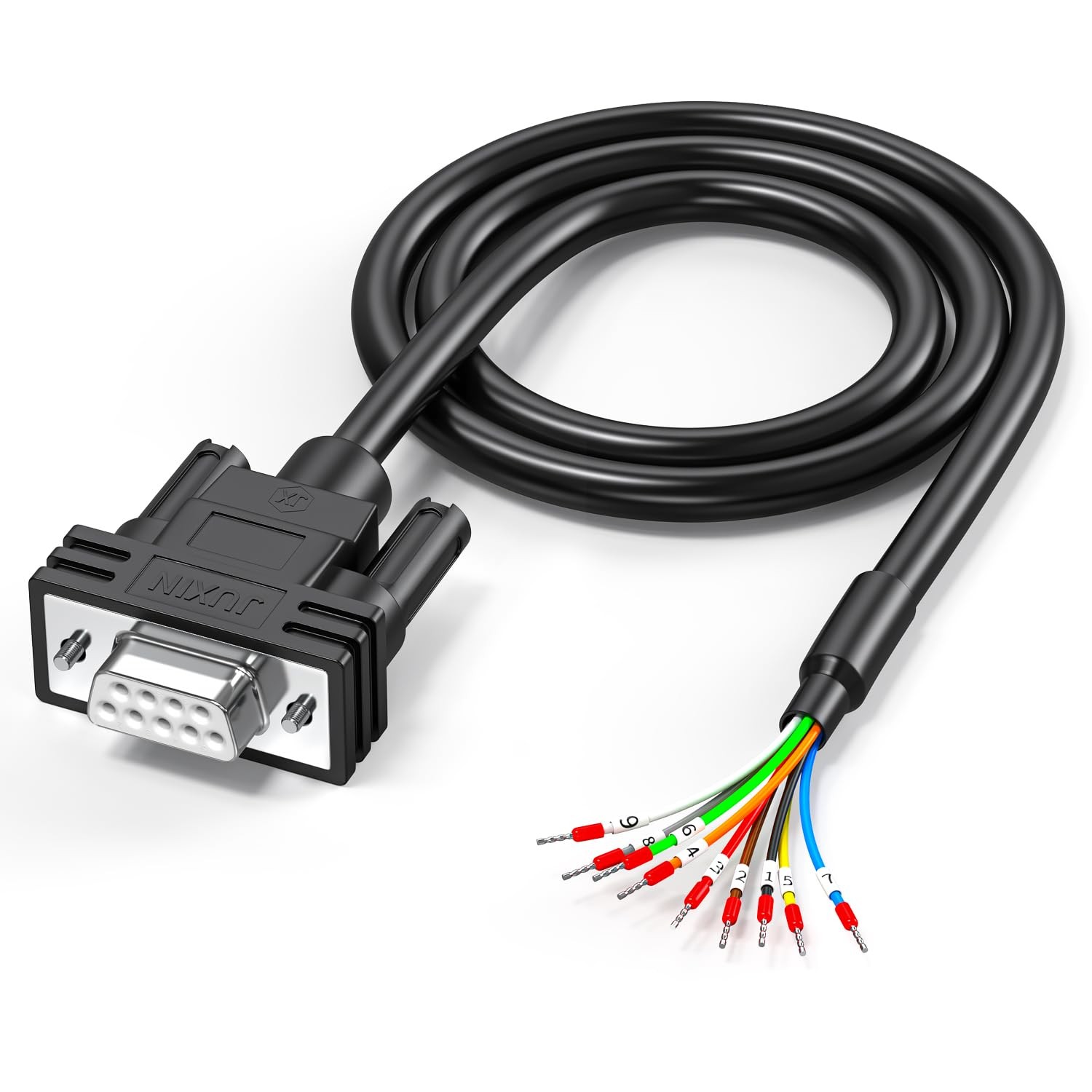

- Cable : DB9 female to Bare Wire with Cable Marker
- Cable Marker: Color multi-core wire corresponds to numbers 1-9 for each core
- Length: 3.3FT
- Wire gauge: 26AWG
- current: 2A, instantaneous maximum current 5A
- Shielding: Double layer shielding (metal braided mesh+aluminum foil shielding+ground wire)
- Connector : D-SUB 9 PIN ,Gold plated 3U
- Cable Outside Diameter: 6.0mm (0.24 inch)
- Compatibility: PLC equipment, Automation equipment, UPS power supply, equipment, Industrial robots, etc,
【Easy & Secure Connections】:5FT DB9 Female adapter to bare wire with Cable Marker,Each wires end is equipped with red cold crimping terminals（Red copper material）and Cable Marker, which are firmly crimped and do not fall off.
【Clear Color-Coded Wiring】: 1-black, 2-brown, 3-red, 4-orange, 5-yellow, 6-green, 7-blue, 8-gray, 9-white（D-SUB 9 PIN Wires Cable Marker sequence）
【Premium Conductivity & Durability】:DB9-RS232 Serial connector All pins are copper core gold-plated connectors, with good plug resistance and .
【Anti-Interference Shielding】: 9 wire cores are made of 26AWG tinned copper, with a diameter of 0.95mm per core and a cable outer diameter of 6.0mm.wrapped with aluminum foil+high-density woven mesh to form double-layer shielding, with strong anti-interference ability.
【 Device Compatibility】: RS232 Serial extension cable can be used for automatic control equipment, PDA, modem, PLC, POS, industrial control equipment, cash register, tax control computer, computer, etc.
