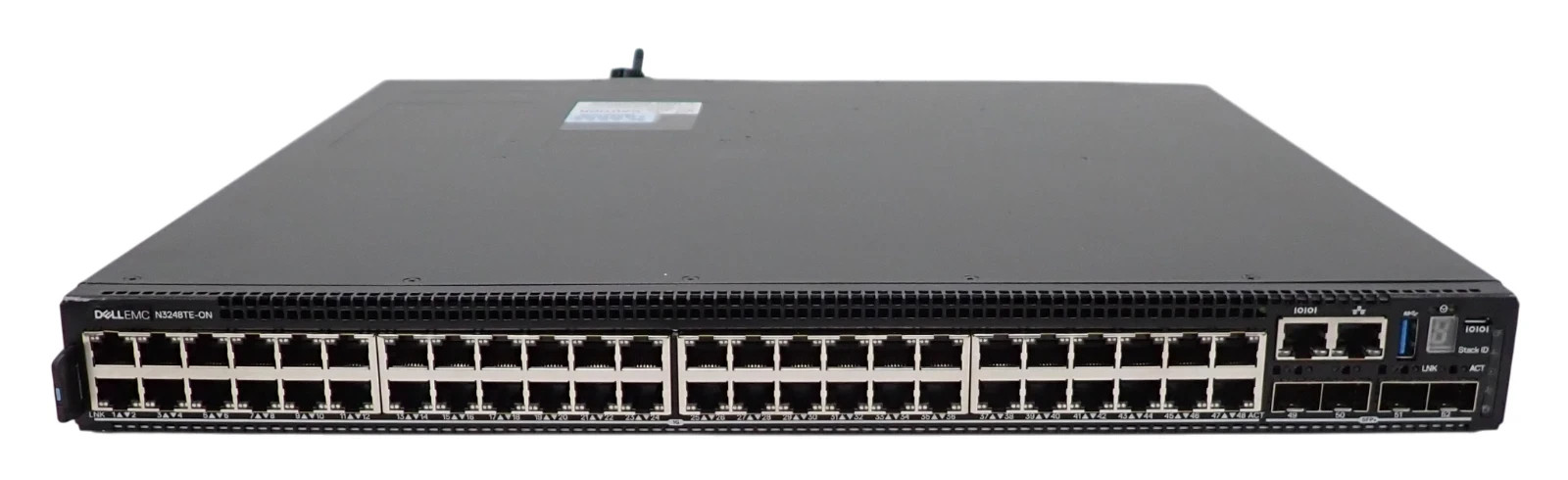

2 Year Warranty Fast Worldwide Delivery Trusted Seller In Stock & Ready to Ship Dell EMC PowerSwitch N3248TE-ON 48x 1G RJ45 4x SFP+ 2x QSFP28 RA F2B Switch OS10 What's Included 1 x Dell EMC PowerSwitch N3248TE-ON 48x 1G RJ45 4x SFP+ 2x QSFP28 RA F2B Switch OS10 - Refurbished
1 x Power Supply
3 x Fan Modules
Specification Delivery Returns Specifications
- Manufacturer: Dell
- Series: PowerSwitch N3200-ON
- Model: N3248TE-ON
- Part Number: N3248TE-ON
- Form Factor: 1U Rackmount
- Operating System: Dell OS10
Ports
- 48 x RJ45 10/100/1000Mb Ethernet Ports
- 4 x 10GbE SFP+ Ports
- 2 x 100GbE QSFP28 Ports
- 1 x 10/100/1000BASE-T Out-of-Band Management Port
- 1 x USB Type-A Port
- 1 x MicroUSB Type-B Console Port
- 1 x RJ45 Console Capacity: 576Gbps Full Duplex
- Forwarding Rate: 800Mpps
- Switching Architecture: Non-blocking, Store-and-Forward
- MAC Address Entries: Up to 55,000
- Maximum VLANs: 4,096
- Jumbo Frames: Up to 9,216 Bytes
Networking Features
- Layer 2 Switching
- Layer 3 Aggregation / LACP
- Private VLAN / Private VLAN Edge
- 802.1Q VLAN
- Port Mirroring
- Broadcast Storm Control
- Energy-Efficient SmartFabric OS10
- OpenConfig gNMI
- Industry-Standard CLI
- AAA Supply: 550W AC
- PSU: 1 x Internal PSU Installed
- Second PSU: Optional for Redundancy
- PSU Type: Hot-Swappable
- Power Efficiency: 80PLUS Platinum
- Maximum Power Consumption: 1.71" / 43.5mm
- Width: 17.09" / 434mm
- Depth: 15.75" / 400mm
- Weight: Approx. 6.99kg with 1 PSU
- Rack Height: 1U
Bootlog:
show version
Dell SmartFabric OS10 Enterprise
Copyright (c) 1999-2024 by Dell Inc. All Rights Reserved.
OS Version: 10.5.5.11
Build Version: 10.5.5.11.268
Build Time: 2024-07-22T13:34:26+0000
System Type: N3248TE-ON
Architecture: x86_64
Up Time: 00:10:22OS10# show inventory
Product : N3248TE-ON
Description : N3248TE-ON 48x1GbE Copper, 4x10G SFP+, 2x100GbE QSFP28 Interface Module
Software version : 10.5.5.11
Product Base :
Product Serial Number :
Product Part Number :Unit Type Part Number Rev Piece Part ID Svc Tag Exprs Svc 1 N3248TE-ON 05WPCH A04 TW-05WPCH-DNT00-48U-0094 D4M9BV3 285 774 219 03
1 N3248TE-ON-PWR-1-AC-R 0CRMRT A01 CN-0CRMRT-DED00-44U-03WR
1 N3248TE-ON-FANTRAY-1-R 08YXH5 A00 TW-08YXH5-DNT00-48Q-0127
1 N3248TE-ON-FANTRAY-2-R 08YXH5 A00 TW-08YXH5-DNT00-48Q-0128
1 N3248TE-ON-FANTRAY-3-R 08YXH5 A00 TW-08YXH5-DNT00-48Q-0129OS10# show environmentUnit State up 74Thermal sensors
Unit Sensor-Id Sensor-name 1 CPU Ambient temp sensor 34
1 2 FAN Ambient temp sensor 29
1 3 Near CPU Ambient temp sensor 33
1 4 Near NPU Ambient temp sensor 47
1 5 PSU Ambient temp sensor 36
1 6 FrontEnd Ambient temp sensor 43
1 7 NPU temp sensor 74OS10# show license statusSystem Name : Dell
Product Name : N3248TE-ON
Hardware Version : A04
Platform Name : x86_64-dellemc_n3248te_c3338-r0
PPID : TW05WPCHDNT0048U0094
Service Tag : D4M9BV3
Product Base :
Product Serial Number:
Product Part Number :
License Details
----------------
Software : OS10-Enterprise
Version : 10.5.5.11
License Type : PERPETUAL
License Duration: Unlimited
License Status : Active
License location:
