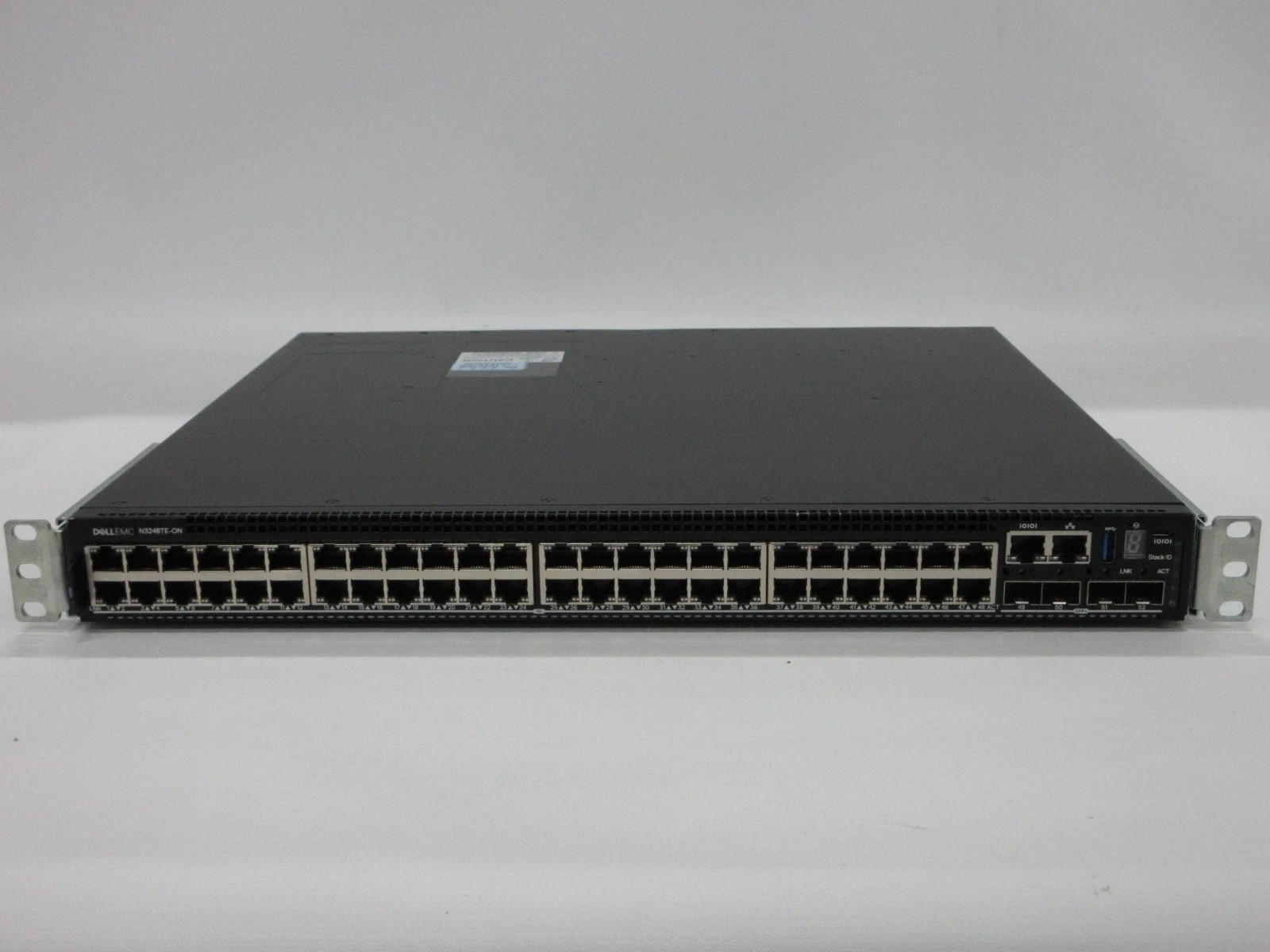

Dell EMC PowerSwitch N3248TE-ON 48x 1G RJ45 4x SFP+ 2x QSFP28 RA Switch OS6Model:N3248TE-ON
In Good ConditionFull Working OrderTested2 Year WarrantyRear to Front AirflowOS6 6.8.1.9 Pre-Installed
Included:

• 1 xDell EMC PowerSwitch N3248TE-ON 48x 1G RJ45 4x SFP+ 2x QSFP28 RA Switch OS6
• 2 x 550W Power Supplies
• 3 x Fan Modules

Description:
The N3248TE-ON offers power-efficient and resilient 1GbEswitching solution for advanced Layer 3 distribution withintegrated 10GbE SFP+ and 100GbE QSFP28 ports. TheN3248TE-ON has high-performance capabilities and wirespeed performance utilizing a non-blocking architecture toeasily handle unexpected traffic loads. Use dual internalhot-swappable 80PLUS Platinum certified power suppliesfor high availability and power efficiency.
Hardware, performance and efficiency

• 1RU switch with 48 line-rate RJ45 1GbE ports, and fourintegrated 10GbE SFP+ ports.
• Two 100GbE QSFP28 integrated rear ports.
• Add a second 80PLUS Platinum certified hotswappable internal power supply.
• Variable speed fan operation helps decrease coolingand power costs.
• Energy-efficient Ethernet and lower power PHYsreduce power to inactive ports and idle links, providingenergy savings from the power cord to the port.
• Dell Fresh Air compliance for operation in environmentsup to 113°F (45°C) reduces cooling costs.

Hardware specificationsPhysical

• 48 RJ45 ports of 1G, 4 SFP+ ports of 10Gand 2 QSFP28 ports of 100G
• Out-of-band management port(10/100/1000BASE-T)
• USB (Type A) port for configuration via USBflash drive
• MicroUSB (Type B) console port (MicroUSB toUSB connector cable included)
• RJ45 console port with RS232 signaling(RJ-45 to female DB-9 connector cableincluded)
• Auto-negotiation for speed and flow controlAuto-MDI/MDIX, port mirroring
• Flow-based port mirroring
• Broadcast storm control
• Energy-Efficient Ethernet per port settings
• Redundant variable speed fans
• Air flow: Normal or Reverse
• Power supply:550W 80PLUS. Optional 2nd PSUfor reduncancy.
• Dual firmware images on-board
• Switching engine model: Store and forward

Chassis

• Size (1RU, H x W x D):1.71 in x 17.09 in x 15.75 in (power supply/fan tray handle adds add’l 1.18 in)
• Approximate weight(Switch with 1 PSU rack mounting kit

Environmental

• Power supply efficiency:88% or better in all operating modes
• Max. thermal output (BTU/hr):723
• Power consumption max (watts):212
• Operating temperature: 32° to 113°F(0° to 45°C)
• Operating relative humidity: 95%
• Storage temperature: –40° to 158°F(–40° to 70°C)
• Storage relative humidity: 95%

Performance

• CPU memory: 4GB
• SSD: 32GB
• Packet buffer memory: 8MB
• Switch fabric capacity rate:800Mpps
• Line-rate Layer 2 switching: All (non-blocking)
• Line-rate Layer 3 routing: All (non-blocking)
