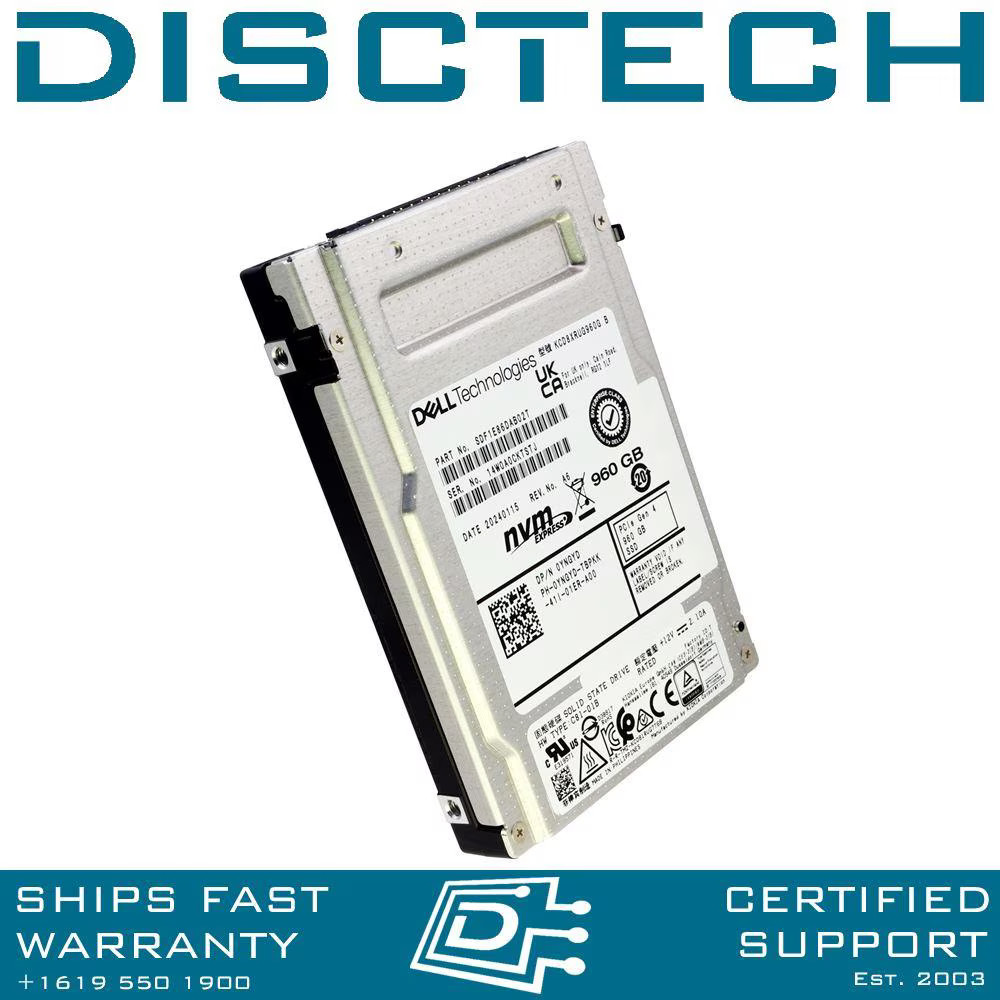

Dell YNGYD Kioxia KCD8XRUG960G CD8-R Series 960GB 2.5" TLC PCIe 4.0 RI Read Intensive NVMe 1.4 U.2 SSD - Brand NewBrand NewDell YNGYD Kioxia KCD8XRUG960G CD8-R Series 960GB 2.5 TLC PCIe 4.0 RI Read Intensive NVMe 1.4 U.2 SSD - Brand NewData Center NVMe™ Read Intensive SSDKIOXIA CD8-R Series

The KIOXIA CD8-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization.

Built with a PCIe® 4.0 (16 GT/s x4) interface, the CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write). Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB, making them well-suited for hyperscale data center applications.

Key Features

• PCIe® 4.0, NVMe™ 1.4 specification compliant
• Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
• Form factor: 2.5-inch, 15mm thickness
• Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
• Single-port design, optimized for data center class workloads
• Consistent performance and reliability for demanding 24x7 environments
• Designed for high-density storage deployments
• Power loss protection (PLP) and end-to-end data correction
• Security options: SIE, SED[1][2][3][4]

Key and big data analytics

Online transaction processing (OLTP) (transactional and relational databases)

Virtualized environments

Streaming media and content delivery networks

Specification960 GBBase Model NumberKCD81RUG960GSIE Model NumberKCD8XRUG960GSED Model NumberKCD8DRUG960GCapacity960 GBForm Factor2.5-inch, 15mm thicknessInterfacePCIe® 4.0, NVMe™ 1.4Maximum Interface Speed64 GT/s (PCIe® Gen4 x4)Flash Memory TypeBiCS FLASH™ TLCSustained 128 KiB Sequential Read    7,200 MB/sSustained 128 KiB Sequential Write    1,800 MB/sSustained 4 KiB Random Read    1,000K IOPSSustained 4 KiB Random Write80K IOPSPower Consumption (Active)11 W typ.Power Consumption (Ready)5 W typ.Supply Voltage12 V ± 10 %, 3.3 V ± 15 %MTTF2,500,000 hoursWarranty5 yearsDWPD1Thickness15 mm +0 / -0.5 mmWidth69.85 mm ± 0.25 mmLength100.45 mm MaxWeight130 g MaxTemperature (Operating)0 ℃ to 75 Part Numbers: YNGYD 0YNGYD
