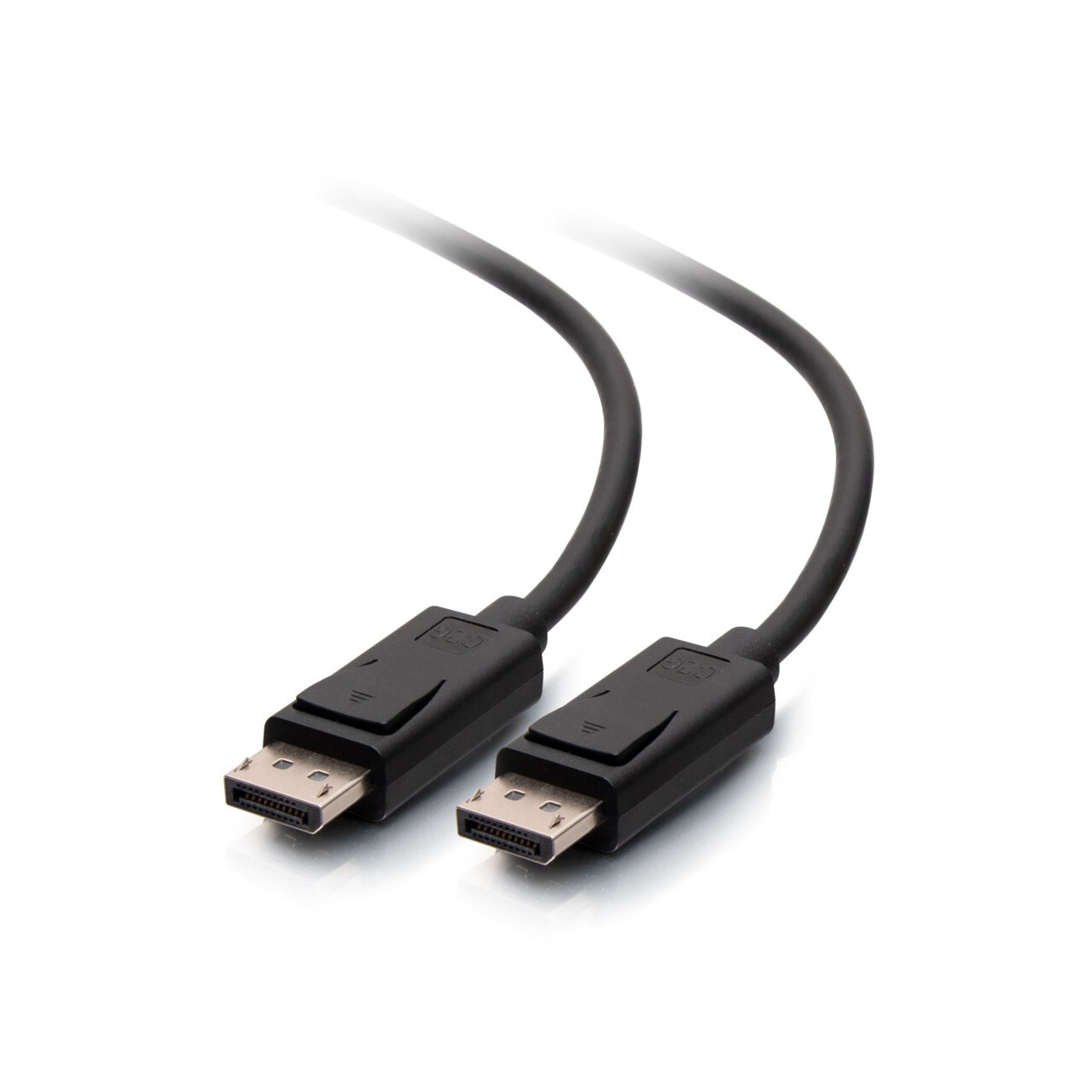

DisplayPort™ Cable with Latches 4K 60Hz UHD M/MDisplayPort™ Cable with Latches 4K 60Hz UHD M/M - Black SeriesThis cable is an ideal solution for connecting the DisplayPort output of a laptop to a computer monitor which accepts a DisplayPort input. This cable carries a digital audio/video signal and the connectors feature latches which secure the cable in the port. Support of a High Bit Rate (HBR) bandwidth means that this cable can carry up to a 4K resolution at 60Hz. This cable meets the requirements of high performance applications.Connector 1: (1) DisplayPort MaleConnector 2: (1) DisplayPort MaleFeatures and Benefits

Directly connect a DisplayPort output to a DisplayPort input

• Carries a digital audio/video signal

• Supports a High Bit Rate (HBR) bandwidth and resolutions up to a 4K 60Hz

Specifications

Voltage Rating: 30V

• Conductor Resistance: @ 20°C max

28AWG: 237.25Ω/km

30AWG: 376.96Ω/km

• 32AWG: 588.85Ω/km

Insulation Resistance: 10M Ω/km min at 20°C DC 500V

• Time Delay: 5.2ns/m (max)

Minimum Bend Radius: 73mm

• Tensile Strength: Unaged: 1500 PSI min Aged: 70%

• Elongation: Unaged: 100% min, Aged; 65%Approvals: CE

• Jacket: PVC 0.51mm Min AVG

• Connectors: DisplayPort 20P male, Solder Type, Contact: Gold Flash Plated; Housing: Black LCP; Shell: Nickel Plated (with Latched)

CG54404-5; CG54424-5:

28AWG

• OD: 7.3±15; 0.287mm

• 30AWG

• OD: 6.5±15; 0.256mm

• CG54400-2; CG54423:

32AWG

• OD: 6.0±15; 0.236mm

• Product is CE Marked and Conforms to 2011/65/EU ROHS 2
